Oil Pan, Engine

OIL PAN





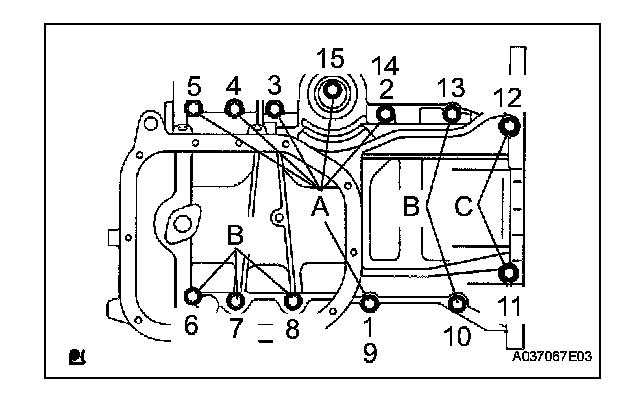

Using several steps, install and tighten the 13 bolts uniformly in the sequence shown in the illustration.
Torque 24 N*m (245 kgf*cm, 18 ft.*lbf)

OIL PAN NO. 2
Install oil pan No. 2 with the 9 bolts and the 2 nuts.
Torque 9.0 N*m (92 kgf*cm, 80 in.*lbf)
