System Description

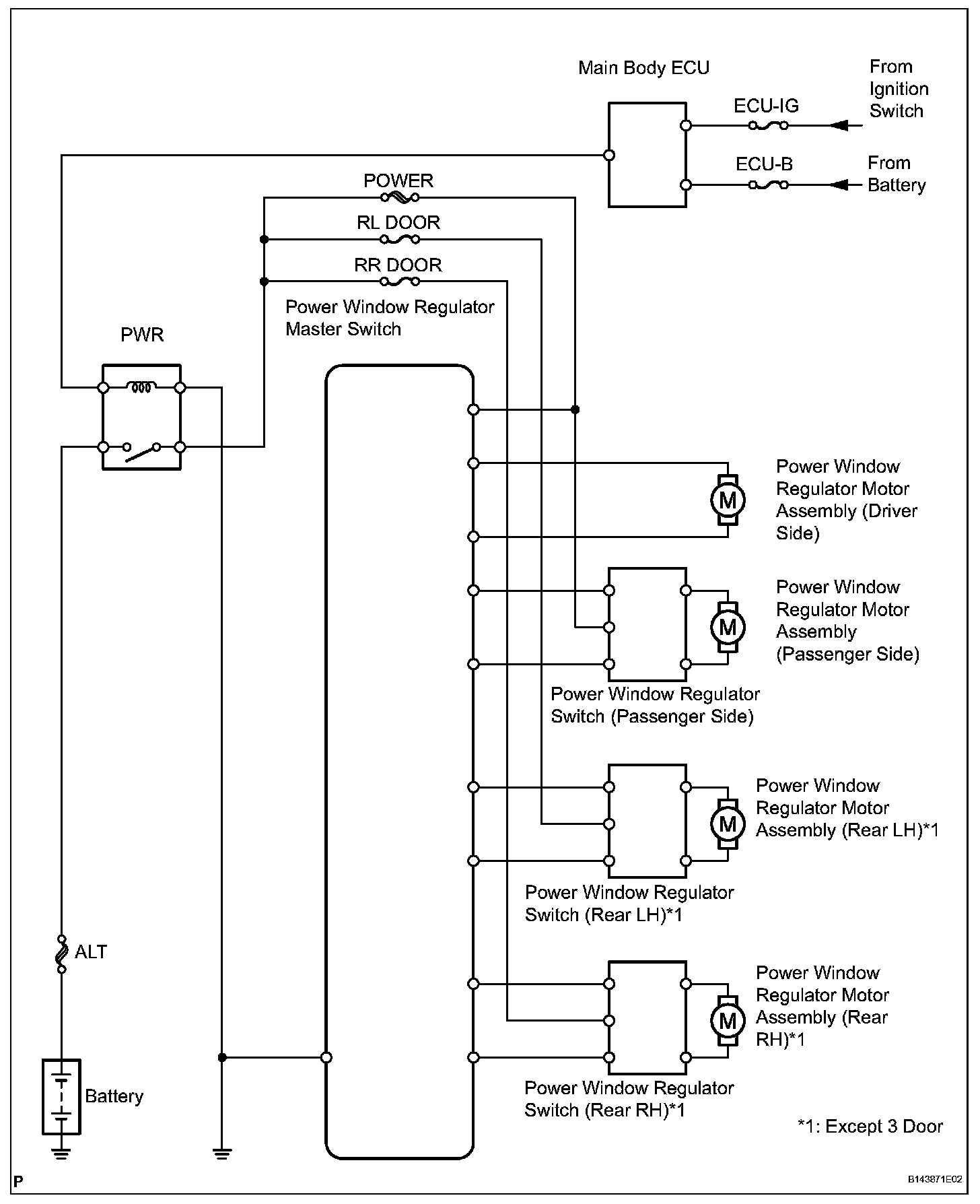

System Diagram:





SYSTEM DESCRIPTION

1. POWER WINDOW CONTROL SYSTEM DESCRIPTION
The power window control system controls the power window UP / DOWN function using the regulator motors.

3 Door:
The main controls of this system are: the power window regulator master switch, which is built into the driver side door, and the power window regulator switch, which is built into the passenger side door. Pressing the regulator switch or either of the switches on the master switch transmits an UP / DOWN signal to the corresponding power window regulator motor.

Except 3 door:
The main controls of this system are: the power window regulator master switch, which is built into the driver side door, and the power window regulator switches, which are built into the passenger side door and rear doors. Pressing the regulator switch or any of the switches on the master switch transmits an UP / DOWN signal to the corresponding power window regulator motor.

2. FUNCTION OF MAIN COMPONENT

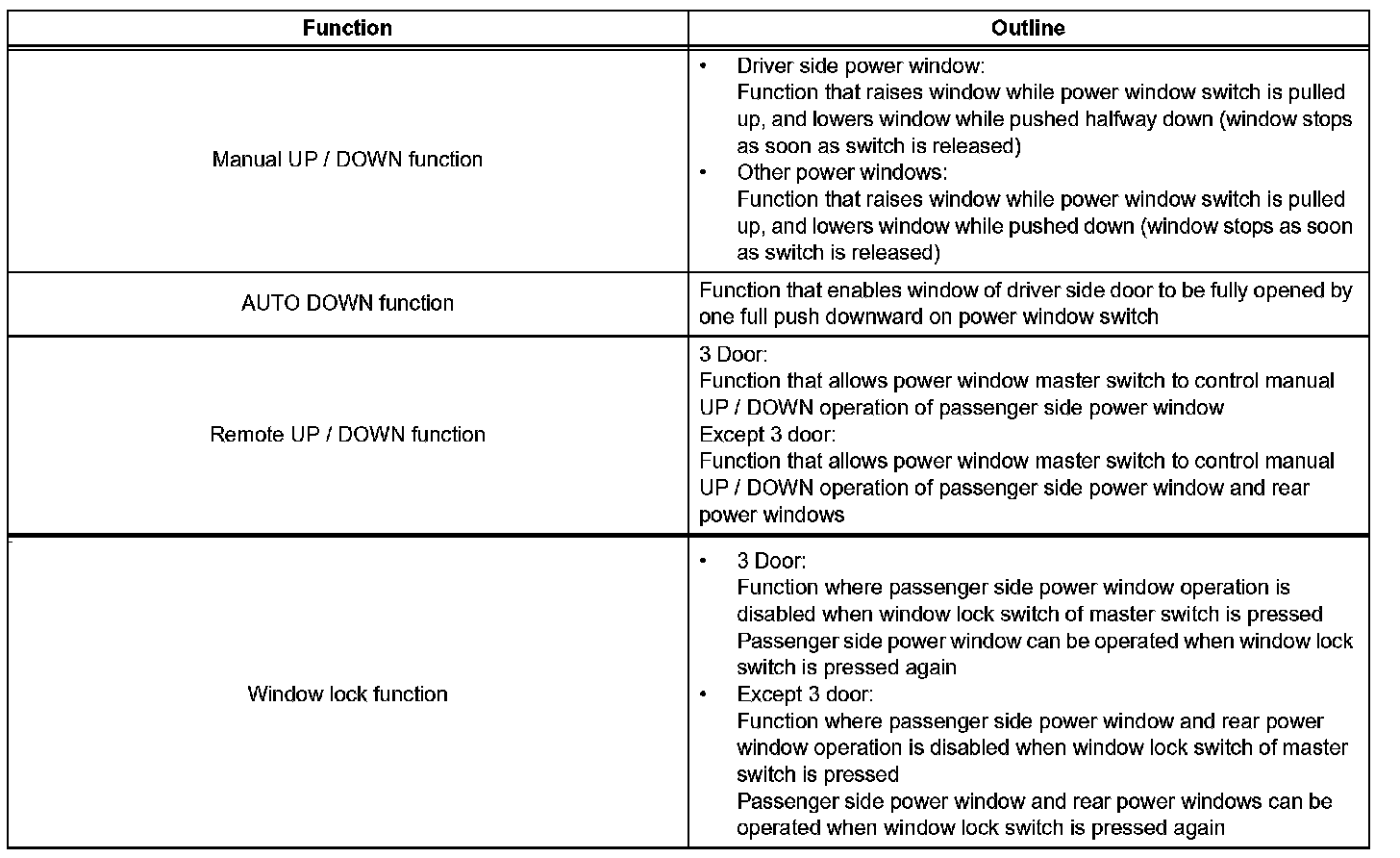

3. SYSTEM FUNCTION
The power window control system has the following functions.
