Wiper Switch (For Hatchback)

Wiper Switch (for Hatchback):




WIPER SWITCH (For Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

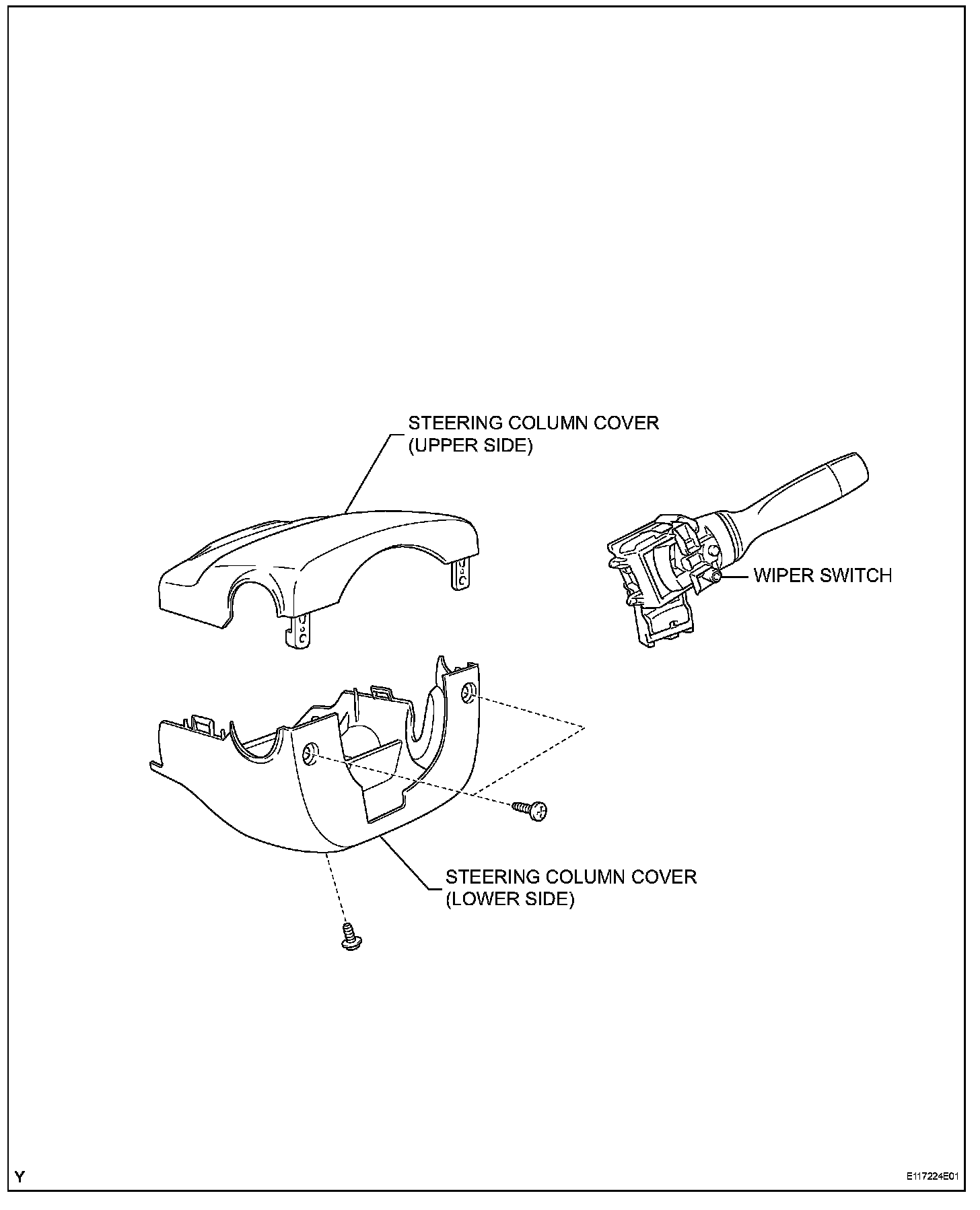

2. REMOVE STEERING COLUMN COVER




3. REMOVE WIPER SWITCH
a. Disconnect the 2 connectors.
b. Using a screwdriver with its tip wrapped in protective tape disengage the claw and remove the wiper switch.

NOTE: Do not press the claw too hard, as it may be damaged.

INSTALLATION




1. INSTALL WIPER SWITCH
a. Engage the claw and install the windshield wiper switch.
b. Connect the 2 connectors.

2. INSTALL STEERING COLUMN COVER
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
