Installation









A750E AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

A750E AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

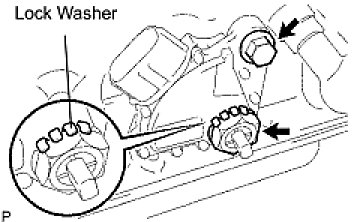

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY






(a) Install the park/neutral position switch with the bolt.
Torque: 13 Nm (130 kgf-cm, 10 ft-lbf)
(b) Install a new lock washer and the nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)
(c) Bend the claws on the lock washer to stake the nut.
(d) Adjust the park/neutral position switch Adjustments.
2. CONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
3. INSTALL REAR ENGINE UNDER COVER ASSEMBLY
4. INSTALL NO.1 ENGINE UNDER COVER SUB-ASSEMBLY
5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
HINT: Adjustments
