Oil Pan, Engine

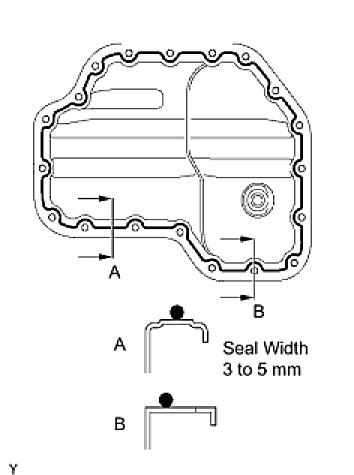

OIL PAN SUB-ASSEMBLYUniformly tighten the bolts and nuts diagonally.

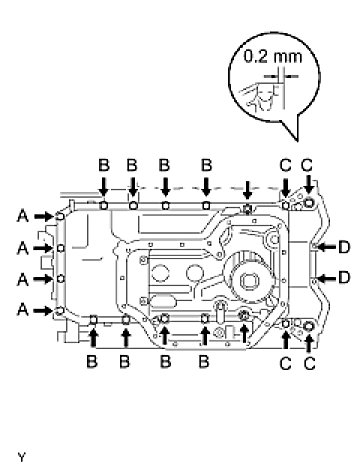

For bolts A and D - Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
For bolts B, C and nut - Torque: 28 Nm (286 kgf-cm, 21 ft-lbf)
NO. 2 OIL PAN SUB-ASSEMBLYInstall the No. 2 oil pan with the 17 bolts and 2 nuts. Uniformly tighten the bolts and nuts in several steps.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
