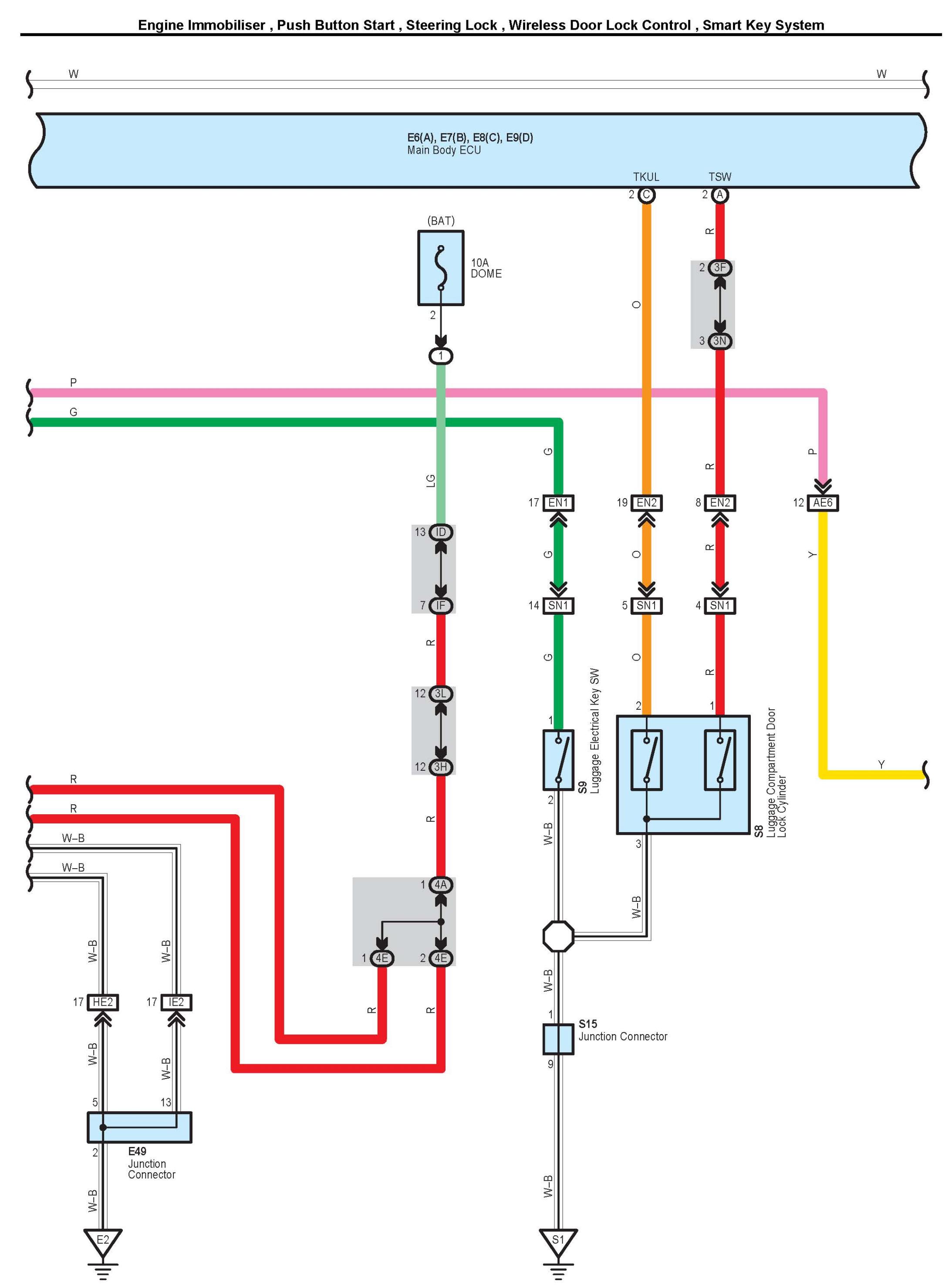

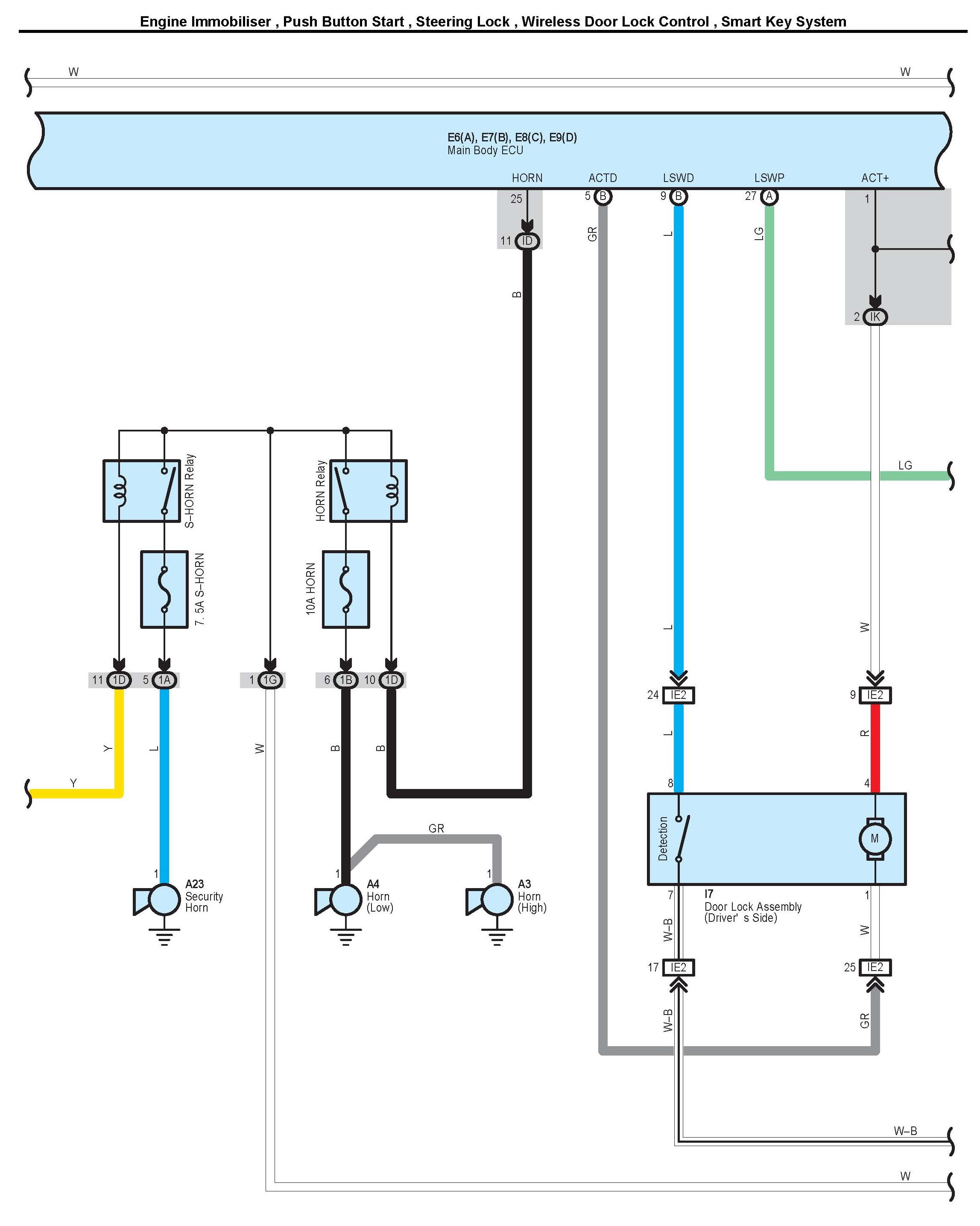

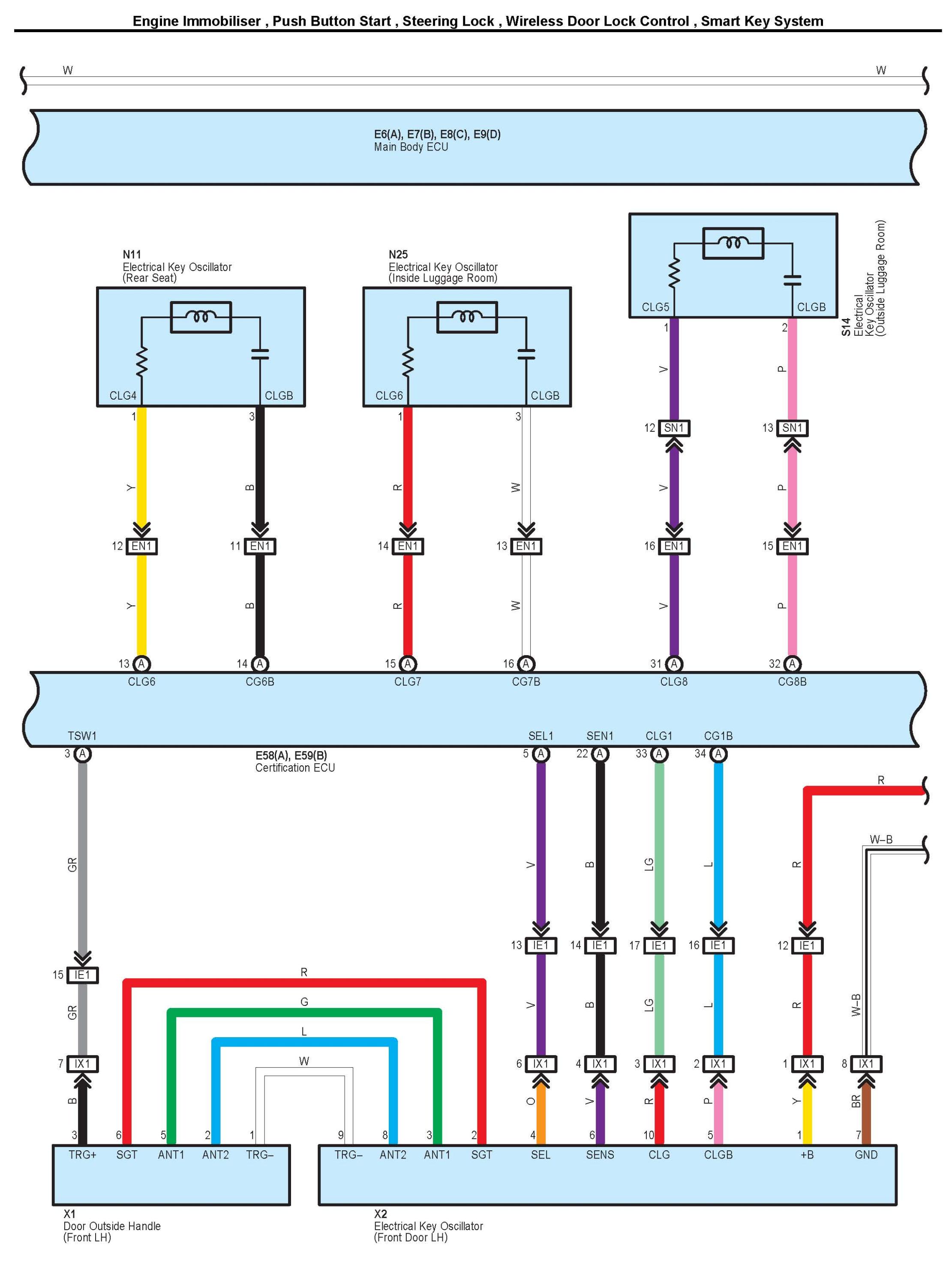

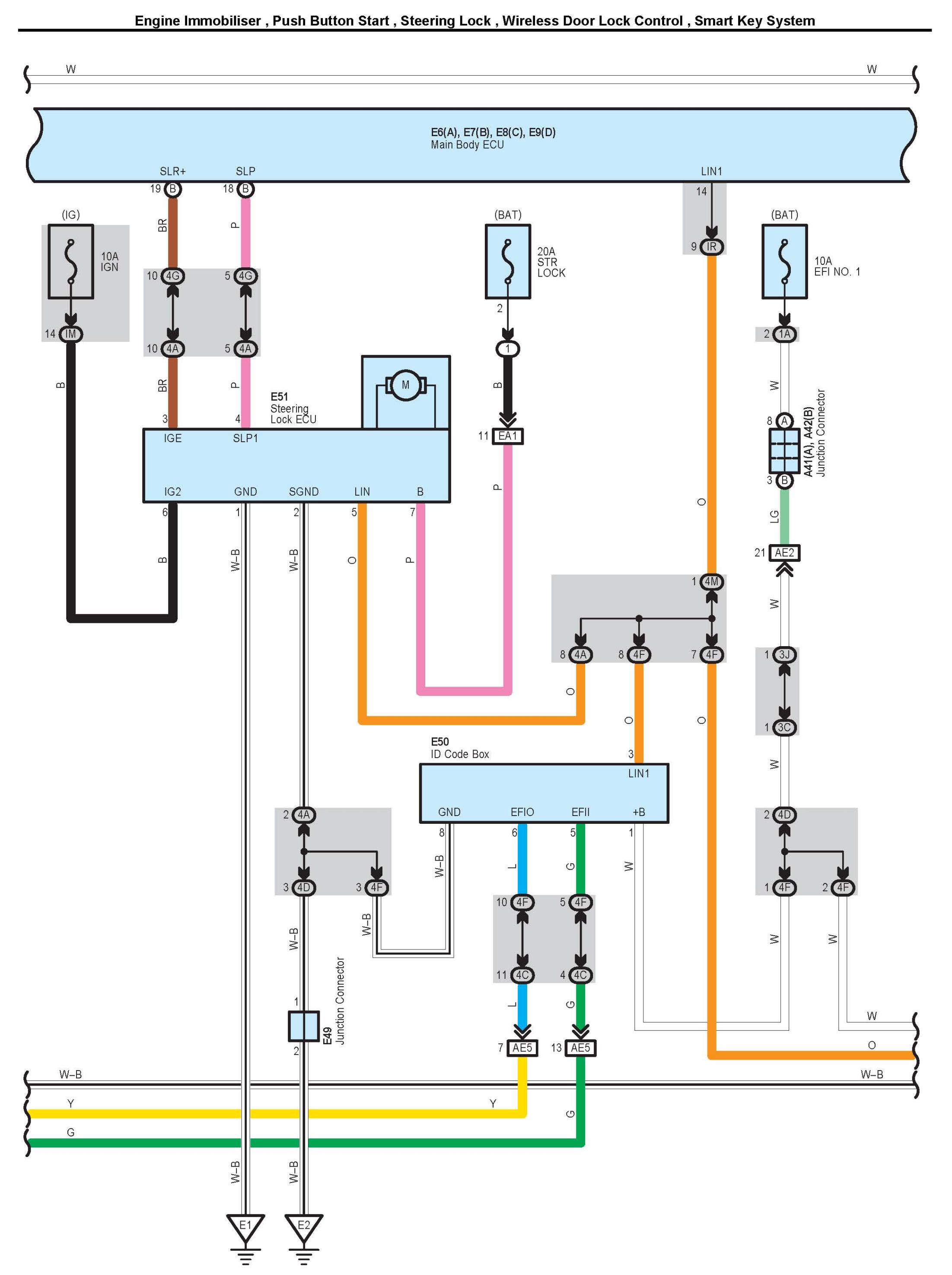

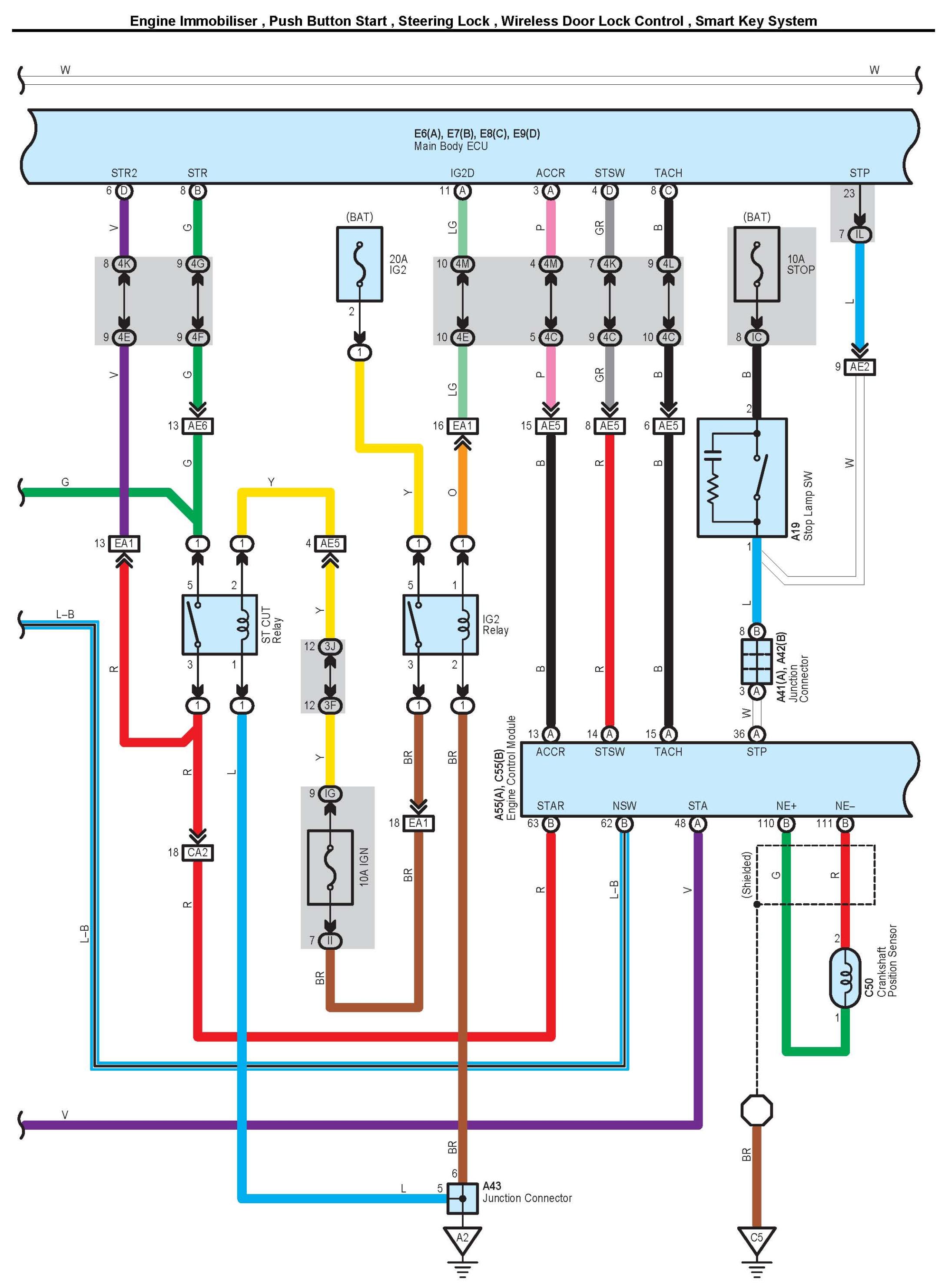

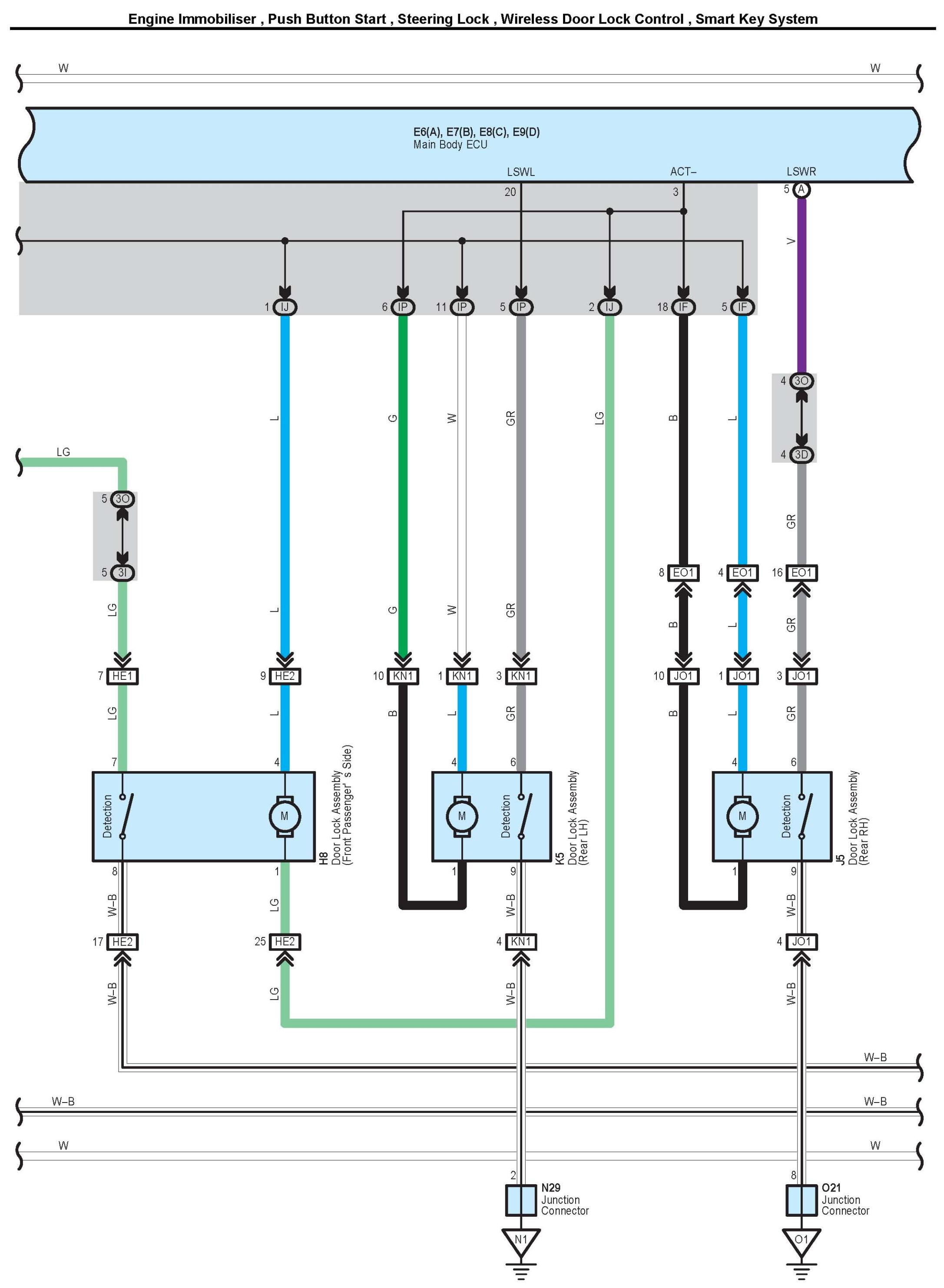

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System

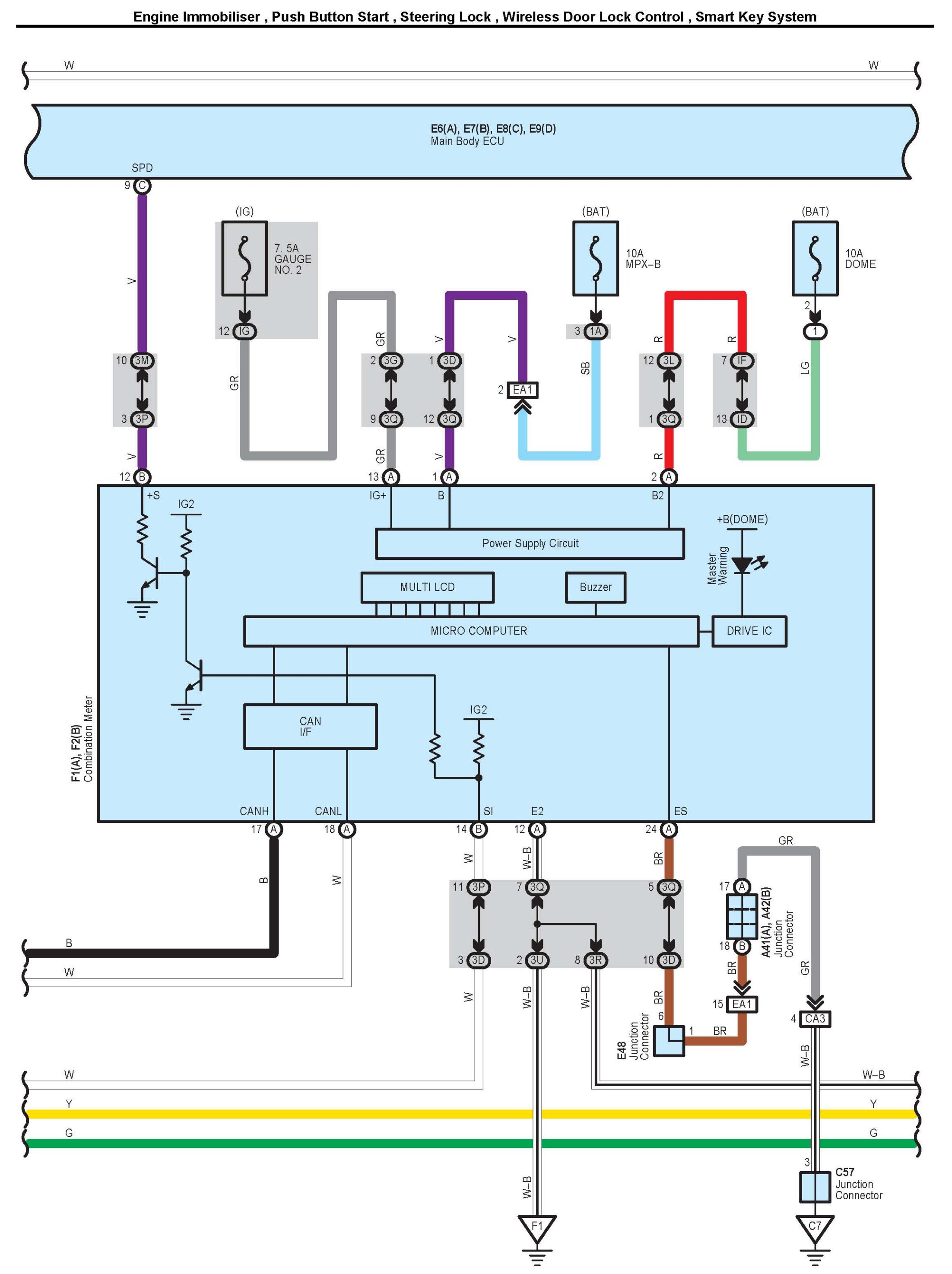

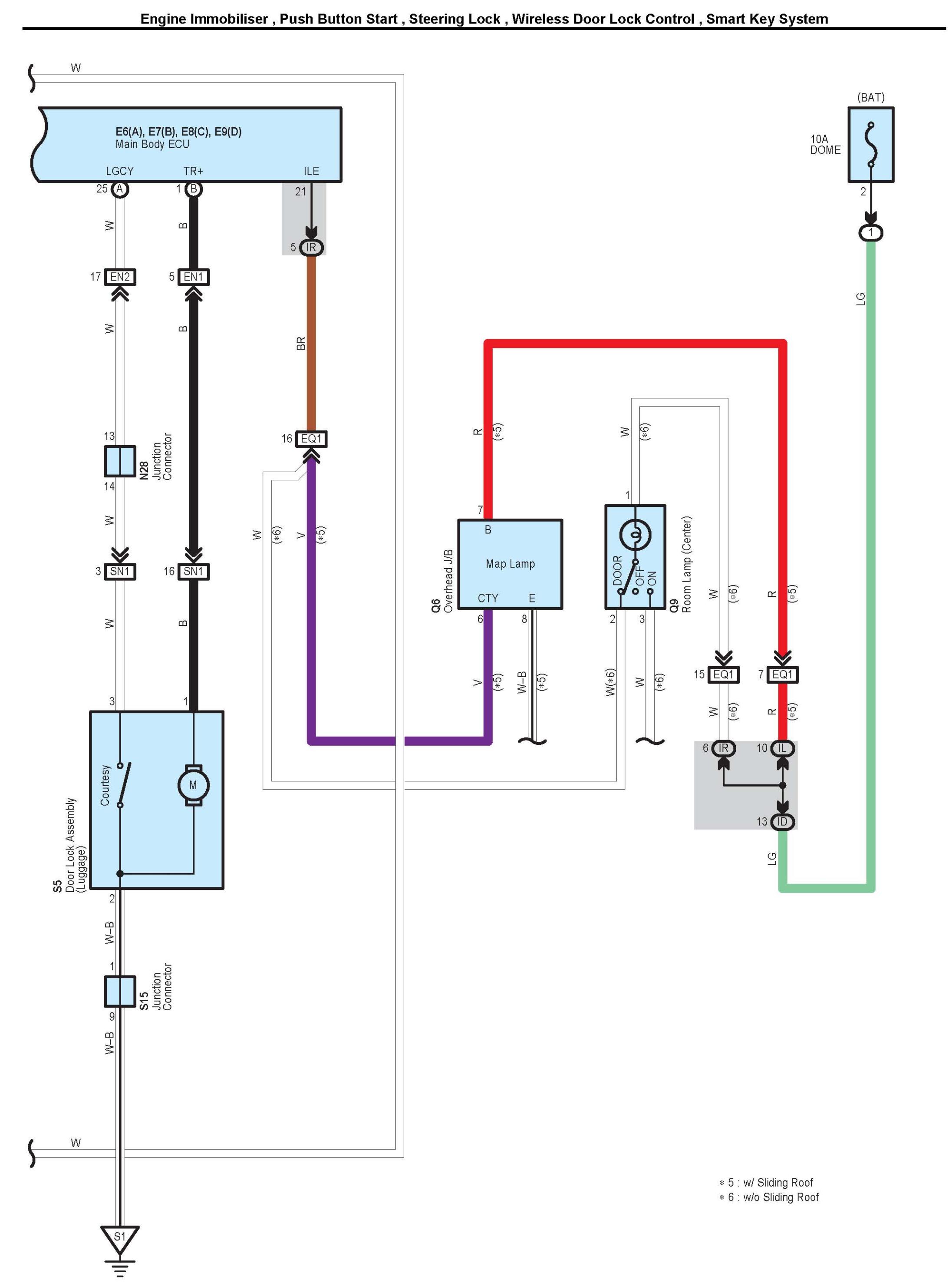

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 1:

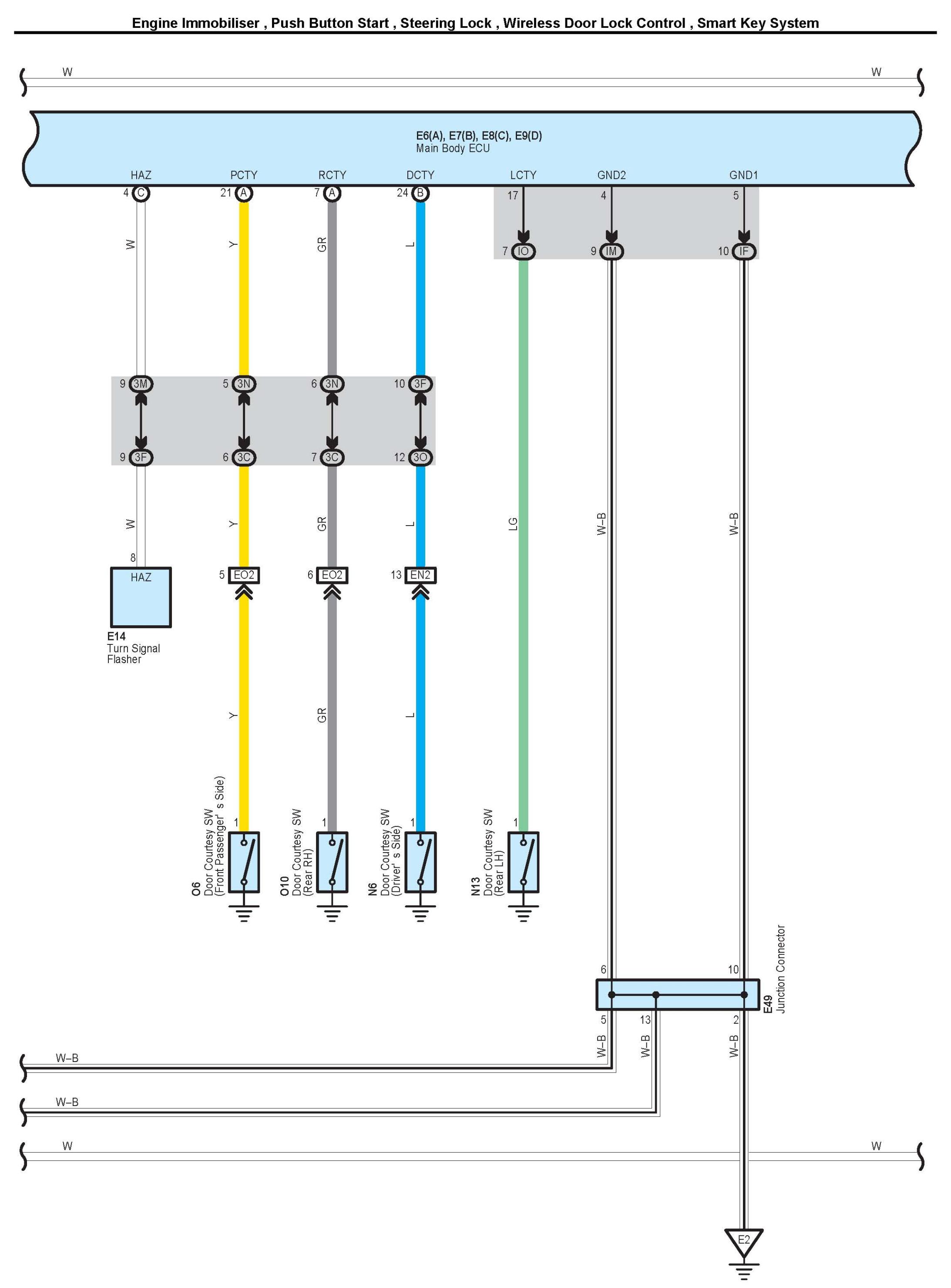

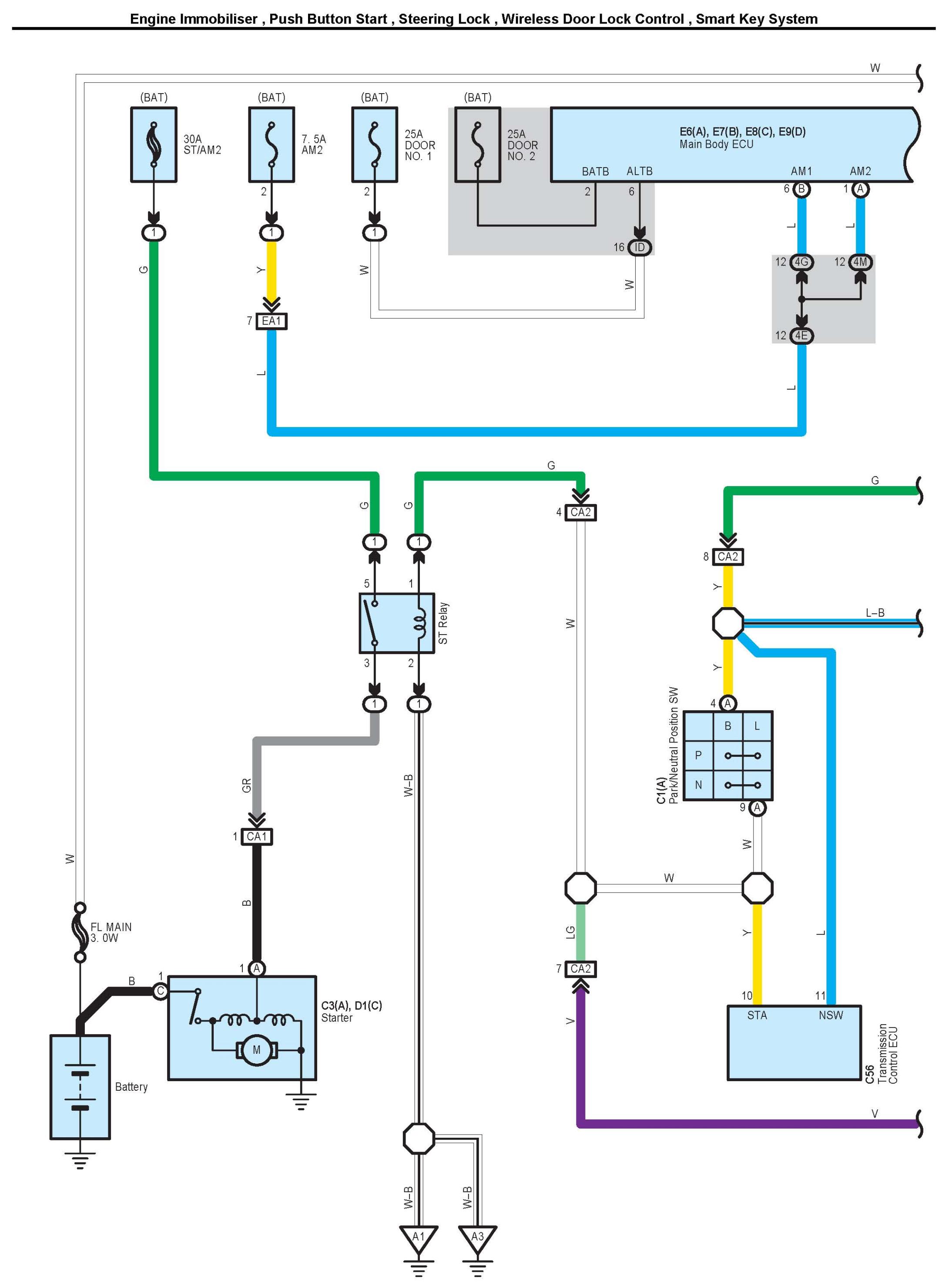

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 2:

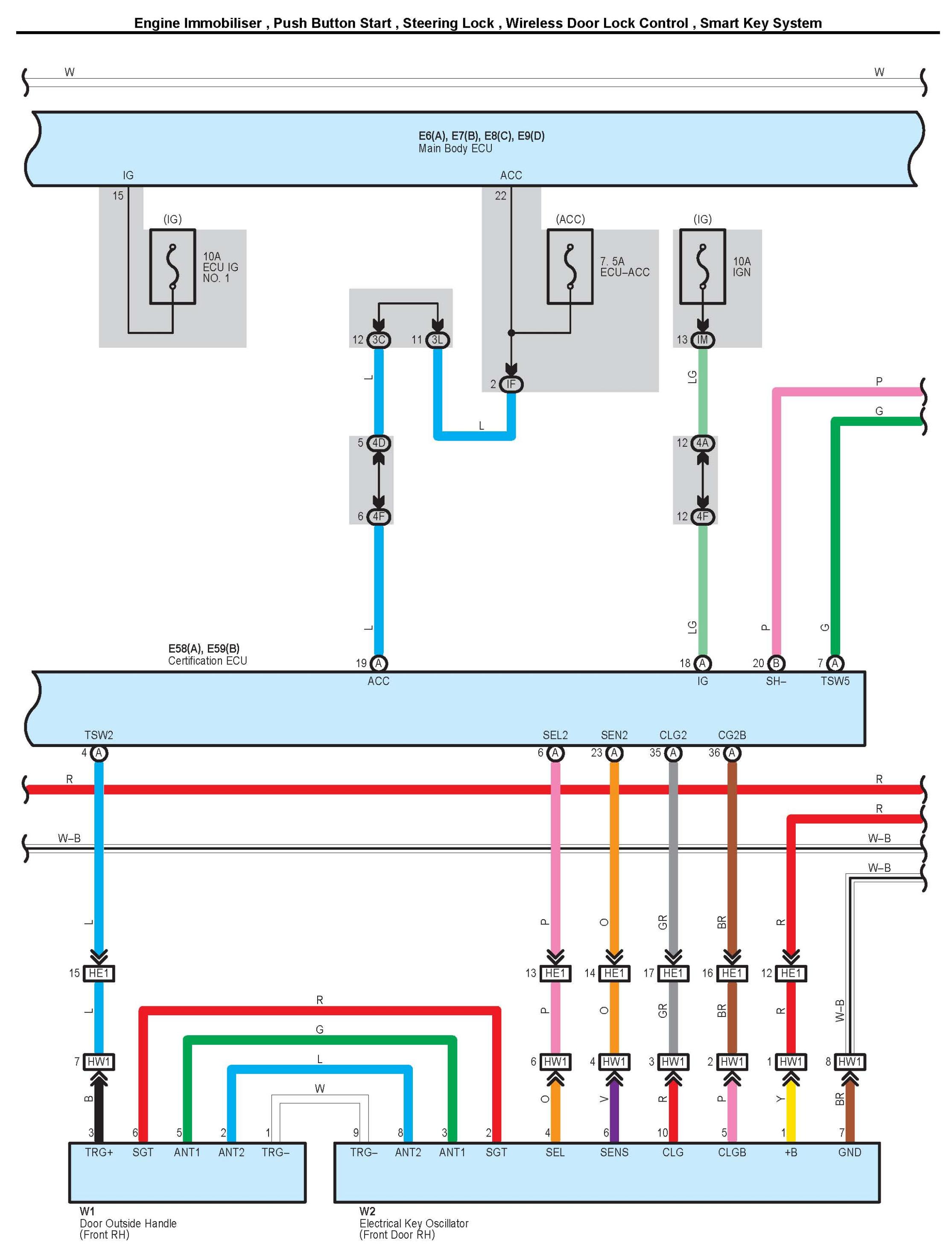

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 3:

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 4:

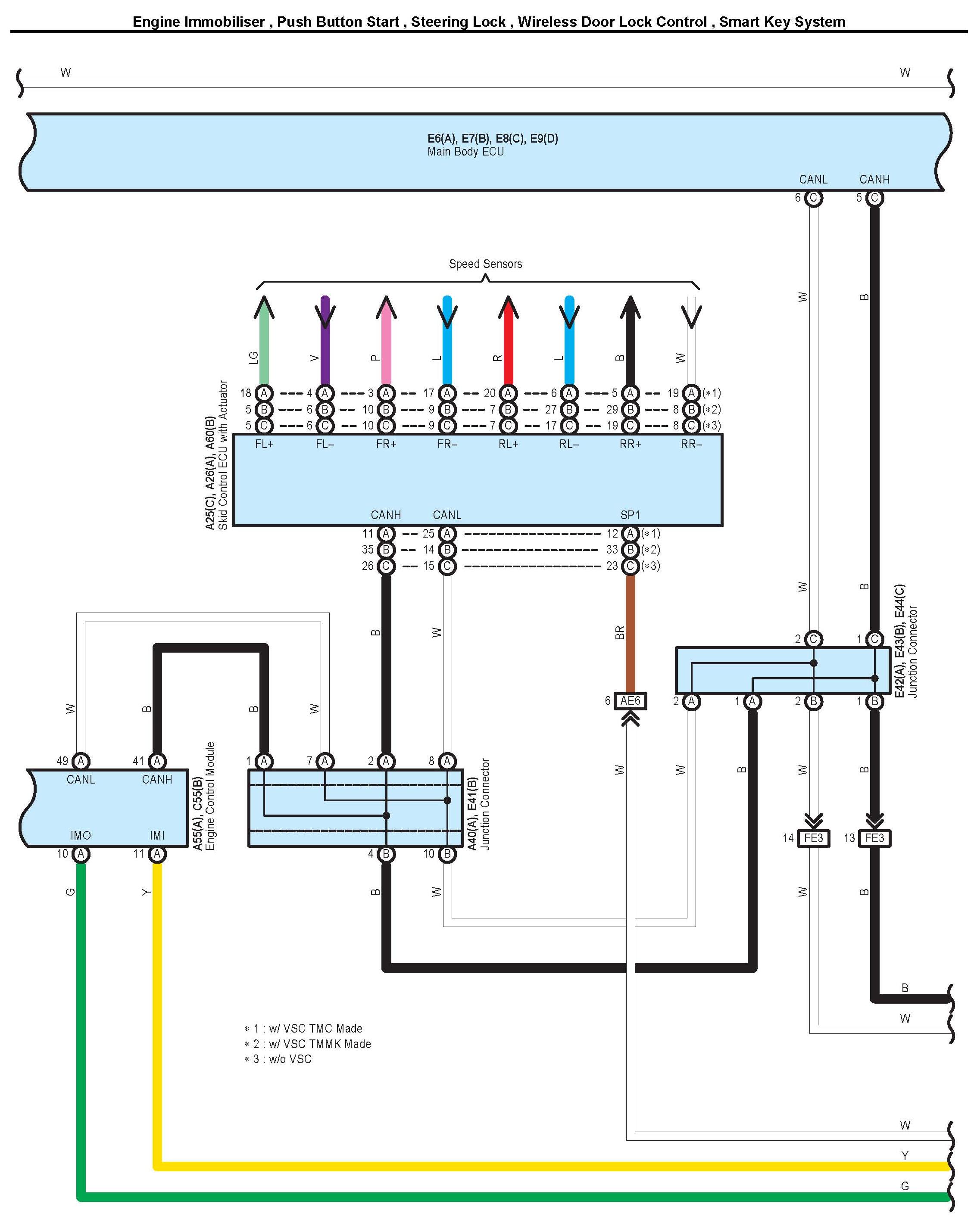

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 5:

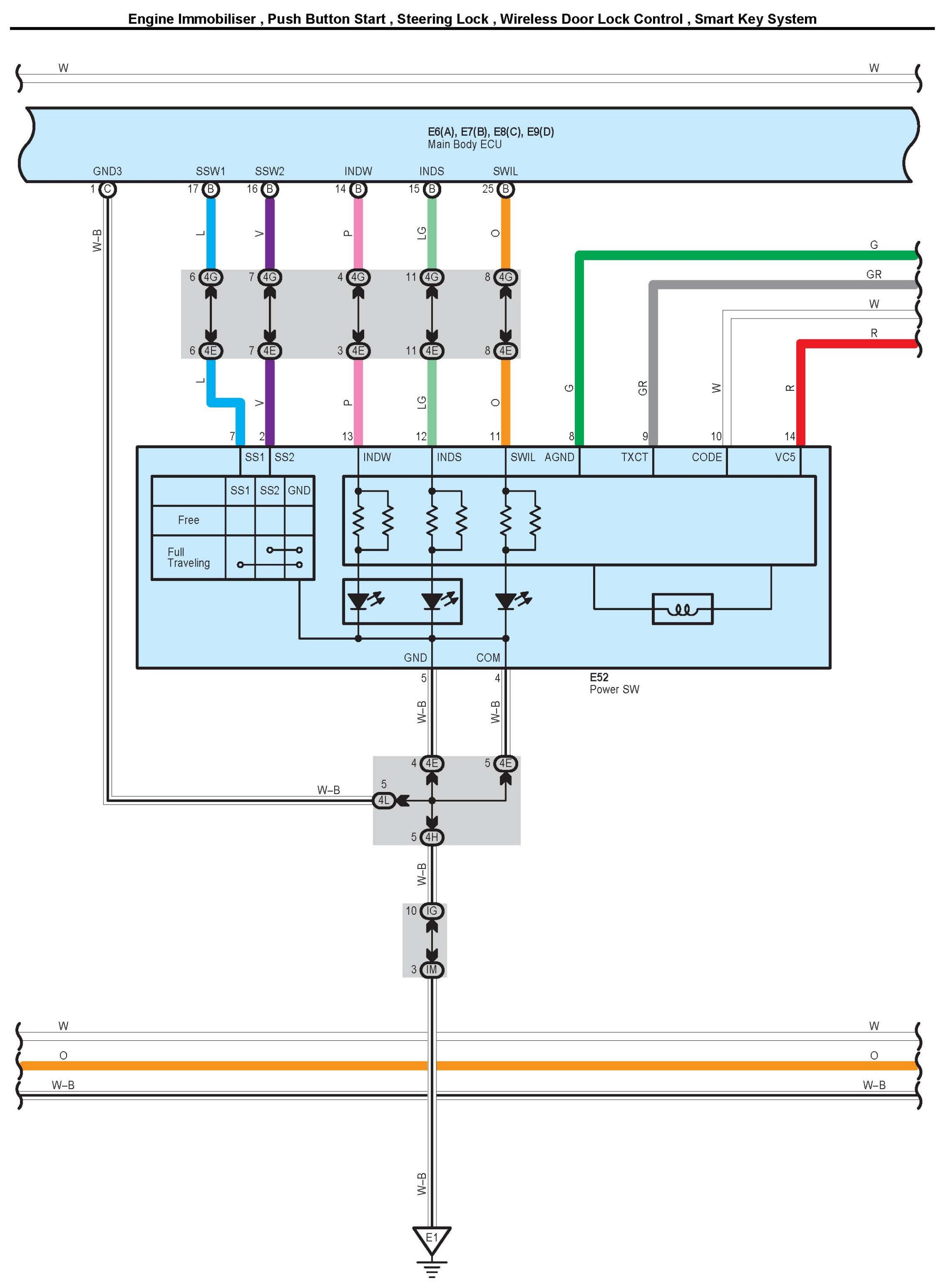

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 6:

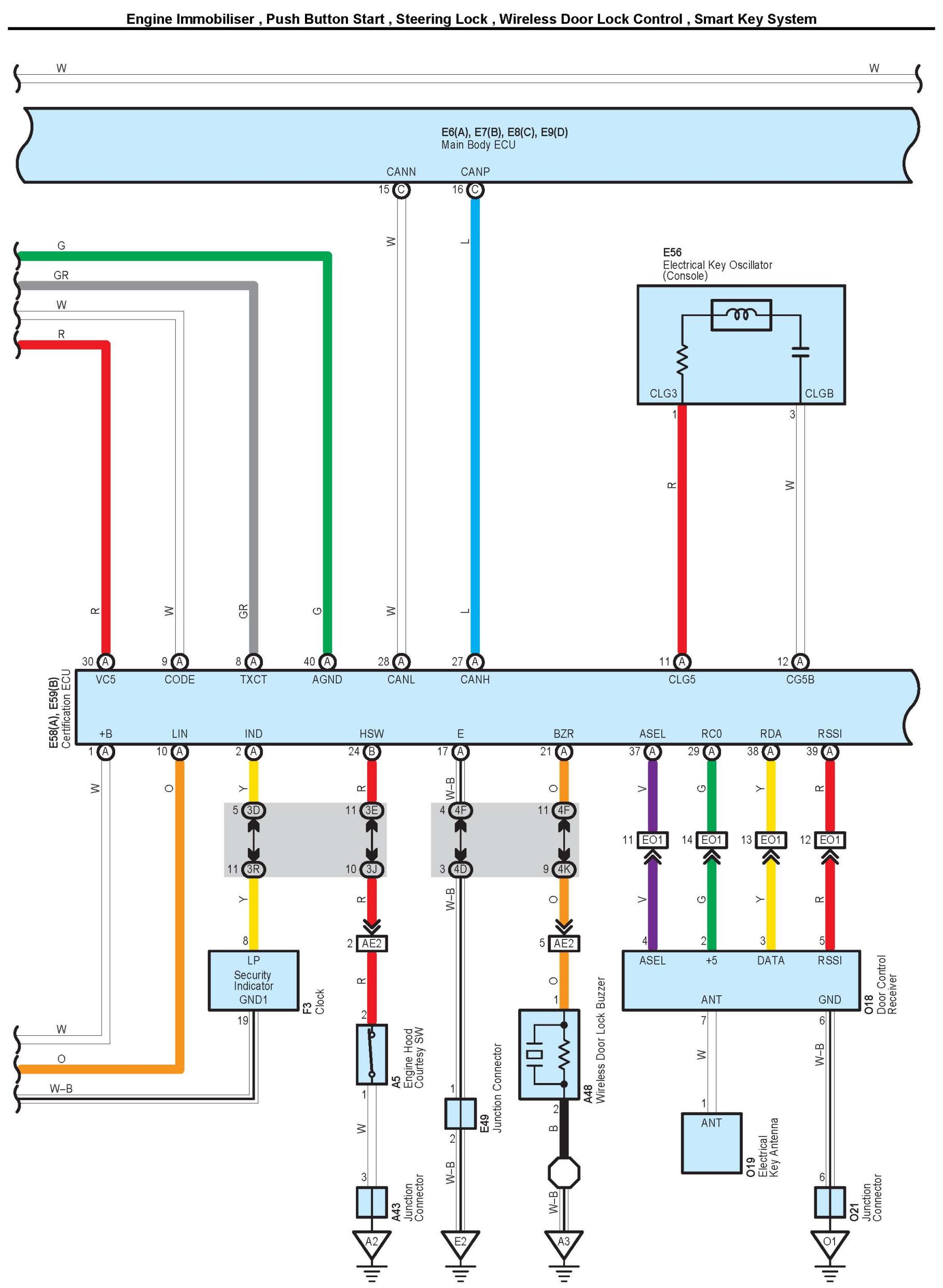

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 7:

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 8:

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 9:

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 10:

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 11:

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 12:

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 13:

Engine Immobilizer, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 14:

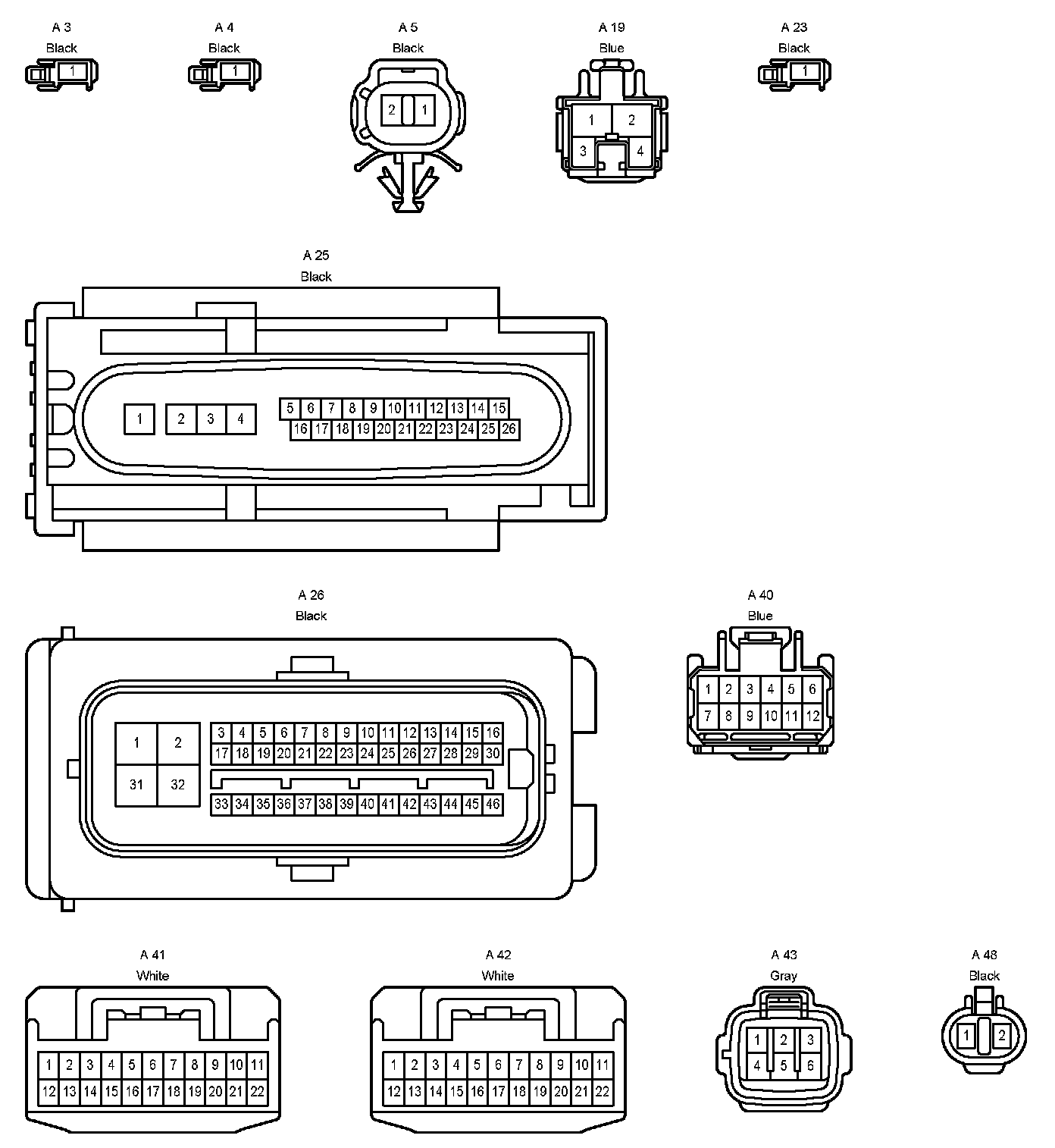

A3 - A48:

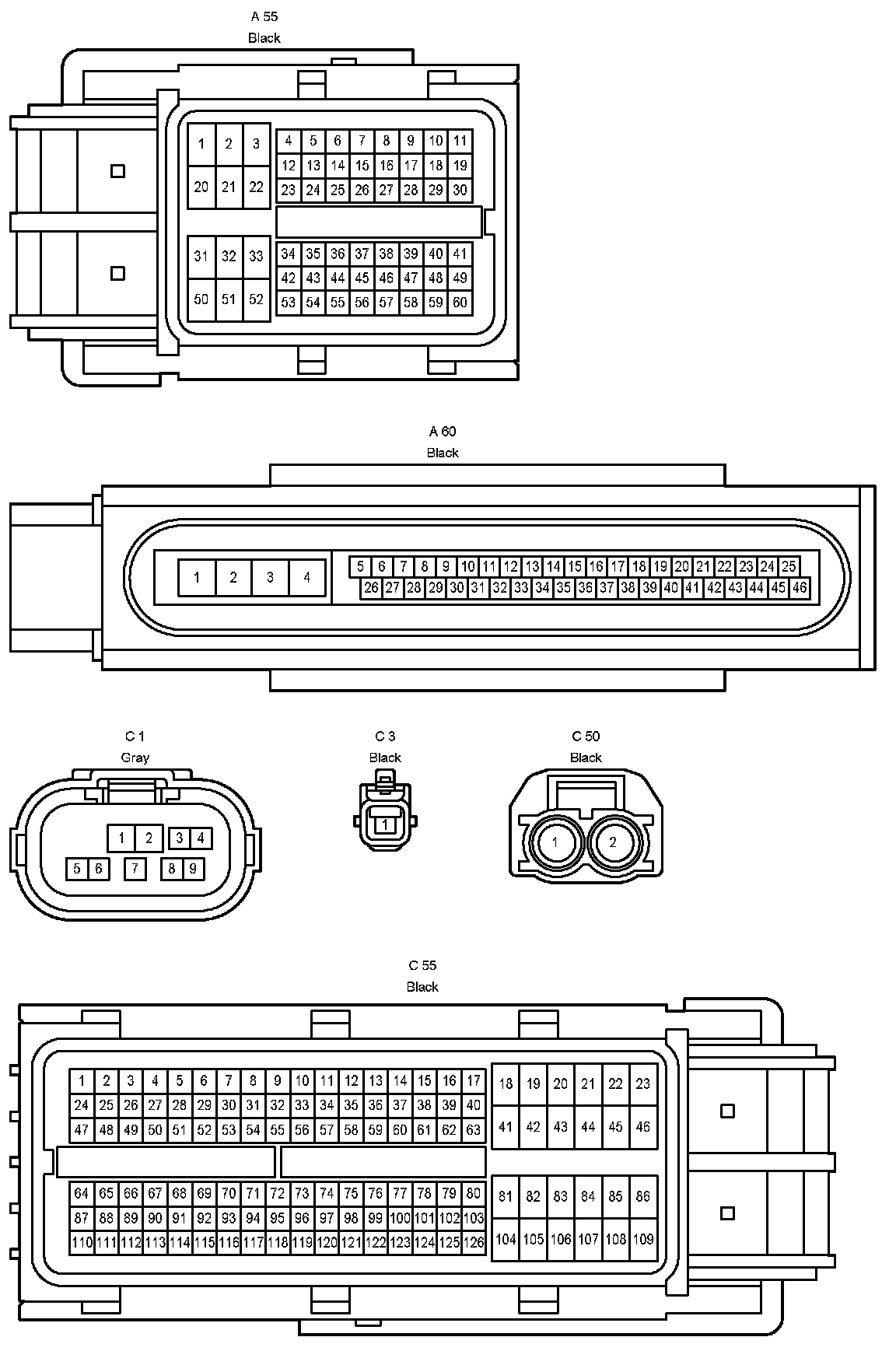

A55 - C55:

C56 - E59:

F1 - W1:

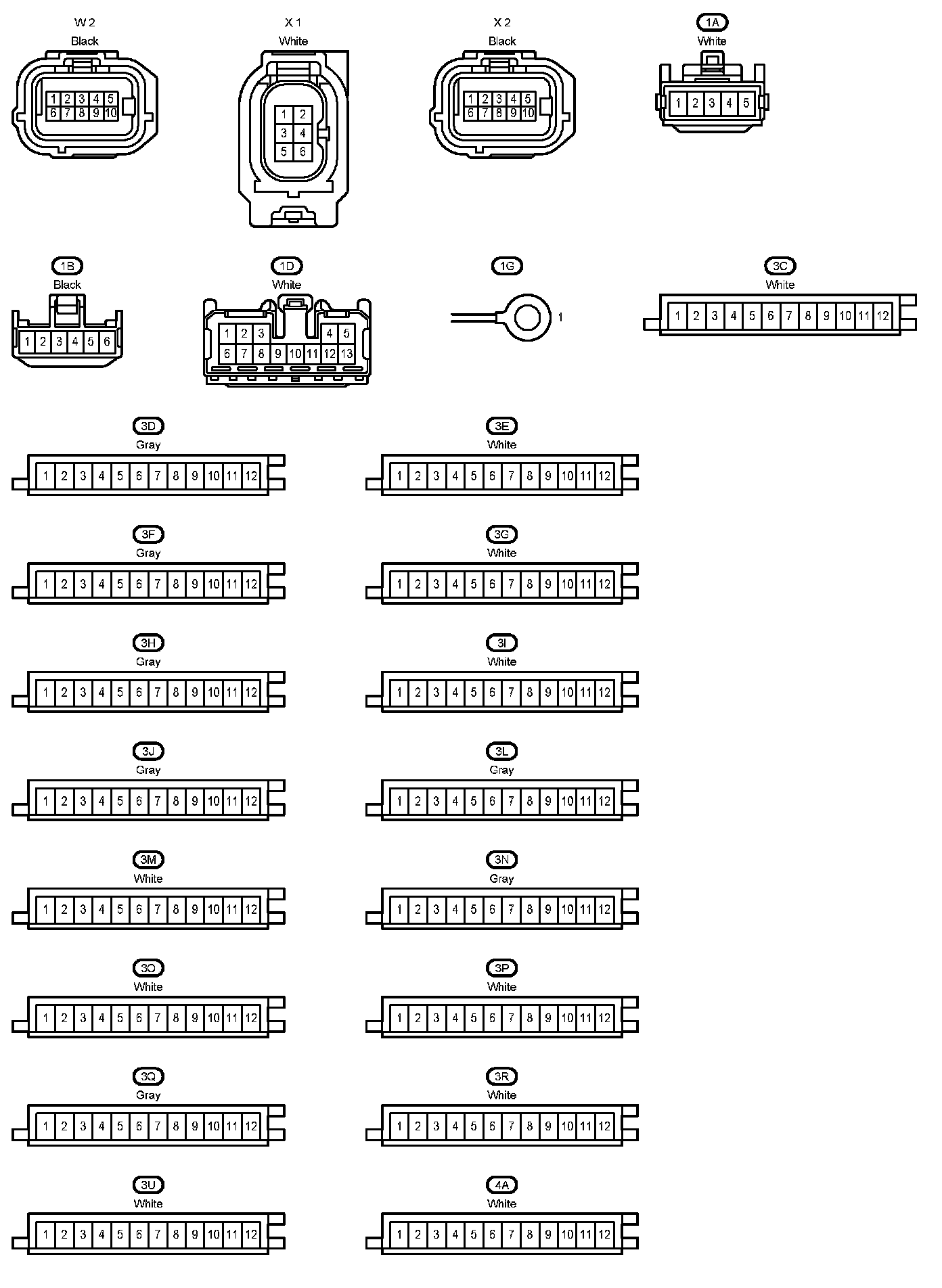

W2 - 4A:

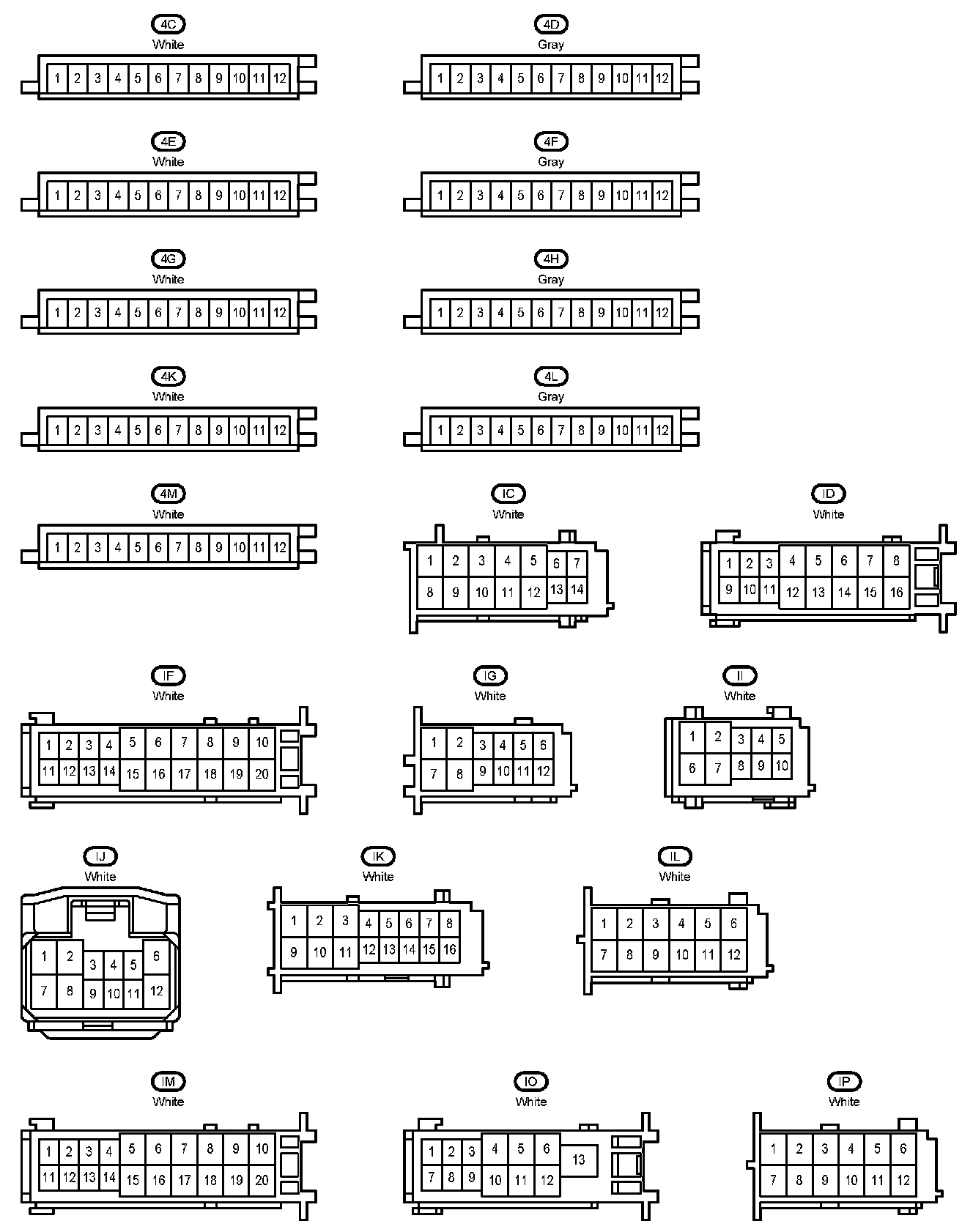

4C - IP:

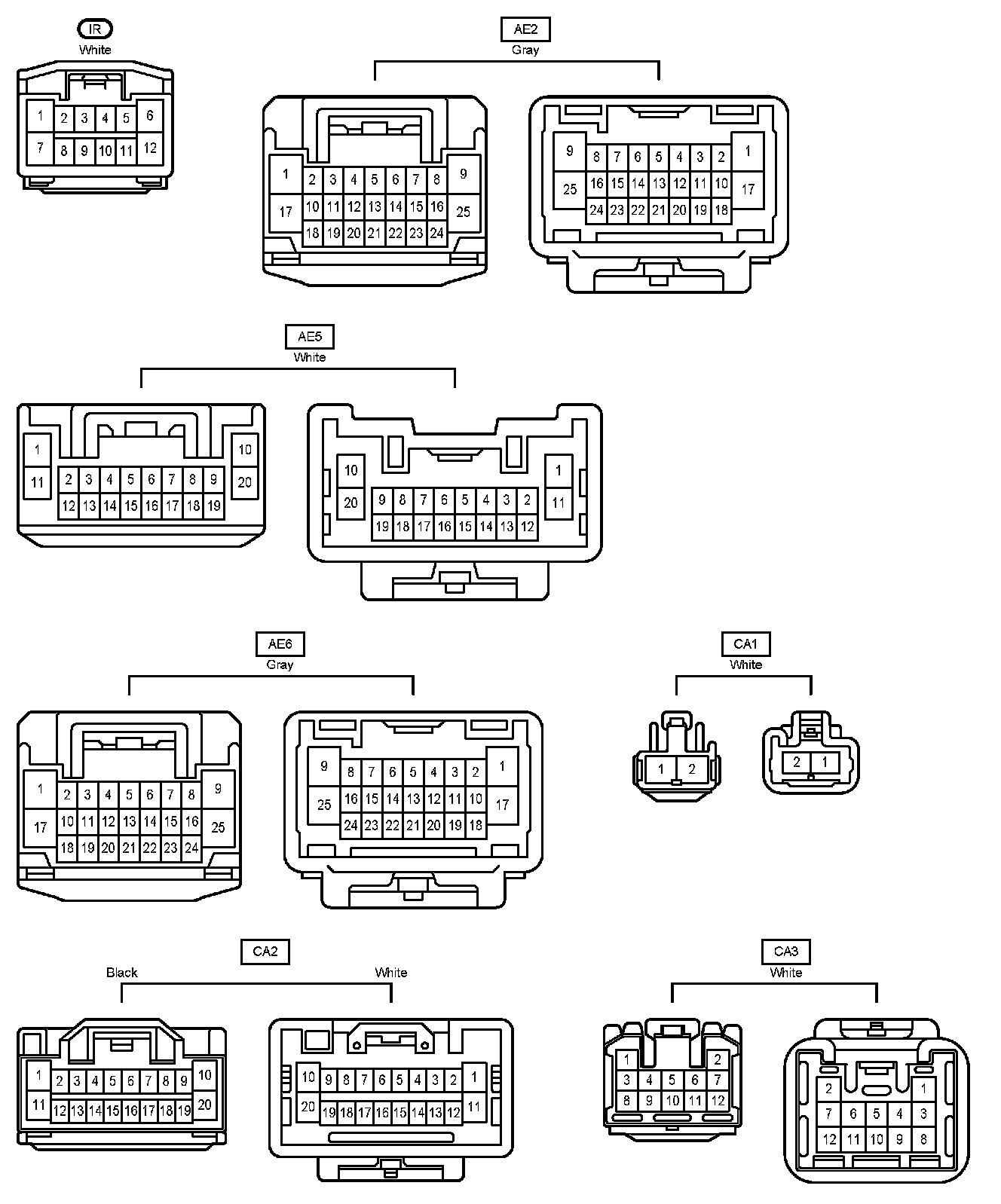

IR - CA3:

EA1 - EO1:

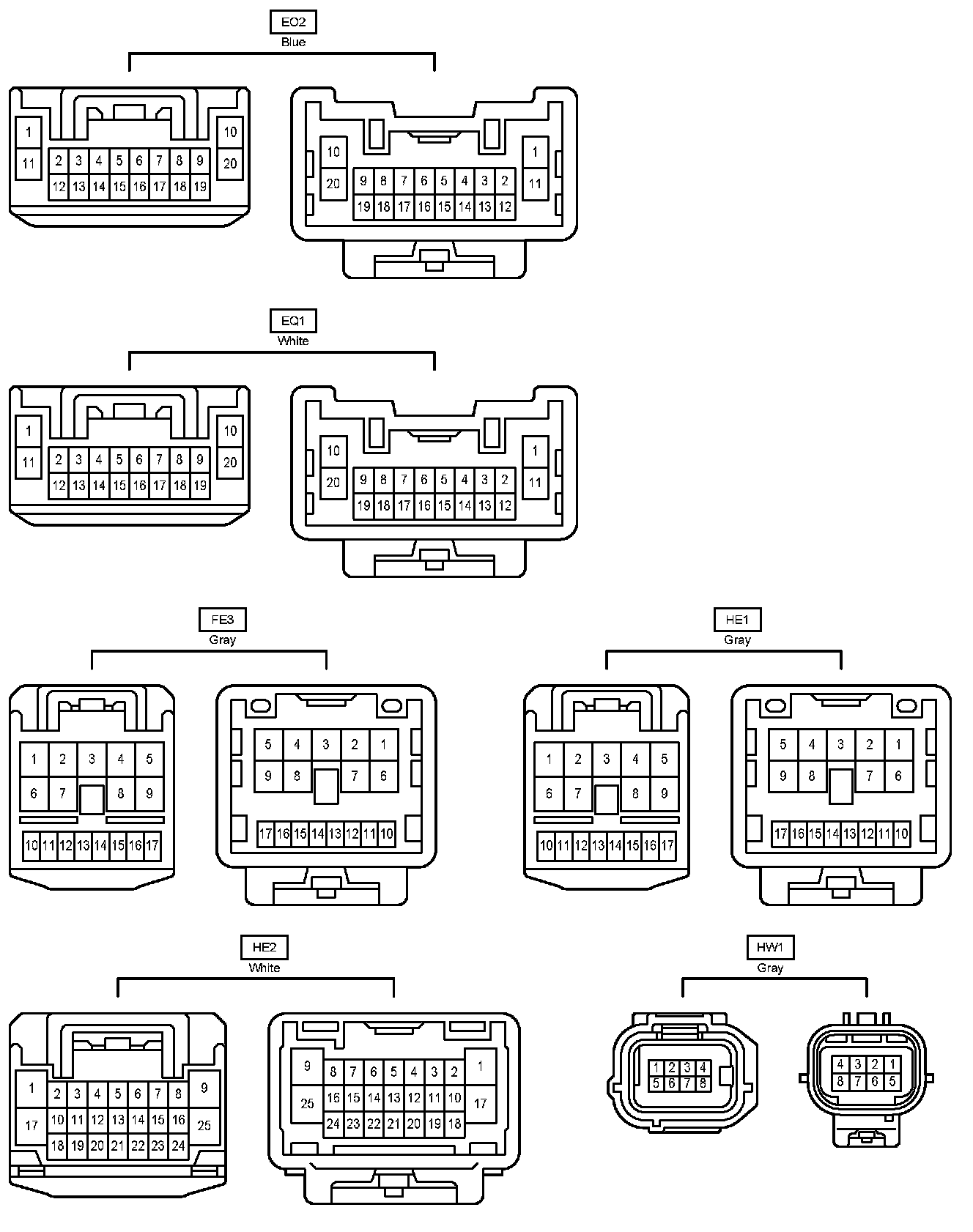

EO2 - HW1:

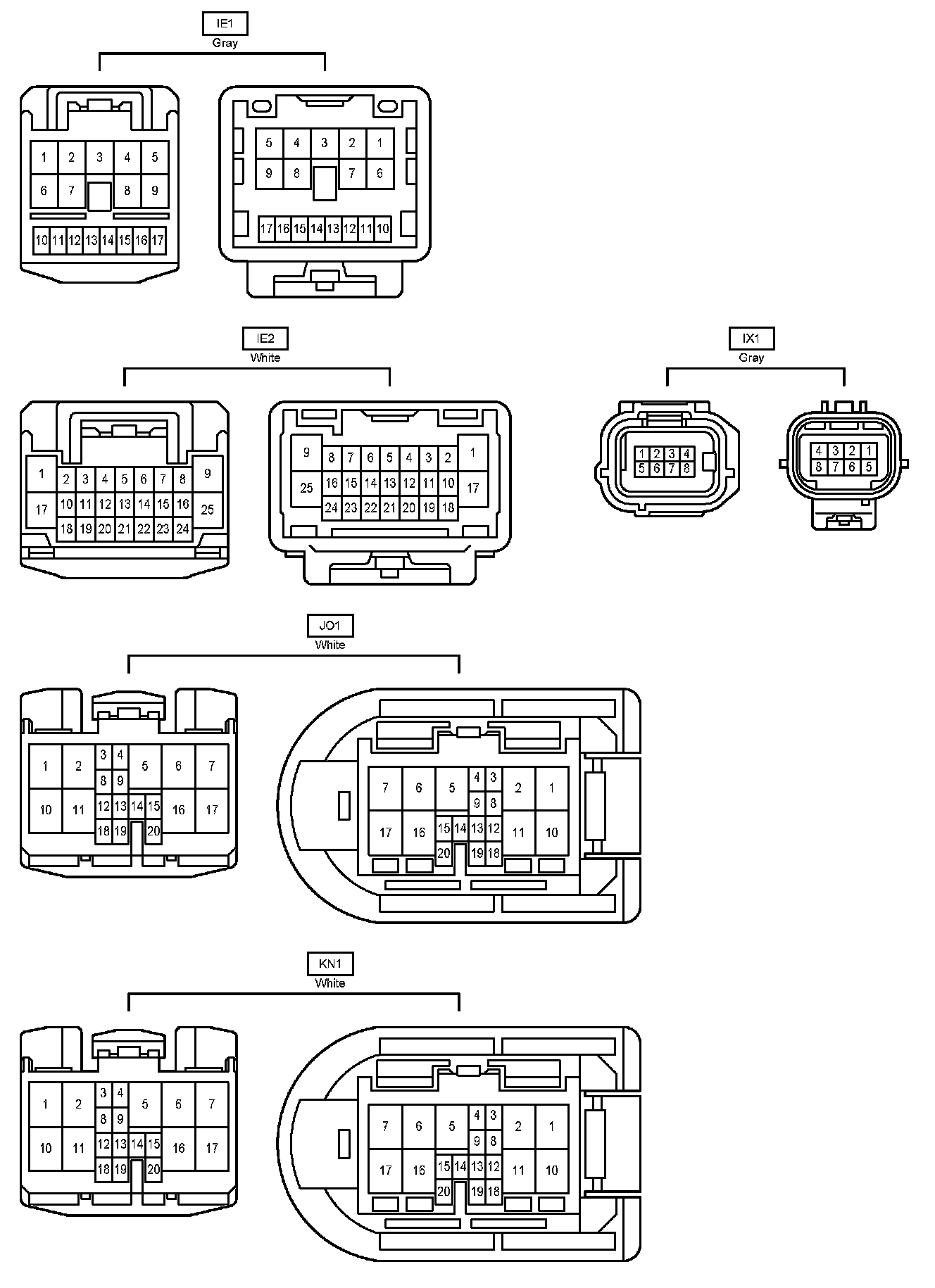

IE1 - KN1:

SN1:

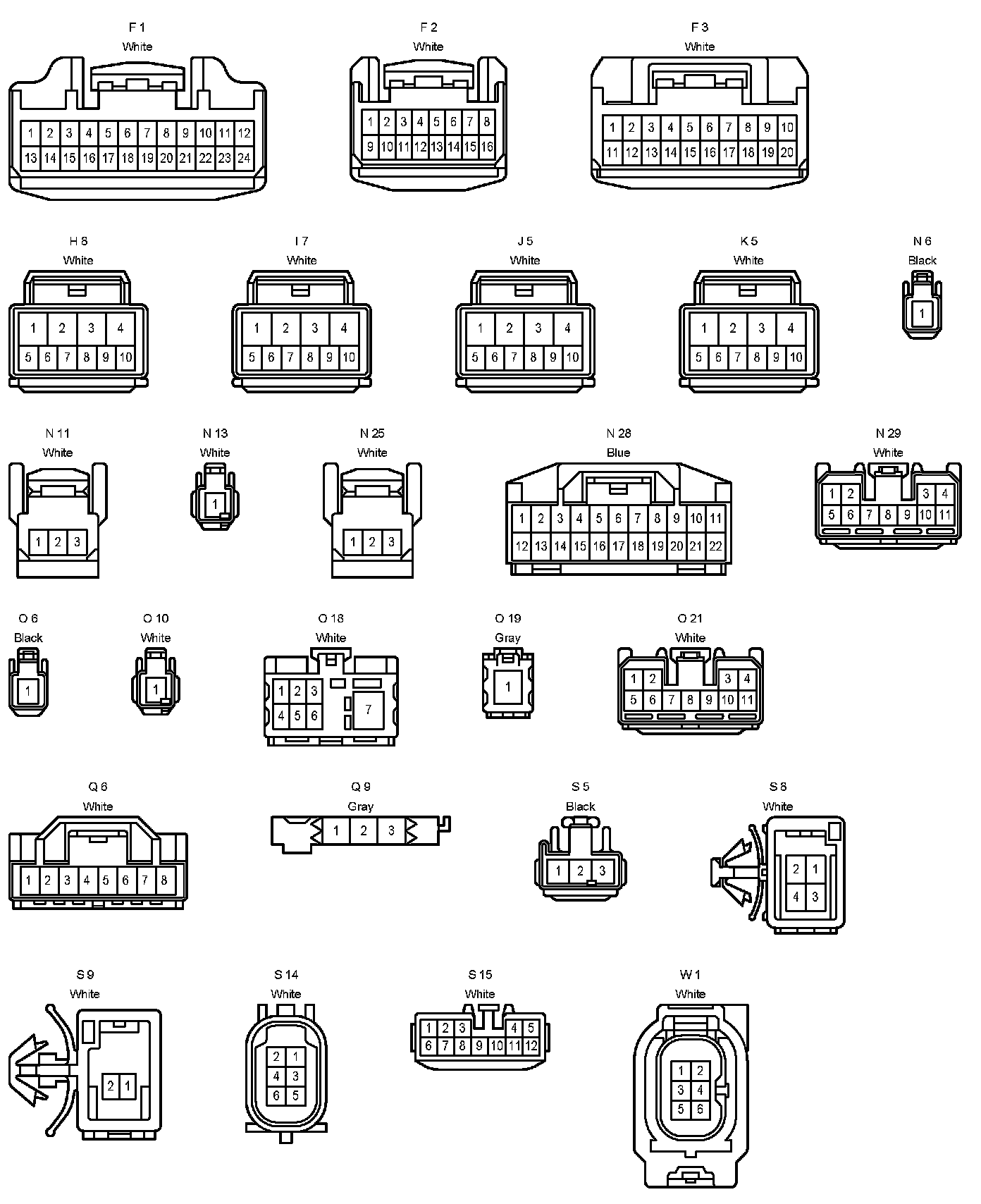

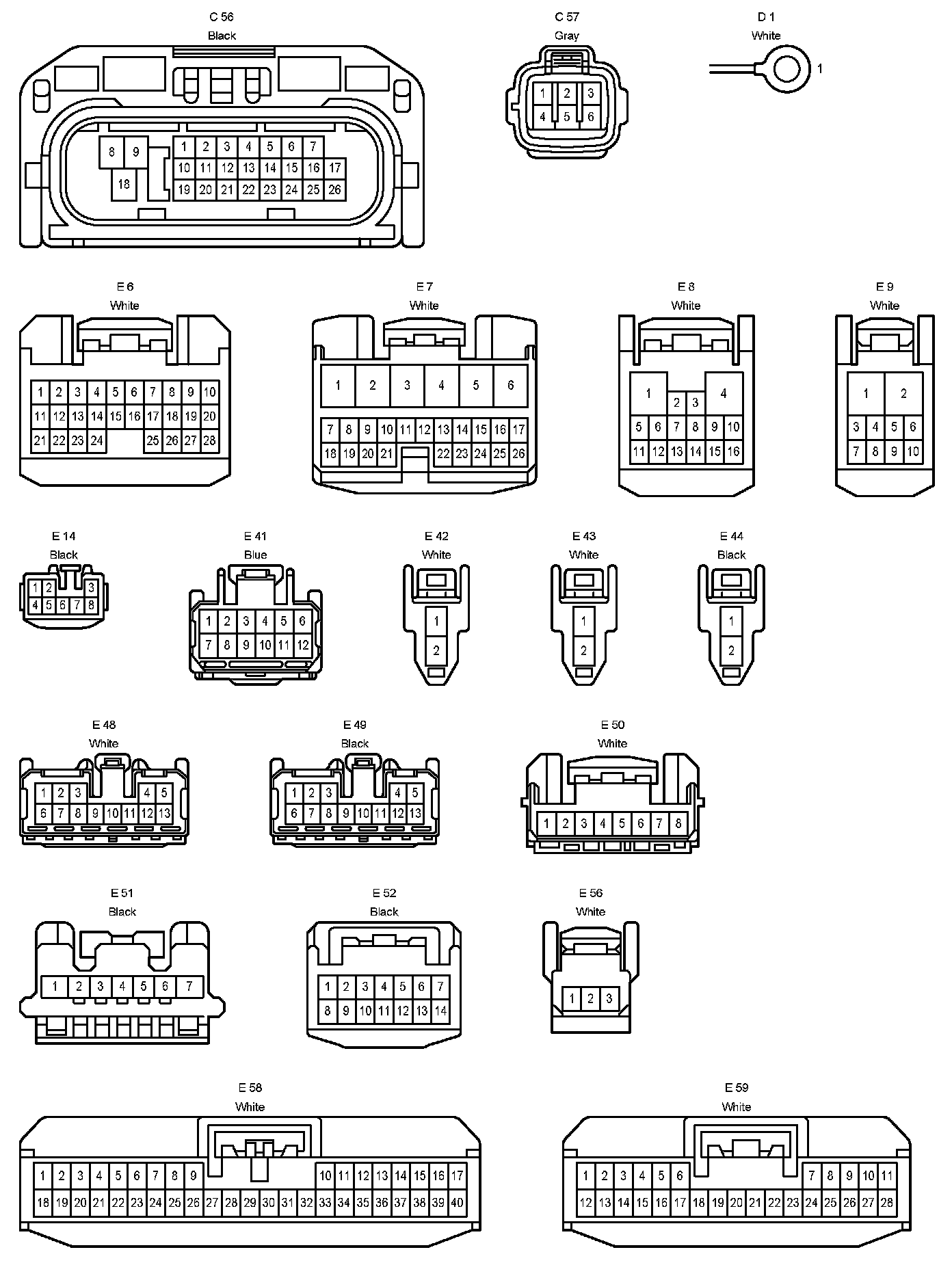

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
