Installation








2AZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

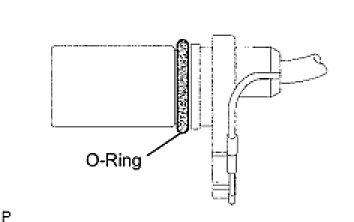

(a) Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.





(b) Install the crankshaft position sensor with the bolt.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

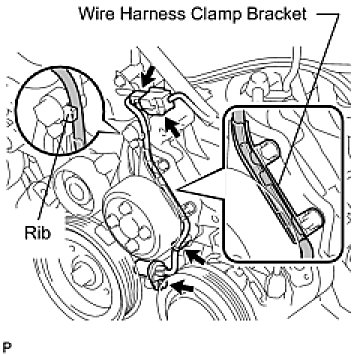

(c) Connect the crankshaft position sensor connector.
2. INSTALL GENERATOR ASSEMBLY (Installation)

3. INSTALL V-RIBBED BELT (Installation)

4. INSTALL FRONT FENDER APRON SEAL RH
5. INSTALL FRONT WHEEL RH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
