Removal

INTERIOR: REAR SUNSHADE ASSEMBLY:

COMPONENTS





















INTERIOR: REAR SUNSHADE ASSEMBLY:

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY (Removal)

2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEAT BACK COVER (Removal)

5. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (Removal)

6. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (Removal)

7. REMOVE CENTER SEAT BACK ASSEMBLY (Removal)

8. REMOVE REAR DOOR SCUFF PLATE LH (Removal)

9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR DOOR SCUFF PLATE RH (Removal)

11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
12. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH (Disassembly)

13. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH

HINT: Use the same procedures for the RH side and the LH side.

14. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH (Removal)

15. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMC Made) (Removal)

16. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMMK Made) (Removal)

17. REMOVE ROOF SIDE INNER GARNISH LH (Removal)

18. REMOVE ROOF SIDE INNER GARNISH RH (Removal)

19. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) (Removal)

20. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) (Removal)

21. REMOVE REAR SEAT SHOULDER BELT COVER (Removal)

22. REMOVE REAR SEAT SHOULDER BELT HOLE COVER (Removal)

23. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (Removal)

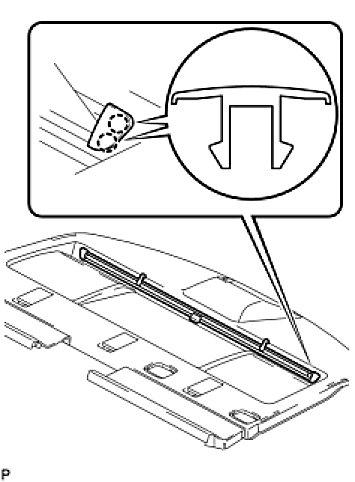

24. REMOVE CURTAIN RAIL END CAP LH





(a) Disengage the 2 claws and remove the curtain rail end cap LH.
25. REMOVE CURTAIN RAIL END CAP RH

HINT: Use the same procedures for the RH side and the LH side.

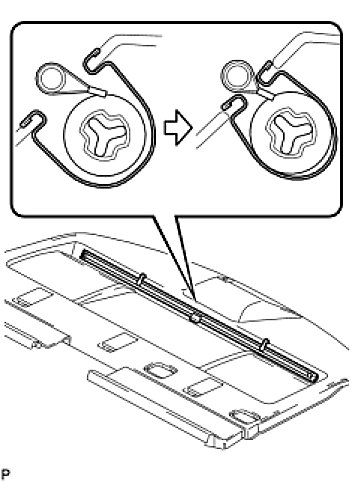

26. REMOVE REAR WINDOW SHADE ASSEMBLY





(a) Remove the rear window shade assembly as shown in the illustration.
