Removal

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR:

REMOVAL

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. DRAIN ENGINE COOLANT (Testing and Inspection)

4. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (Removal)

5. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (Removal)

6. REMOVE FRONT FENDER TO COWL SIDE SEAL LH (Removal)

7. REMOVE FRONT FENDER TO COWL SIDE SEAL RH (Removal)

8. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (Removal)

9. REMOVE WINDSHIELD WIPER MOTOR AND LINK (Removal)

10. REMOVE COWL TOP PANEL OUTER SUB-ASSEMBLY (Removal)

11. REMOVE COOL AIR INTAKE DUCT SEAL (Removal)

12. REMOVE V-BANK COVER SUB-ASSEMBLY (Removal)

13. REMOVE AIR CLEANER INLET ASSEMBLY (Removal)

14. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (Removal)

15. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (Removal)

16. REMOVE NO. 1 AIR CLEANER INLET (Removal)

17. REMOVE INTAKE AIR SURGE TANK ASSEMBLY (Removal)

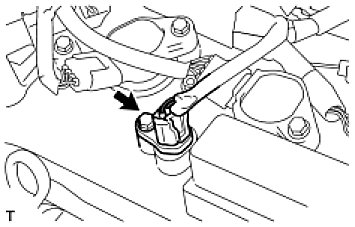

18. REMOVE VVT SENSOR (for Bank 1 Intake Side)





(a) Disconnect the VVT sensor connector.
(b) Remove the bolt and VVT sensor.

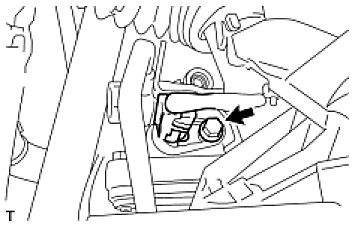

19. REMOVE VVT SENSOR (for Bank 1 Exhaust Side)





(a) Disconnect the VVT sensor connector.
(b) Remove the bolt and VVT sensor.

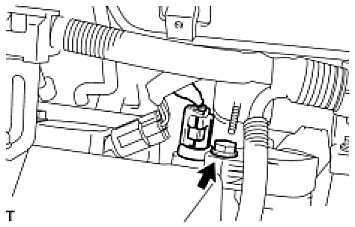

20. REMOVE VVT SENSOR (for Bank 2 Intake Side)





(a) Disconnect the VVT sensor connector.
(b) Remove the bolt and VVT sensor.

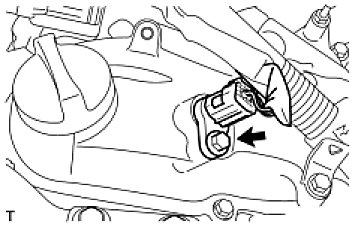

21. REMOVE VVT SENSOR (for Bank 2 Exhaust Side)





(a) Disconnect the VVT sensor connector.
(b) Remove the bolt and VVT sensor.
