Installation

2GR-FE STARTING: STARTER:

INSTALLATION

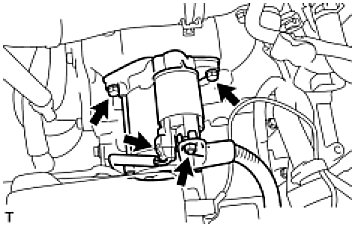

1. INSTALL STARTER ASSEMBLY





(a) Install the starter assembly with the 2 bolts.
Torque: 37 Nm (380 kgf-cm, 28 ft-lbf)
(b) Connect the wire harness to terminal 30 and install the nut. Then, attach the terminal cap.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(c) Connect the terminal 50 connector to the starter assembly.
2. INSTALL NO. 1 AIR CLEANER INLET (Installation)

3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY (Installation)

4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (Installation)

5. INSTALL AIR CLEANER INLET ASSEMBLY (Installation)

6. INSTALL V-BANK COVER SUB-ASSEMBLY (Installation)

7. INSTALL COOL AIR INTAKE DUCT SEAL (Installation)

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (Installation)
