INTERIOR: REAR CONSOLE BOX: INSTALLATION

INSTALLATION

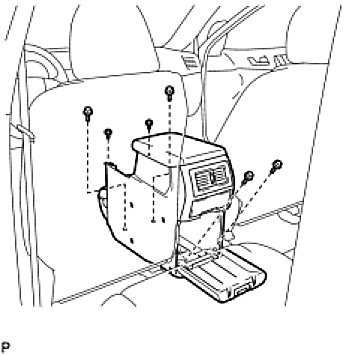

1. INSTALL CONSOLE BOX ASSEMBLY (w/ Rear Air Conditioning System)






(a) Engage the 6 claws.
(b) Connect the connector.






(c) Install the console box assembly with the 4 bolts and 2 screws.
2. INSTALL CONSOLE BOX ASSEMBLY (w/o Rear Air Conditioning System)






(a) Engage the 6 claws.






(b) Install the console box assembly with the 4 bolts and 2 screws.
3. INSTALL LOWER REAR CONSOLE BOX
(a) Install the lower rear console box.
4. INSTALL NO. 2 CONSOLE BOX DUCT (w/o Rear Air Conditioning System) Installation

5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System) Installation

7. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System) Installation
