Installation

BRAKE CONTROL: SKID CONTROL SENSOR:

COMPONENTS









INSTALLATION

1. INSTALL SKID CONTROL SENSOR
(a) Clean the contacting surface of the axle hub and a new speed sensor.

NOTE: Do not stick any foreign objects to the sensor rotor.

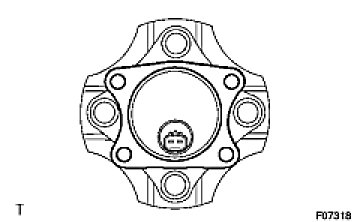

(b) Place the speed sensor on the axle hub so that the connector makes the lowest position under the on-vehicle condition.





(c) Using SST and press, install the new speed sensor to axle hub.
SST: 09214-76011
2. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH (Installation)

3. CONNECT SKID CONTROL SENSOR WIRE





(a) Connect the skid control sensor wire connector to the skid control sensor.
4. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY (for Drum Type)
5. INSTALL REAR DISC (for Disc Type)
6. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH (for Disc Type)
7. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
8. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

HINT: (Service and Repair)

9. CHECK ABS SPEED SENSOR SIGNAL

HINT: (Test Mode Procedure)
