Symptom Related Diagnostic Procedures








CAN COMMUNICATION SYSTEM:

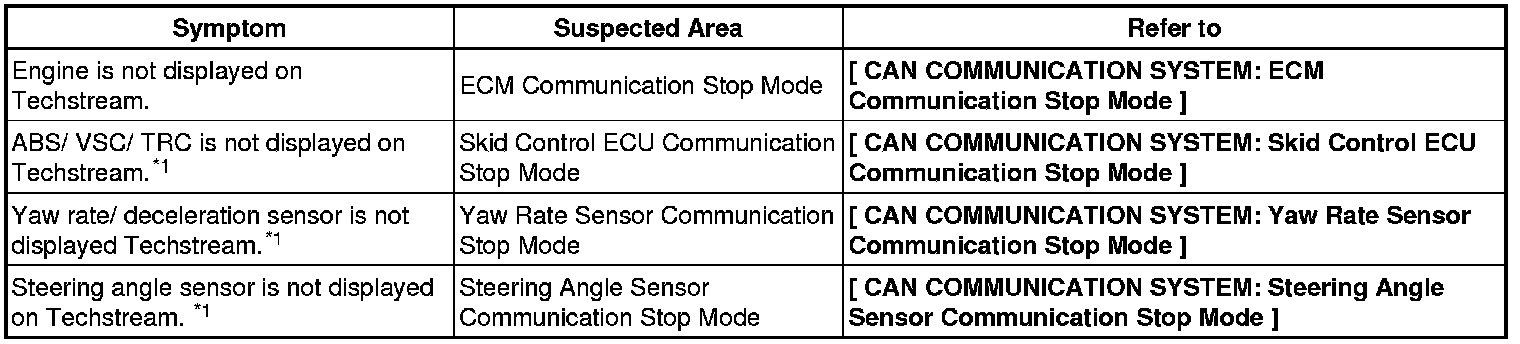

PROBLEM SYMPTOMS TABLE

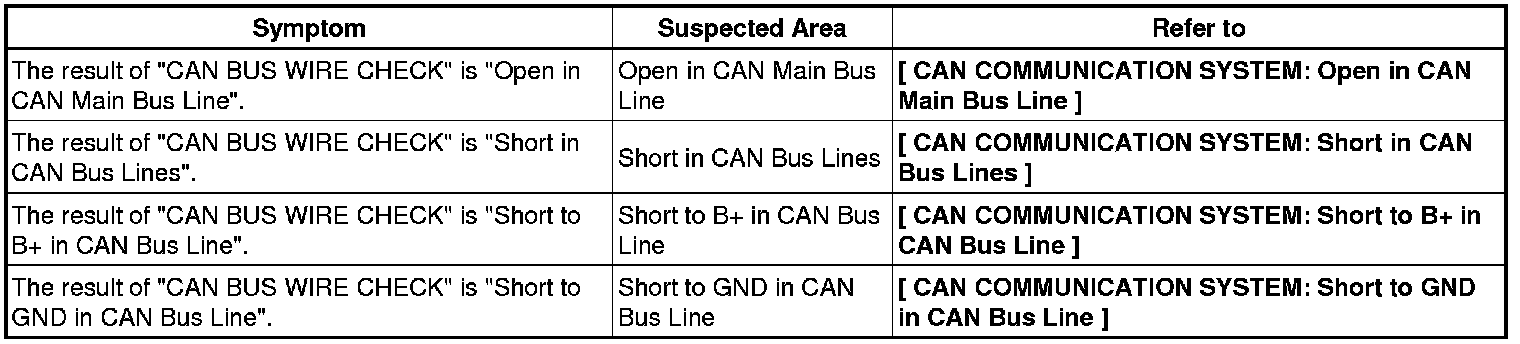

RESULT LIST OF CHECK CAN BUS LINE (w/ VSC)





COMMUNICATION STOP MODE TABLE





HINT: *1: w/ VSC
