Installation








NAVIGATION ECU:

INSTALLATION

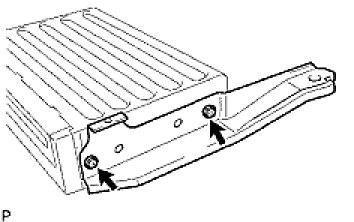

1. INSTALL NO. 2 DISC PLAYER BRACKET





(a) Install the bracket with the 2 bolts.

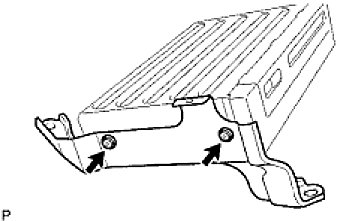

2. INSTALL NO. 1 DISC PLAYER BRACKET





(a) Install the bracket with the 2 bolts.

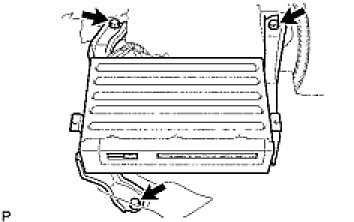

3. INSTALL NAVIGATION ECU WITH BRACKET





(a) Install the navigation ECU with the 3 bolts.
(b) Connect the connector.

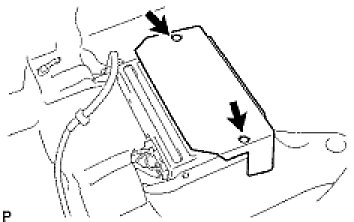

4. INSTALL NAVIGATION ECU COVER





(a) Install the cover and attach the 2 clips.
5. INSTALL FRONT SEAT ASSEMBLY LH (Installation)

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
(a) Perform initialization (Repair Instruction - Initialization).

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
