Removal

NAVIGATION ECU:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT SEAT ASSEMBLY LH (Removal)

3. REMOVE NAVIGATION ECU COVER

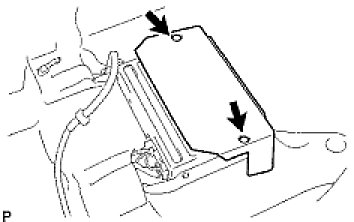

(a) Detach the 2 clips and remove the navigation ECU cover.
4. REMOVE NAVIGATION ECU WITH BRACKET
(a) Disconnect the connector.

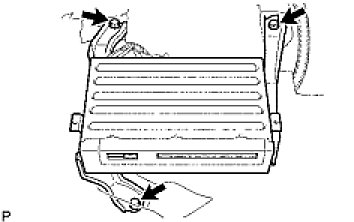

(b) Remove the 3 bolts and navigation ECU with bracket.
5. REMOVE NO. 1 DISC PLAYER BRACKET

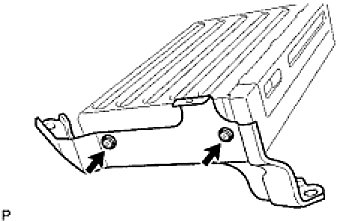

(a) Remove the 2 bolts and disc player bracket.
6. REMOVE NO. 2 DISC PLAYER BRACKET

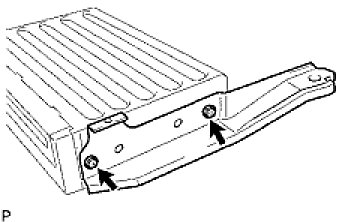

(a) Remove the 2 bolts and No. 2 disc player bracket.
