Installation

P112 HYBRID BATTERY CONTROL: SYSTEM MAIN RESISTOR:

INSTALLATION

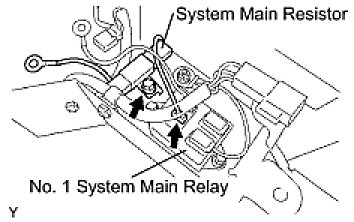

1. INSTALL SYSTEM MAIN RESISTOR

CAUTION: Wear insulating gloves.

(a) Install the system main resistor with the bolt.
Torque: 3.4 Nm (35 kgf-cm, 30 in-lbf)
(b) Install the connector to the No. 1 system main relay.
2. INSPECT CONTACT CONDITION (Installation)

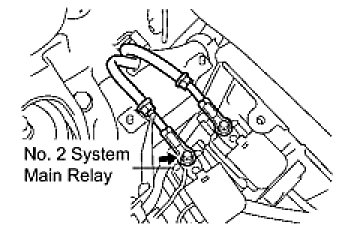

3. INSTALL FRAME WIRE

CAUTION: Wear insulating gloves.

(a) Temporarily install the system main resistor terminal and frame wire, in that order, and tighten a new nut.
Torque: 5.6 Nm (57 kgf-cm, 50 in-lbf)
4. INSTALL JUNCTION TERMINAL (Installation)

5. INSTALL NO. 6 BATTERY CARRIER PANEL (Installation)

6. INSTALL BATTERY CARRIER BRACKET (Installation)

7. INSTALL DECK TRIM SIDE PANEL LH (Installation)

8. INSTALL DECK FLOOR BOX LH (Installation)

9. INSTALL REAR NO. 4 FLOOR BOARD (Installation)

10. INSTALL REAR SIDE SEAT BACK FRAME LH (Installation)

11. INSTALL REAR NO. 1 FLOOR BOARD (Installation)

12. INSTALL REAR SEAT CUSHION ASSEMBLY (Installation)

13. INSTALL TONNEAU COVER (Installation)

14. INSTALL REAR DECK TRIM COVER (Installation)

15. INSTALL SERVICE PLUG GRIP (Installation)

16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

17. INSTALL REAR NO. 3 FLOOR BOARD

18. INSTALL REAR DECK FLOOR BOX

19. INSTALL REAR NO. 2 FLOOR BOARD

20. PERFORM INITIALIZATION
(a) Perform initialization (Repair Instruction - Initialization).

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
