Data List / Active Test








HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM:

DATA LIST / ACTIVE TEST

1. READ DATA LIST

HINT: Using the Techstream's Data List allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to save time.

(a) Connect the Techstream to the DLC3.
(b) Turn the power switch ON (IG) and press the Techstream main switch on.
(c) Read the Data List by following the directions on the tester screen.

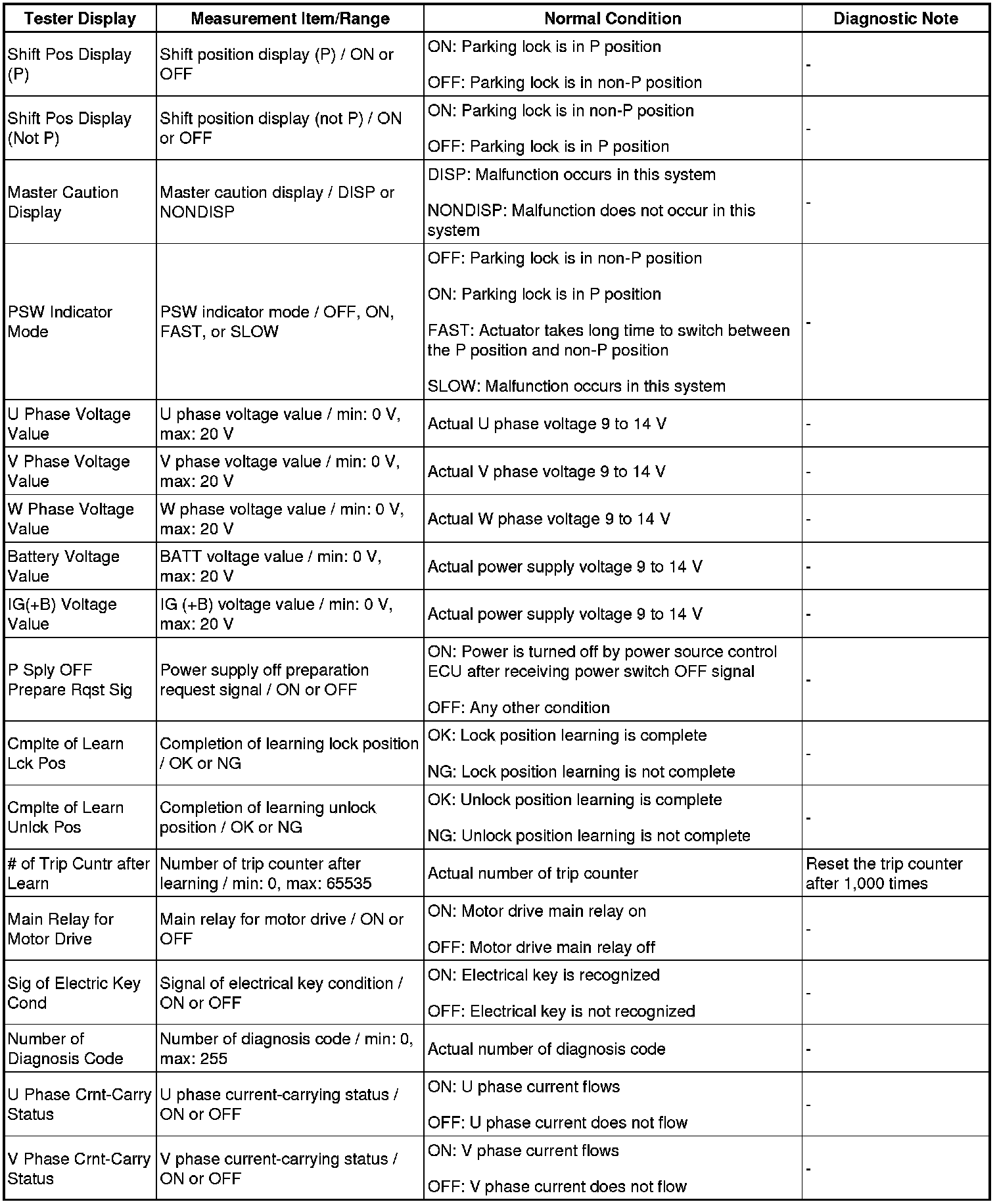

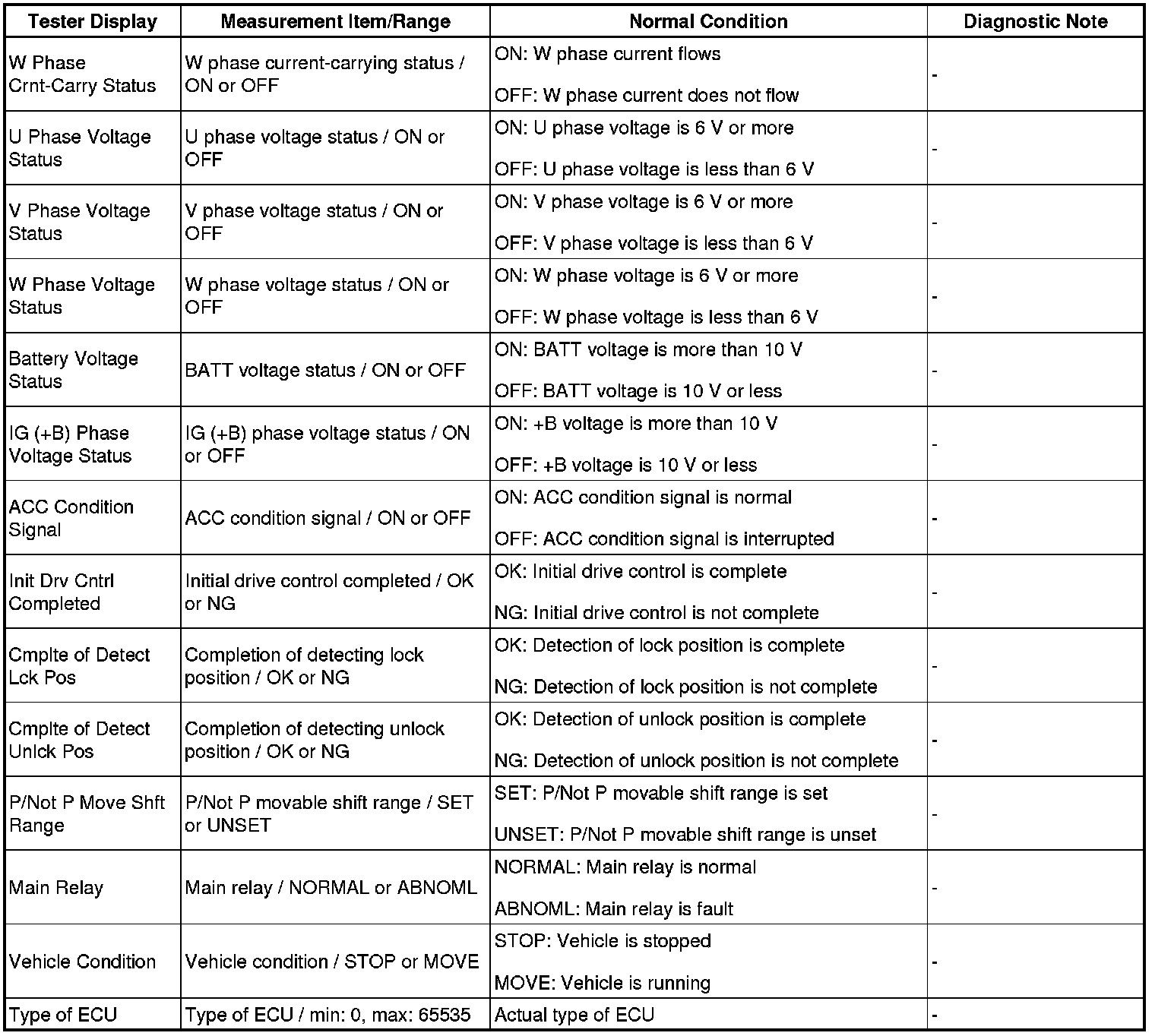

Transmission control ECU
