Intake Manifold

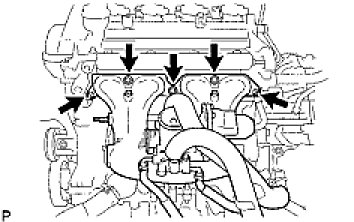

INTAKE MANIFOLD Install a new gasket, then install the
intake manifold with the 3 bolts and 2 nuts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)

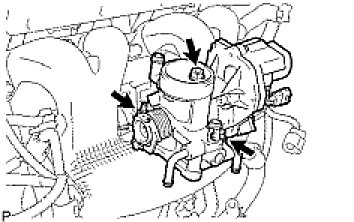

THROTTLE BODY ASSEMBLY WITH MOTOR
Install the throttle with motor body with the bolt and 2 nuts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
