Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS

HINT: The following items can be customized.

NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

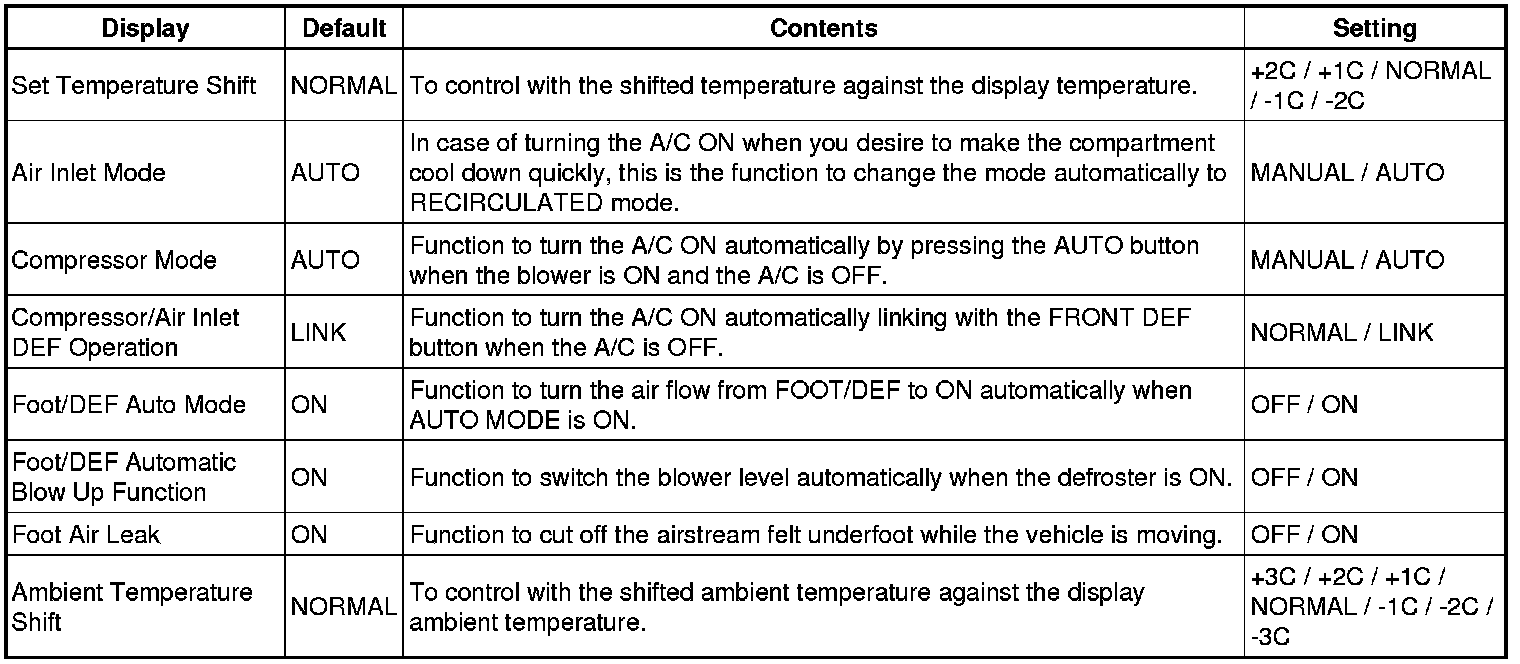

1. AIR CONDITIONING SYSTEM

Air conditioning amplifier

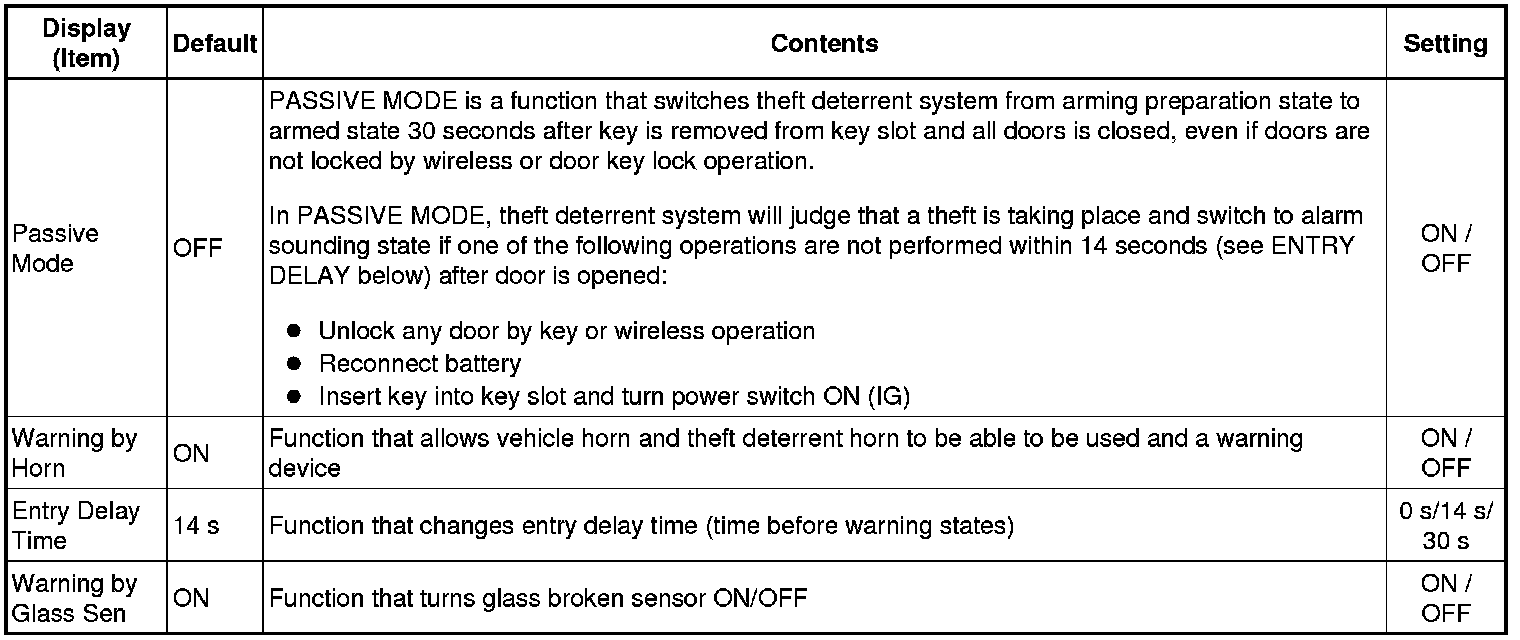

2. THEFT DETERRENT SYSTEM

Security





3. LIGHTING SYSTEM

Illuminated entry





Light control





(O): w/ Daytime running light

Illustration of *1





Illustration of *2





Illustration of *3

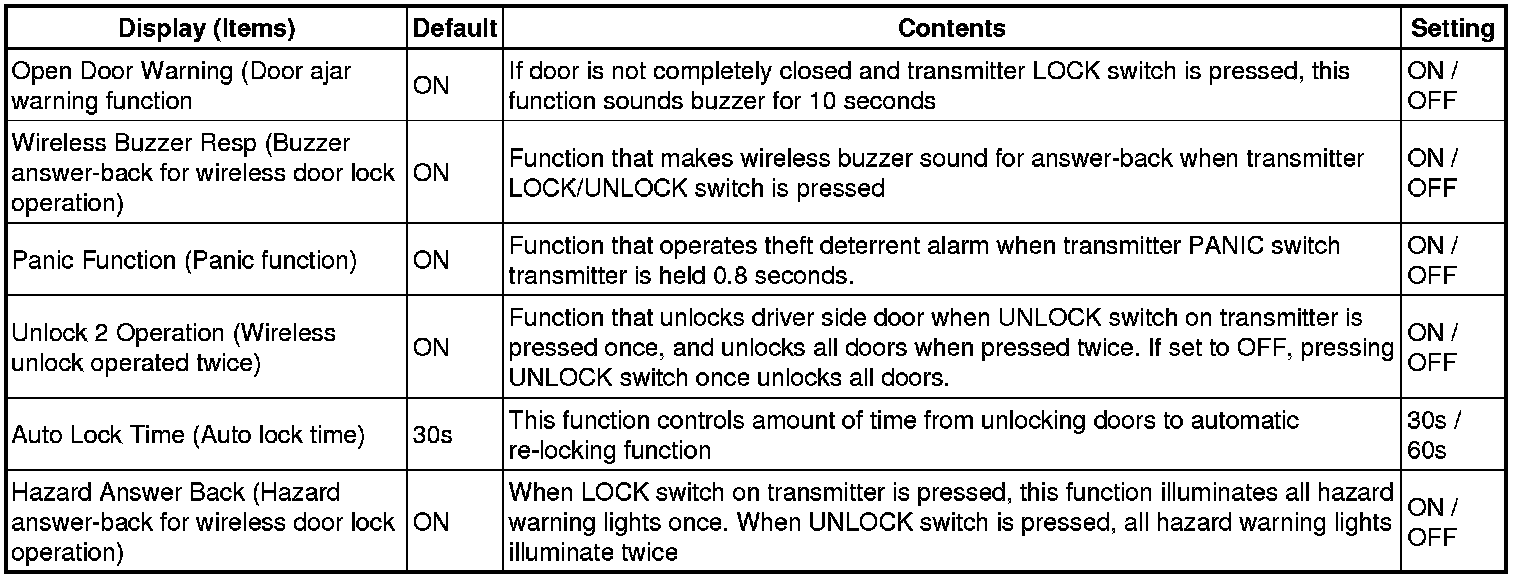

4. WIRELESS DOOR LOCK CONTROL SYSTEM (with Smart Key System)

Wireless door lock control system:

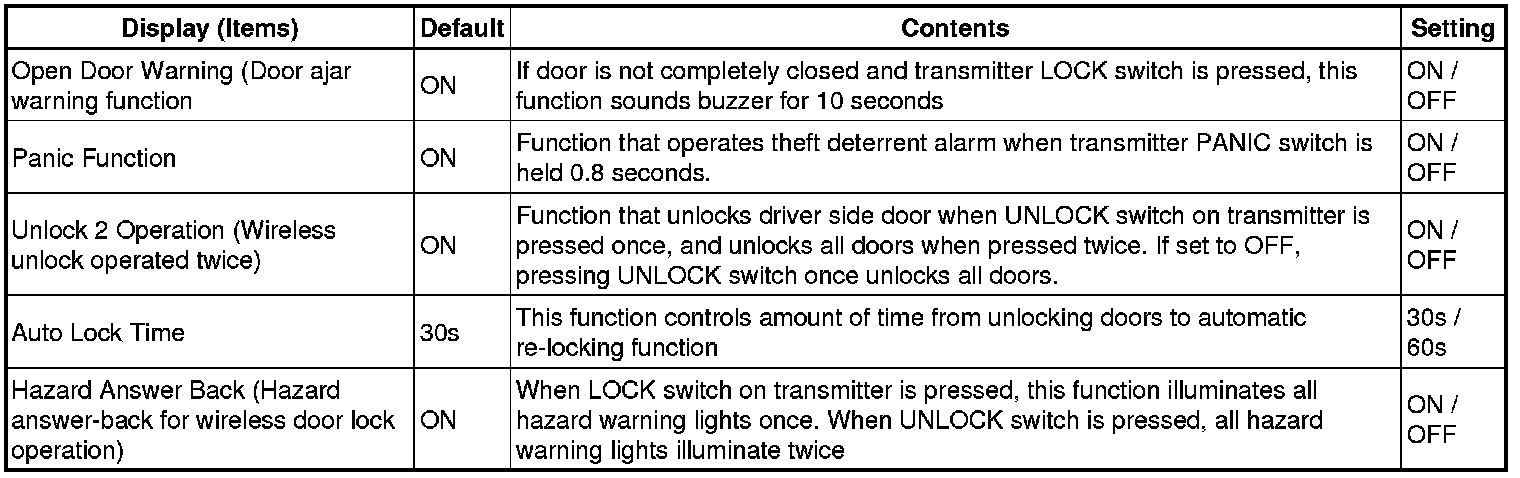

5. WIRELESS DOOR LOCK CONTROL SYSTEM (without Smart Key System)

Wireless door lock control system:

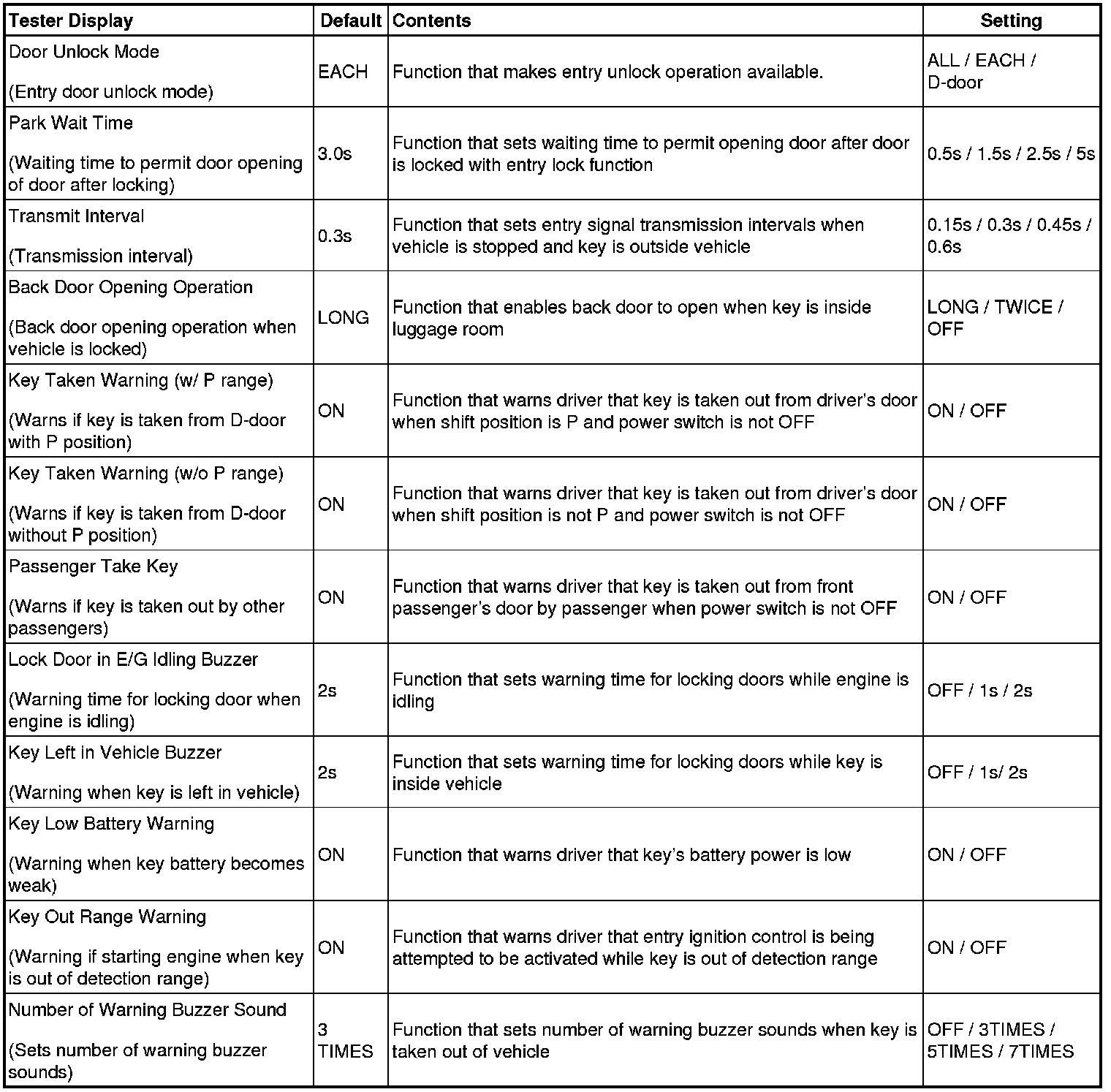

6. SMART KEY SYSTEM

Smart Key System
