Downhill Assist Control Switch








BRAKE CONTROL: DOWNHILL ASSIST CONTROL SWITCH: INSPECTION

INSPECTION

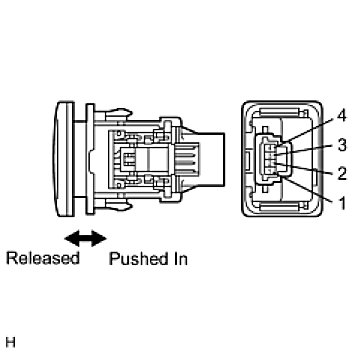

1. CHECK DOWNHILL ASSIST CONTROL SWITCH






(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the switch.
(b) Check illumination operation.
(1) Connect the battery's positive (+) lead to terminal 3 and negative (-) lead to terminal 2. Then check that the bulb illuminates.
OK:
Bulb illuminates.
If the result is not as specified, replace the switch.
