Fuel Injector

B13 (Fuel Injector (No.4)):



B14 (Fuel Injector (No.3)):

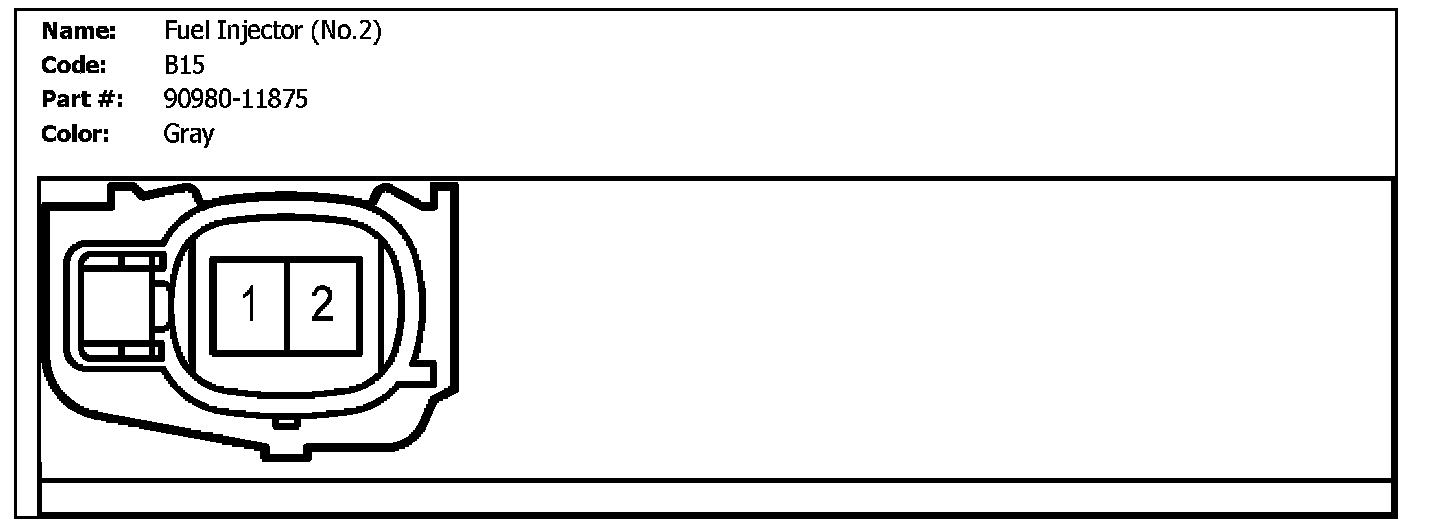

B15 (Fuel Injector (No.2)):



B16 (Fuel Injector (No.1)):

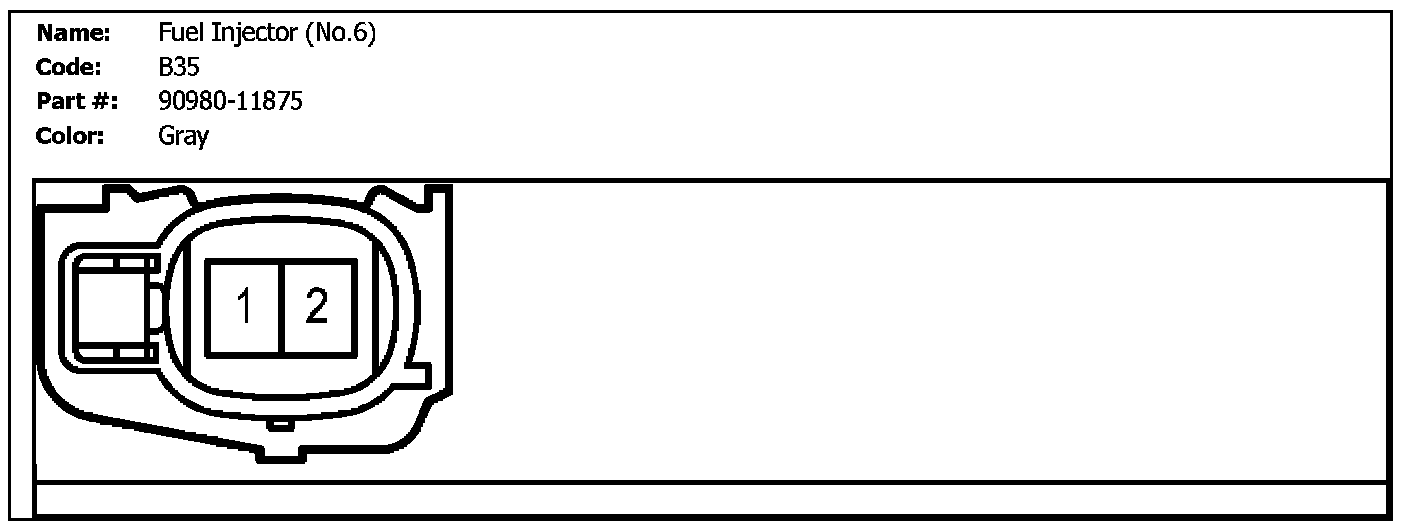

B35 (Fuel Injector (No.6)):

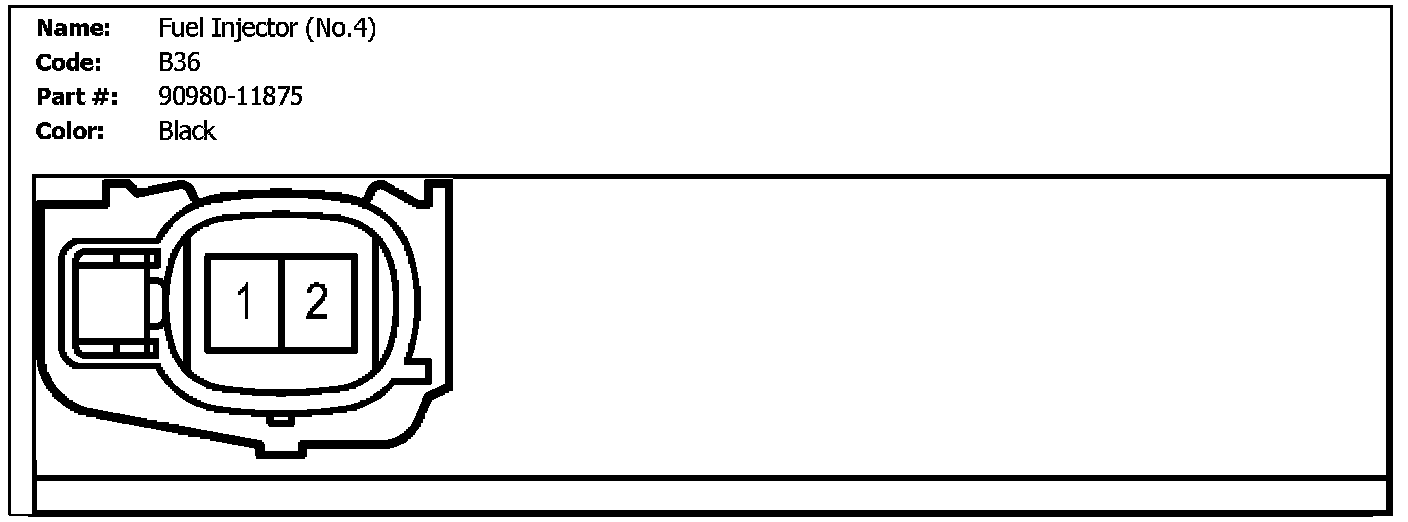

B36 (Fuel Injector (No.4)):



B37 (Fuel Injector (No.2)):

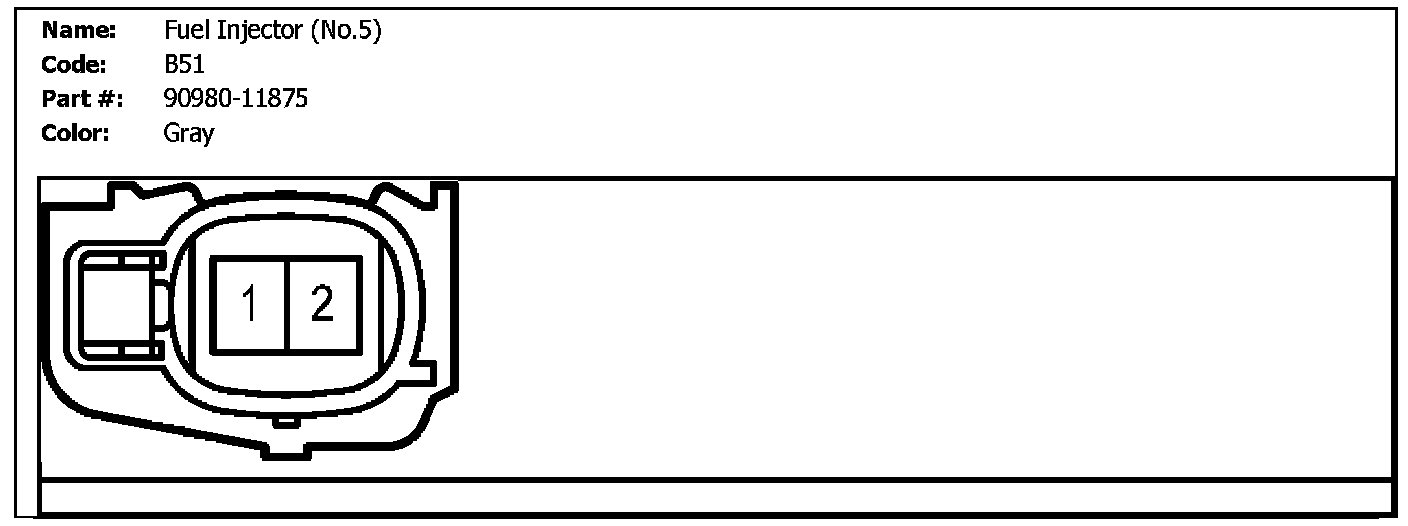

B51 (Fuel Injector (No.5)):

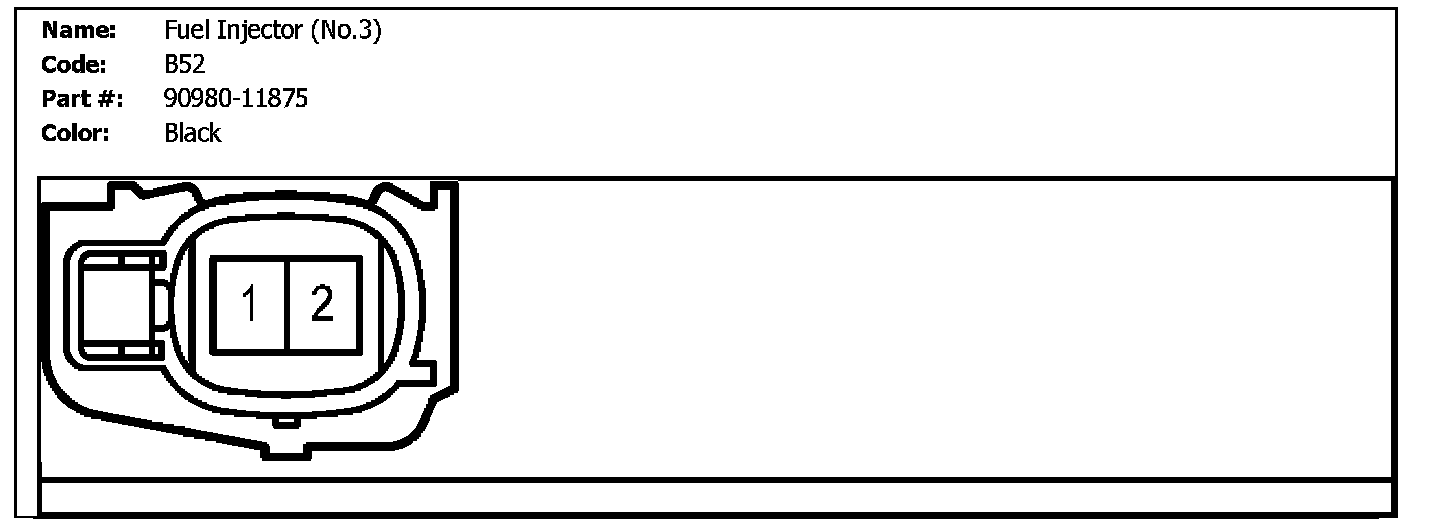

B52 (Fuel Injector (No.3)):

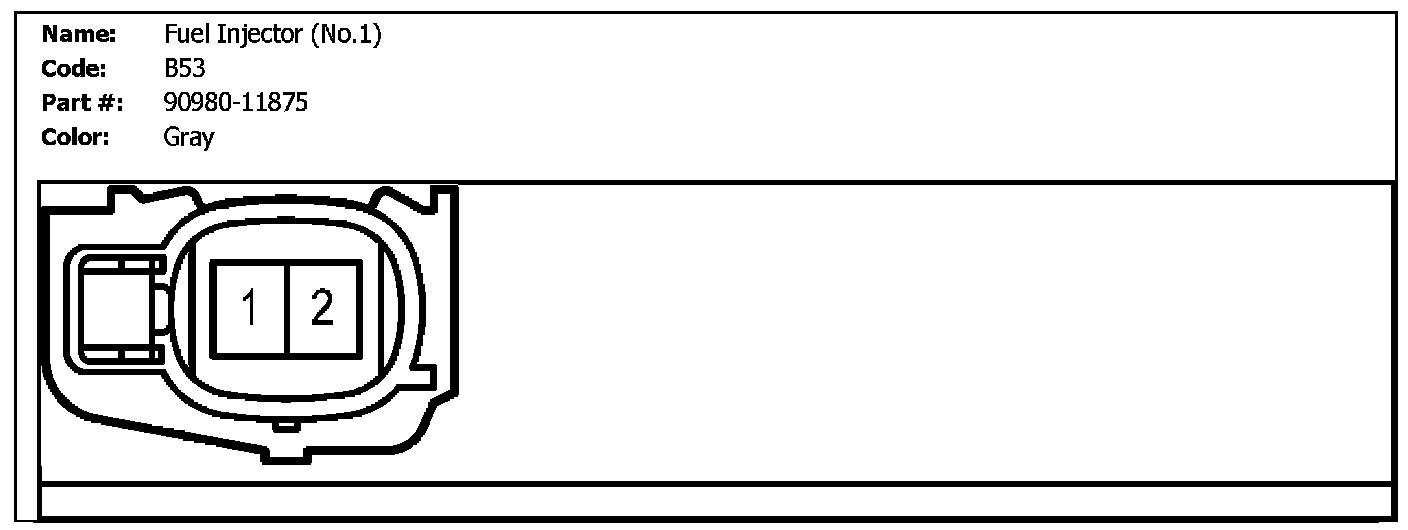

B53 (Fuel Injector (No.1)):
