Starter Relay: Testing and Inspection

2AZ-FE STARTING: STARTER RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STARTER RELAY
(a) Remove the starter relay from the No. 7 relay block.
3. INSPECT STARTER RELAY

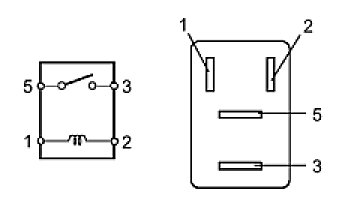

(a) Measure the resistance of the relay.

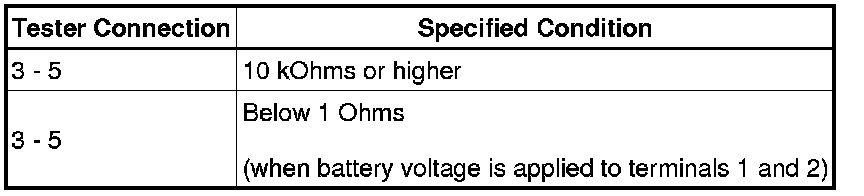

Standard resistance:





If the resistance is not as specified, replace the relay.
4. INSTALL STARTER RELAY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
