Crankshaft, Engine

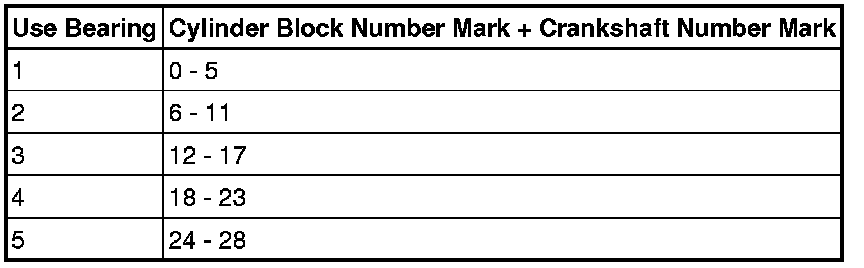

Journal bearing:EXAMPLE:
Cylinder block "11" +
Crankshaft "06" = Total number 17 (Use bearing "3")

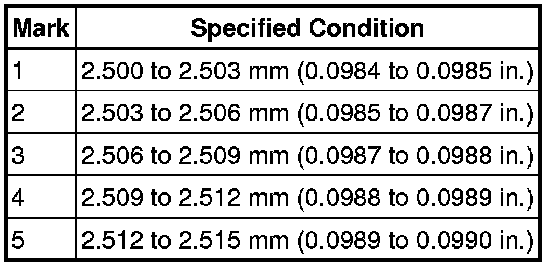

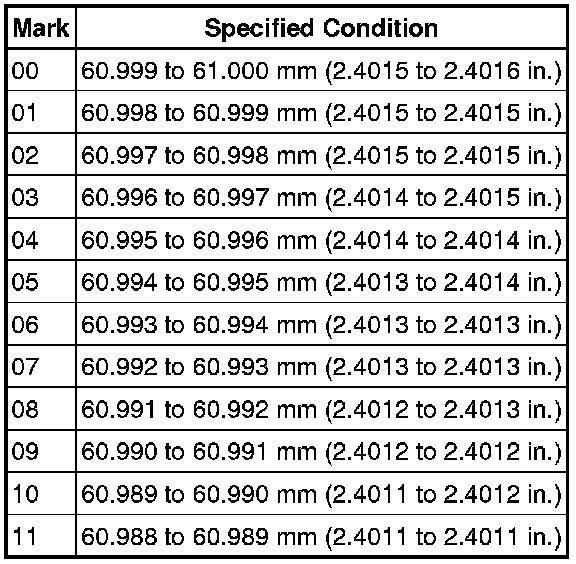

Standard crankshaft main journal diameter:Standard upper bearing center wall thickness No. 1 and No. 4 journal:No. 2 and No. 3 journal:Standard lower bearing center wall thickness No. 1 and No. 4 journal:No. 2 and No. 3 journal:Standard crank pin diameter:52.992 to 53.000 mm (2.0863 to 2.0866 in.)
