Timing Cover

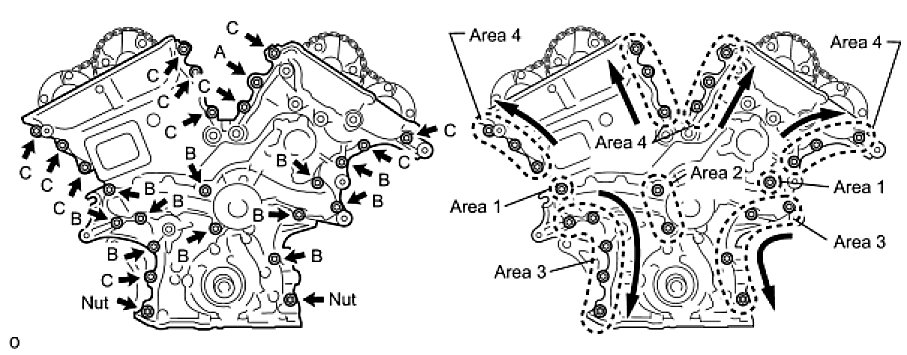

TIMING COVERBolt length: 40 mm (1.57 in.) for bolt A
55 mm (2.17 in.) for bolt B
25 mm (0.98 in.) for bolt C
Tighten the bolts in this order: Area 1, Area 2, Area 3, Area 4.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf) for Area 1, 2 bolt
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf) for Area 3 bolt, nut
Torque: 43 Nm (438 kgf-cm, 32 ft-lbf) for Area 4 bolt A
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf) for Area 4 except bolt A
