Installation

2GR-FE CHARGING: GENERATOR: INSTALLATION

INSTALLATION

1. INSTALL GENERATOR ASSEMBLY






(a) Install the generator with the 2 bolts.
Torque: 43 Nm (438 kgf-cm, 32 ft-lbf)

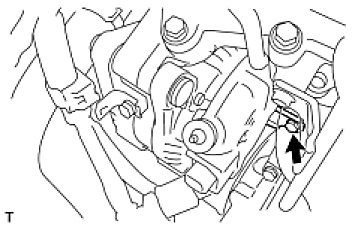

(b) Install the bolt to the cylinder block.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)






(c) Connect the generator connector to the generator.
(d) Connect the generator wire with the nut.
Torque: 9.8 Nm (100 kgf-cm, 88 in-lbf)
(e) Install the terminal cap.

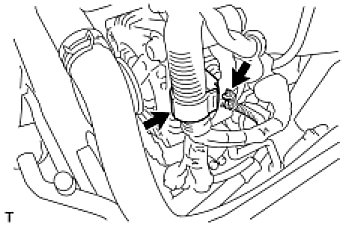

(f) Connect the 2 wire harness clamps.
2. INSTALL FAN AND GENERATOR V BELT

3. INSTALL RADIATOR RESERVOIR TANK

4. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT RH

5. INSTALL ENGINE UNDER COVER REAR RH

6. INSTALL FRONT WHEEL RH
7. INSTALL RADIATOR ASSEMBLY
(a) Install the radiator.
