Installation








2GR-FE STARTING: STARTER: INSTALLATION

INSTALLATION

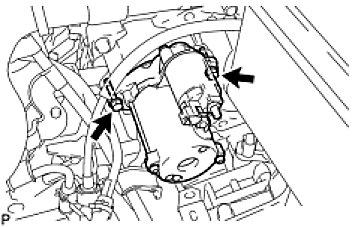

1. INSTALL STARTER ASSEMBLY






(a) Install the starter with the 2 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)

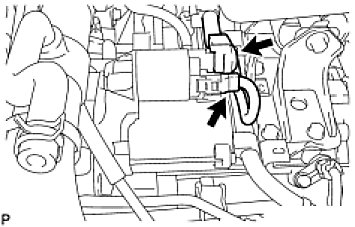

(b) Connect the starter connector.
(c) Install the terminal nut and cover the nut with the cap.
Torque: 9.8 Nm (100 kgf-cm, 88 in-lbf)

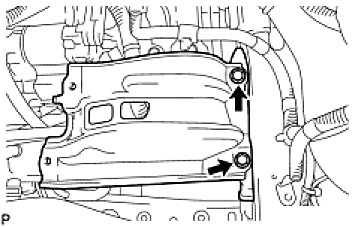

2. INSTALL BATTERY BRACKET REINFORCEMENT






(a) Install the battery bracket reinforcement with the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)

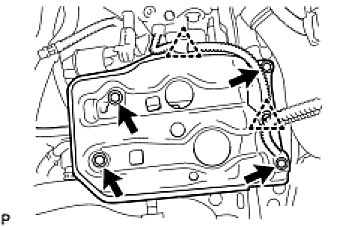

3. INSTALL FRONT BATTERY CARRIER






(a) Install the front battery carrier with the 4 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the 2 clamps of the engine wire.
4. INSTALL BATTERY TRAY
5. INSTALL BATTERY
6. INSTALL BATTERY INSULATOR
7. INSTALL BATTERY CLAMP SUB-ASSEMBLY
(a) Install the battery clamp by tightening the bolt and nut.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf) for nut
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf) for bolt
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
