Installation








SEAT: POWER SEAT CONTROL ECU (for LH Side): INSTALLATION

INSTALLATION

1. INSTALL FOLD SEAT CONTROL ECU

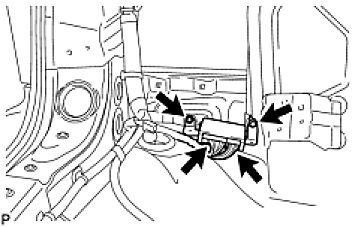

(a) Install the fold seat control ECU with 2 bolts.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
(b) Engage the 2 connectors.
2. INSTALL W/ BOX NO. 1 SPEAKER ASSEMBLY (for 14 Speakers) Installation

3. INSTALL QUARTER TRIM PANEL ASSEMBLY LH (for Manual Seat) Installation

4. INSTALL QUARTER TRIM PANEL ASSEMBLY LH (for Power Seat) Installation

5. INSTALL REAR FLOOR MAT SUPPORT PLATE Installation

6. INSTALL ROPE HOOK ASSEMBLY Installation

7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation

8. INSTALL REAR DOOR SCUFF PLATE LH Installation

9. INSTALL REAR FLOOR STEP NO. 1 COVER Installation

10. INSTALL REAR FLOOR STEP NO. 2 COVER Installation

11. INSTALL REAR SEAT CUSHION HINGE LOWER COVER LH Installation

12. INSTALL REAR NO. 2 SEAT ASSEMBLY LH (for Manual Seat)
(a) Install the rear No. 2 seat assembly LH Installation.
13. INSTALL REAR NO. 2 SEAT ASSEMBLY LH (for Power Seat)
(a) Install the rear No. 2 seat assembly LH Installation.
