SEAT: POWER SEAT CONTROL ECU (for RH Side): INSTALLATION

INSTALLATION

1. INSTALL FOLD SEAT CONTROL ECU

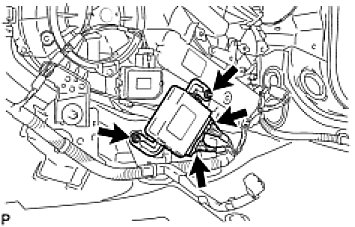

(a) Install the fold seat control ECU with the 2 nuts.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
(b) Connect the 2 connectors.
2. INSTALL QUARTER TRIM PANEL ASSEMBLY RH (for Manual Seat) Installation

3. INSTALL QUARTER TRIM PANEL ASSEMBLY RH (for Power Seat) Installation

4. INSTALL REAR FLOOR MAT SUPPORT PLATE Installation

5. INSTALL ROPE HOOK ASSEMBLY Installation

6. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation

7. INSTALL REAR DOOR SCUFF PLATE RH Installation

8. INSTALL REAR FLOOR STEP NO. 1 COVER Installation

9. INSTALL REAR FLOOR STEP NO. 2 COVER Installation

10. INSTALL REAR SEAT CUSHION HINGE LOWER COVER RH Installation

11. INSTALL REAR NO. 2 SEAT ASSEMBLY RH (for Manual Seat)
(a) Install the rear No. 2 seat assembly RH Installation.
12. INSTALL REAR NO. 2 SEAT ASSEMBLY RH (for Power Seat)
(a) Install the rear No. 2 seat assembly RH Installation.
