Service Data
SPECIFICATIONS: AB60E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

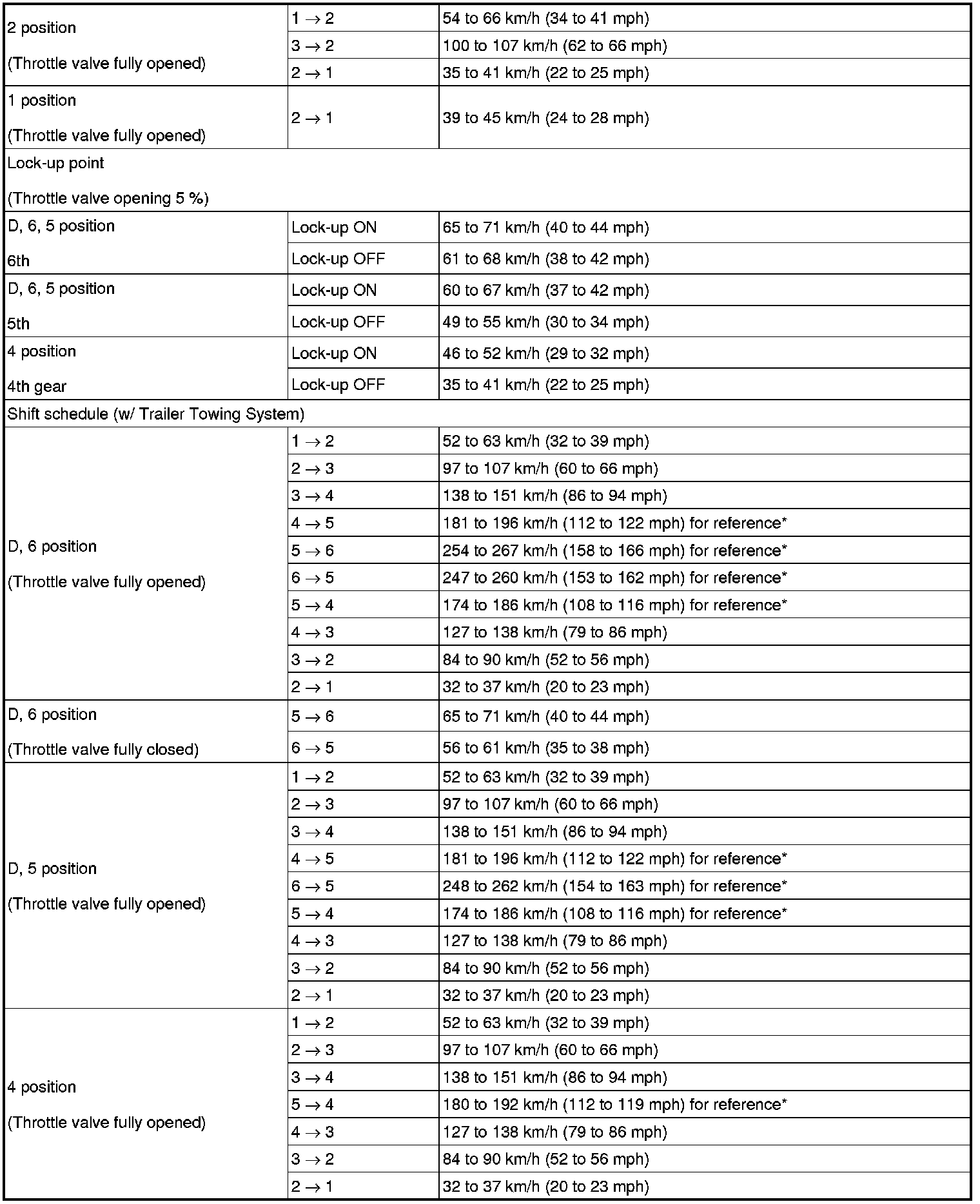

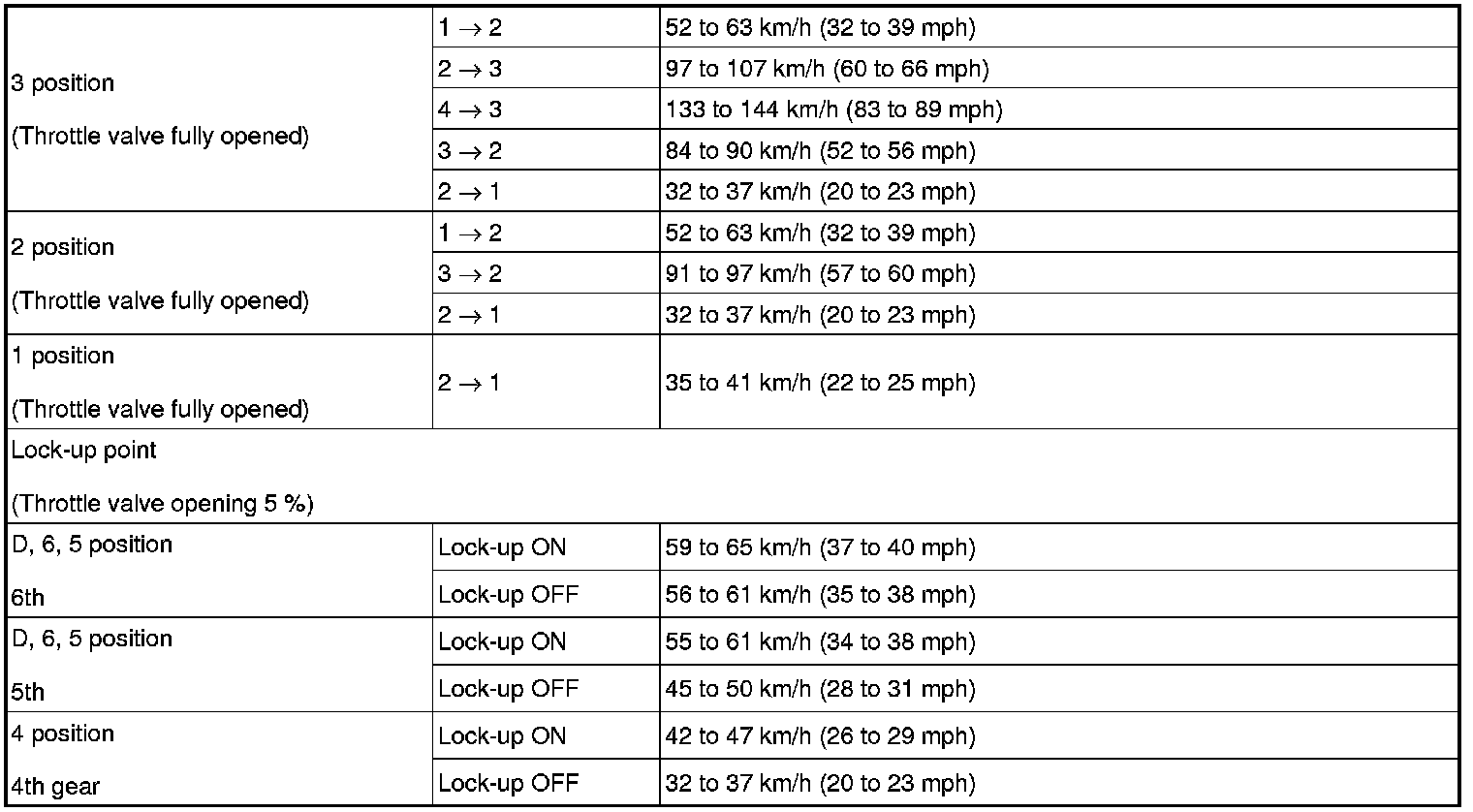

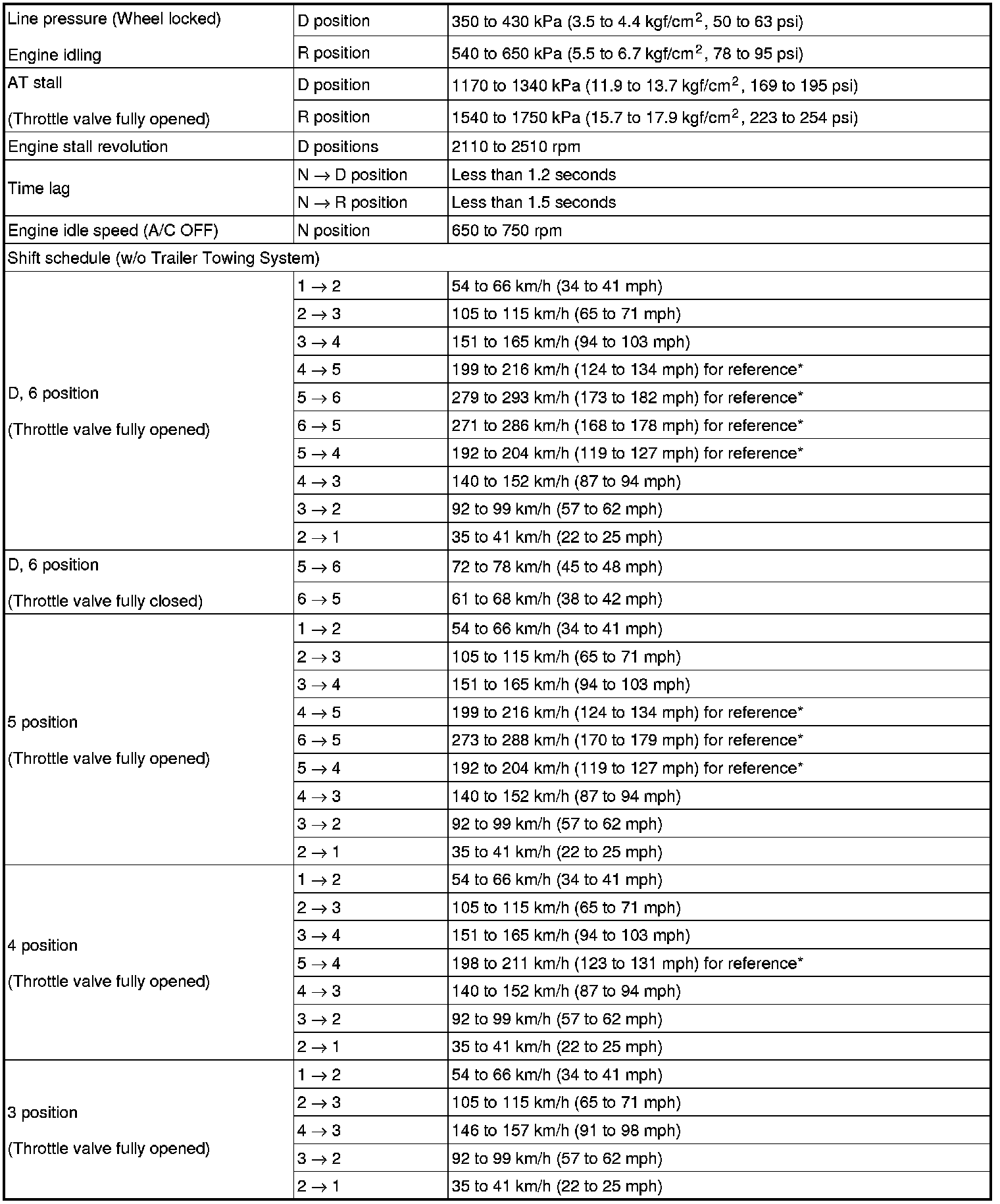

SERVICE DATA
*: Maximum speed is 180 km/h (112 mph), so this value is for reference.
CAUTION: Strictly observe speed limits when performing the confirmation.
TORQUE CONVERTER CLUTCH AND DRIVE PLATE

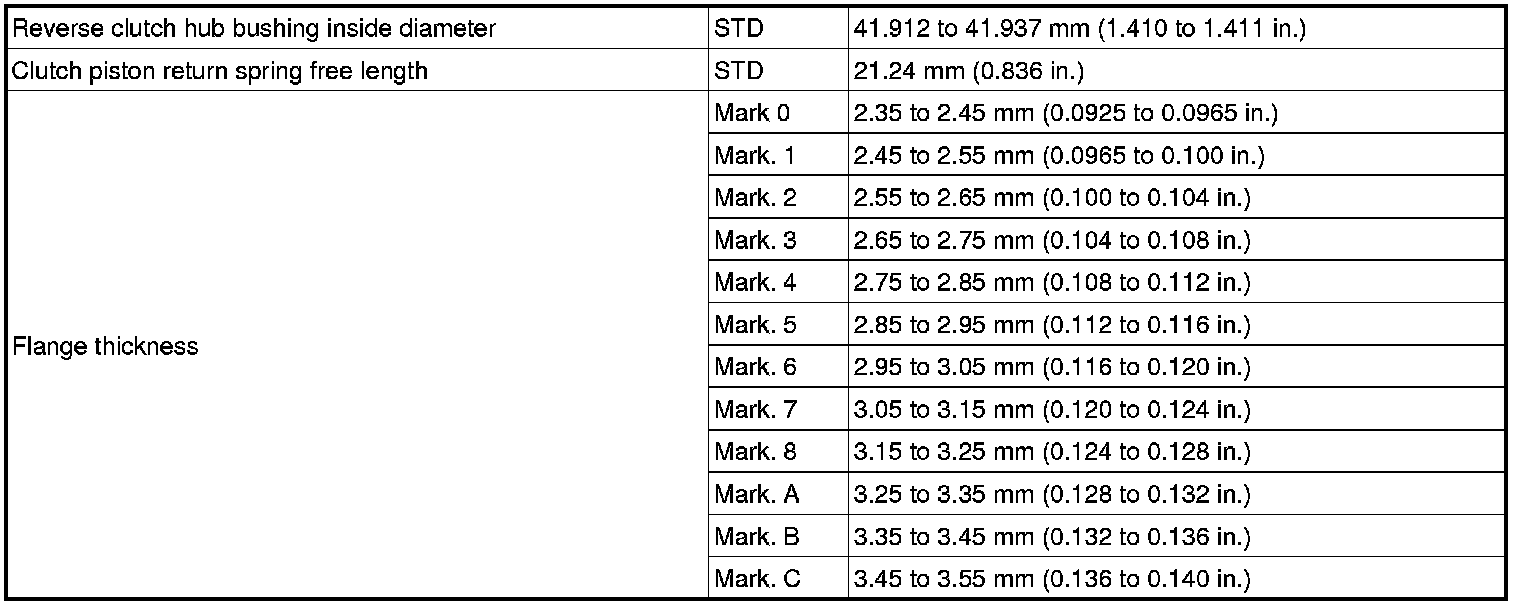

REVERSE CLUTCH

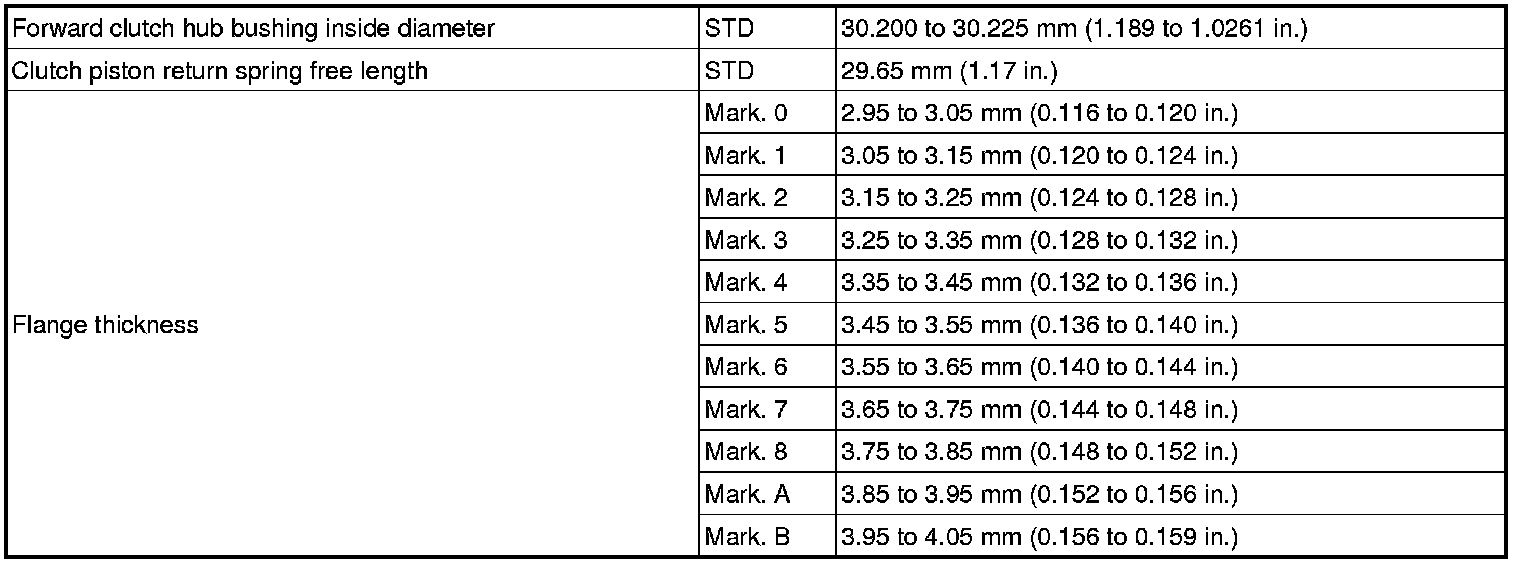

FORWARD CLUTCH
DIRECT CLUTCH
NO. 3 BRAKE
FRONT PLANETARY GEAR
NO. 1 BRAKE
NO. 2 BRAKE
CENTER PLANETARY GEAR

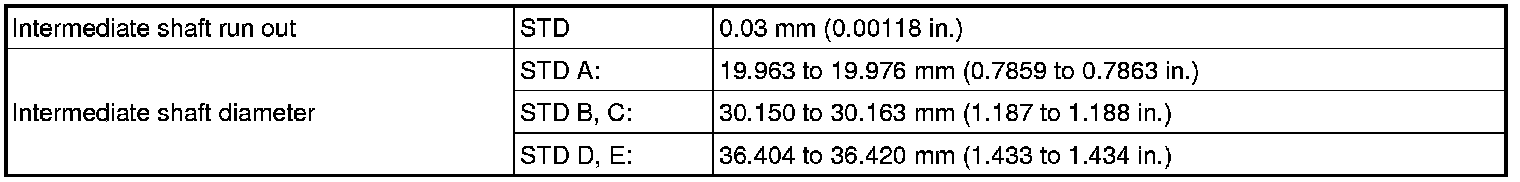

INTERMEDIATE SHAFT
REAR PLANETARY GEAR
NO. 4 BRAKE
OUTPUT SHAFT BEARING

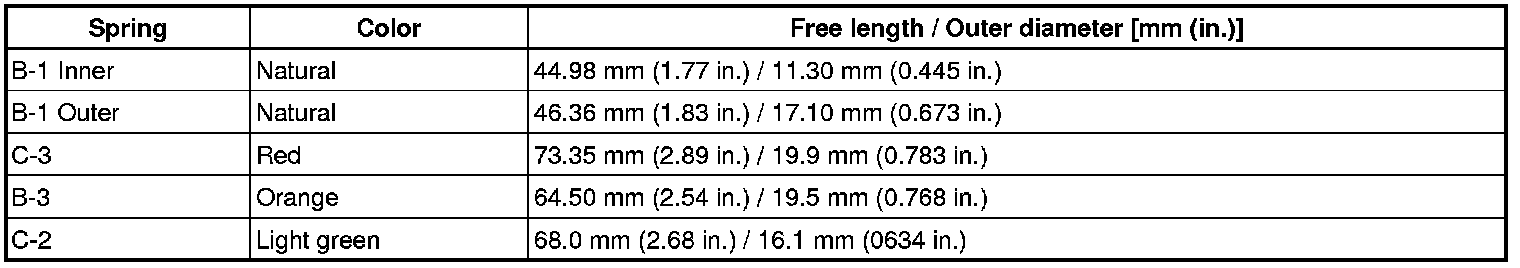

ACCUMULATOR

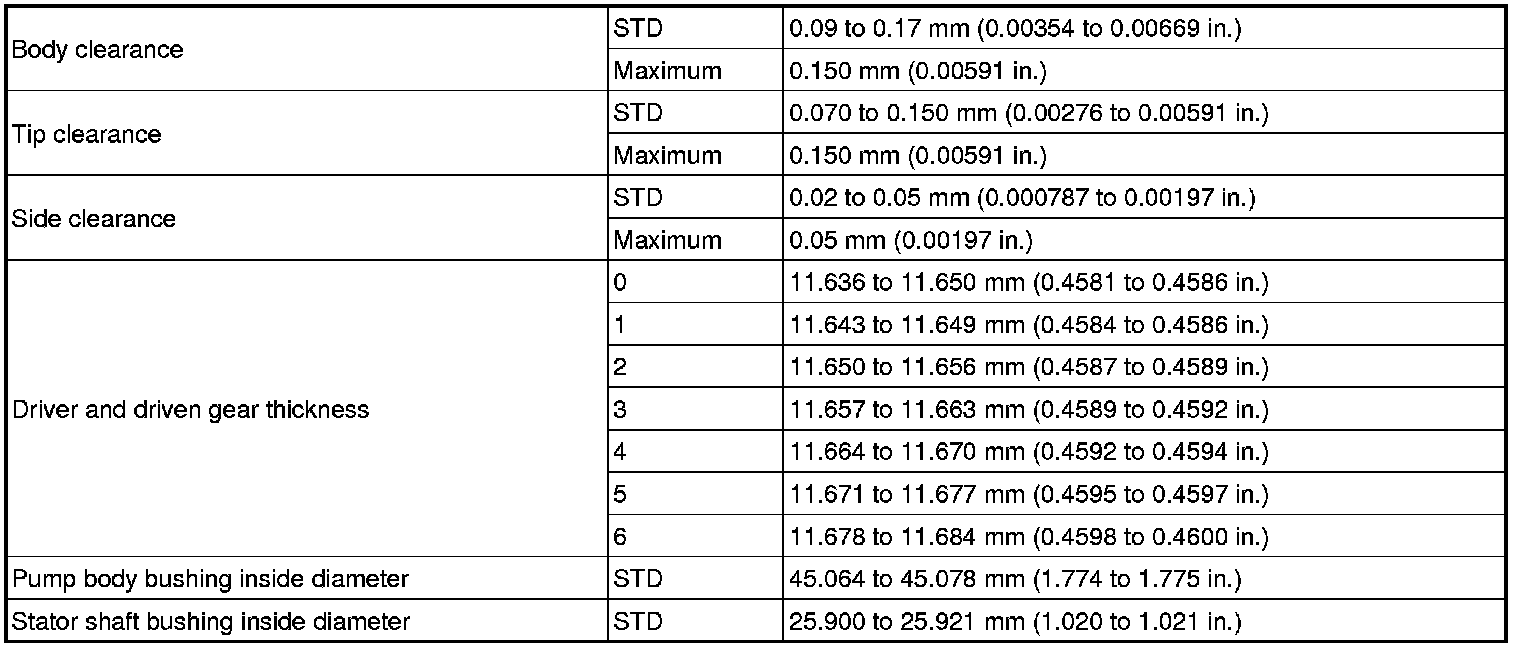

OIL PUMP
