Intake Manifold

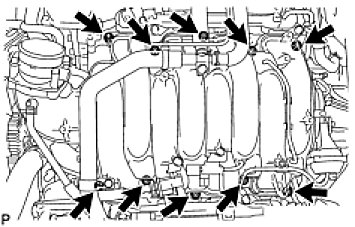

INTAKE MANIFOLD Install and uniformly tighten the 8 bolts and 2 nuts in several steps.
Torque
21 Nm (214 kgf-cm, 16 ft-lbf)
THROTTLE BODY ASSEMBLY
Install the throttle W/ motor body with the 4 bolts.
Torque
10 Nm (102 kgf-cm, 7 ft-lbf)
