Removal
2AZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:
REMOVAL
HINT: A bolt without a torque specification is shown in the standard bolt chart (Standard Bolt - Specified Torque For Standard Bolts).

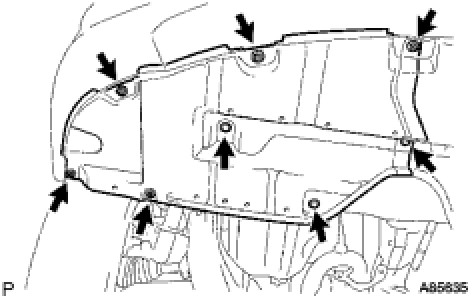

1. REMOVE ENGINE UNDER COVER RH
(a) Remove the 5 screws, 3 clips and under cover.

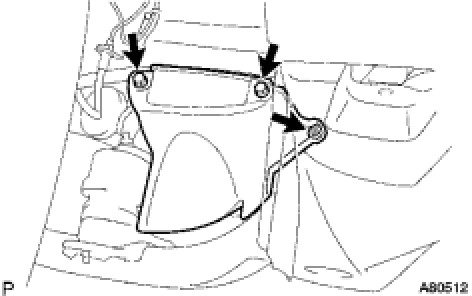

2. REMOVE FRONT FENDER APRON SEAL RH
(a) Remove the clip, 2 bolts and apron seal.

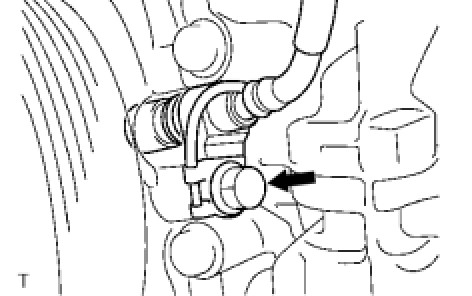

3. REMOVE CRANKSHAFT POSITION SENSOR
(a) Disconnect the sensor connector.
(b) Remove the bolt, clamp and sensor.
