2AZ-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR:REMOVAL 1.
DRAIN ENGINE COOLANT
HINT: (
Service and Repair).
2.
REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
3.
REMOVE THROTTLE BODY ASSEMBLY
HINT: (
Removal).
4.

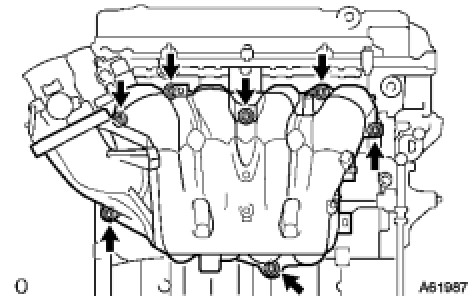

REMOVE INTAKE MANIFOLD
(a)
Remove the 5 bolts, 2 nuts, intake manifold and gasket.
5.
REMOVE

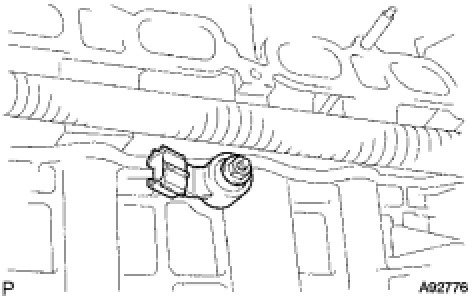

KNOCK SENSOR (a)
Disconnect the
knock sensor connector.
(b)
Remove the nut and
knock sensor.
