Oil Pump, Engine

OIL PUMP

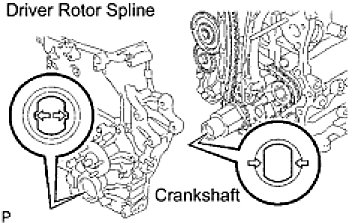

- Align the oil pump's drive rotor spline and the crankshaft as shown in the illustration. Install the spline and chain cover onto the crankshaft.
- Loosely install the oil pump with the 19 bolts and 2 nuts, but do not tighten the bolts and nuts yet.





- Provisionally install the oil pump with the 19 bolts and 2 nuts.

NOTE: If the vehicle is equipped with air conditioning, install bolts A' and B' when installing the idle pulley with bracket since they are for this purpose.

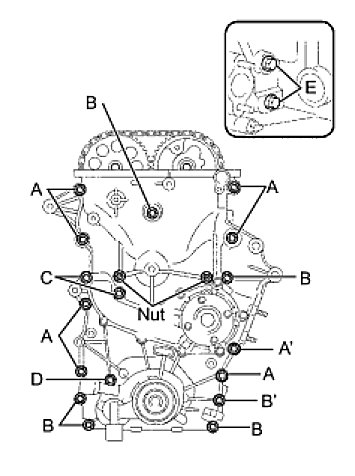

HINT: Bolt length:
75 mm (2.95 in.) for bolt A, B
87 mm (3.43 in.) for bolt C
95 mm (3.74 in.) for bolt D
35 mm (1.37 in.) for bolt E

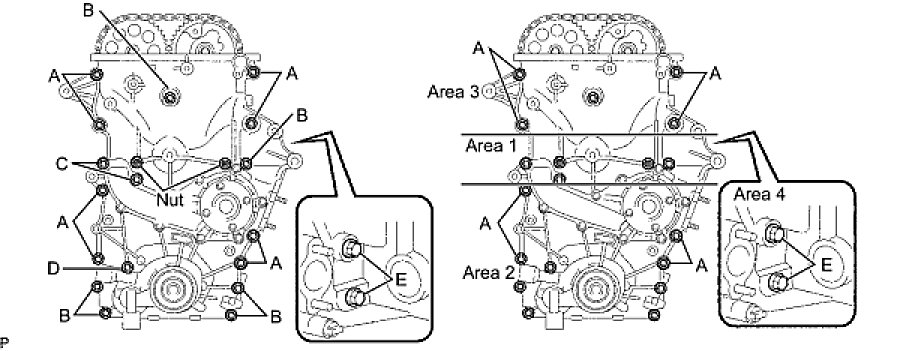

- Fully tighten the bolts and nuts, except bolts A, in the following order: Area 1, Area 3 and then Area 2.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)

- Fully tighten the bolts A in the following order: Area 2 and then Area 3.
Torque: 46 Nm (469 kgf-cm, 34 ft-lbf)

- Fully tighten the bolts E in Area 4.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
