Removal
2TR-FE CHARGING: GENERATOR:REMOVAL 1.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2.
REMOVE FAN AND GENERATOR V BELT
3.
REMOVE GENERATOR ASSEMBLY

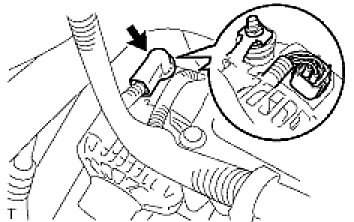

(a)
Remove the terminal cap.
(b)
Remove the nut, then remove the generator wire.
(c)
Disconnect the generator connector.

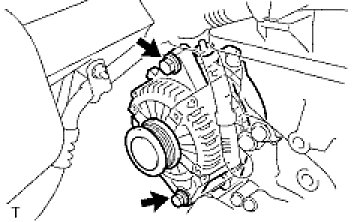

(d)
Remove the 2 bolts, then remove the generator.
