Installation

ENGINE IMMOBILISER: TRANSPONDER KEY ECU:

INSTALLATION

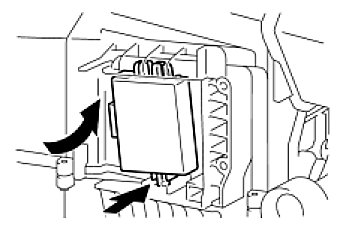

1. INSTALL TRANSPONDER KEY ECU





(a) Hook the upper part of the ECU and the lower part in that order to install the ECU.

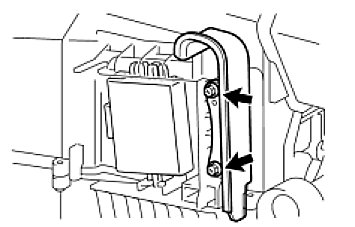

2. INSTALL TRANSPONDER KEY BRACKET (w/ Bracket)





(a) Install the transponder key bracket with the 2 screws.
3. INSTALL AIR CONDITIONING UNIT
(a) Install the air conditioning unit (Installation).
4. REGISTER ECU - ECM COMMUNICATION ID
(a) Register the ECU - ECM communication ID (Engine Immobiliser System).
