Removal








DOOR LOCK: DOOR CONTROL RECEIVER (for Regular Cab):

REMOVAL

1. REMOVE UPPER BACK PANEL GARNISH (Removal)

2. REMOVE LUGGAGE COMPARTMENT BOX LH (Removal)

3. REMOVE LUGGAGE COMPARTMENT BOX RH (Removal)

4. REMOVE FRONT DOOR SCUFF PLATE RH
(a) Remove the front door scuff plate (Removal).

HINT: The procedures listed below are for the LH side.

5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
6. REMOVE LOWER QUARTER TRIM PANEL ASSEMBLY RH (Removal)

7. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH (Removal)

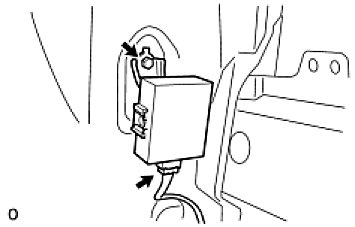

8. REMOVE DOOR CONTROL RECEIVER
(a) Disconnect the door control receiver connector.
(b) Remove the bolt and receiver.
