Installation








CRUISE CONTROL MAIN SWITCH:

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH

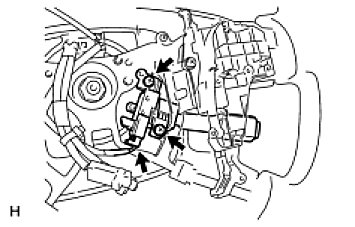

(a) Install the switch, as shown in the illustration.





(b) Install the 2 screws.
(c) Connect the connector.
2. INSTALL STEERING PAD (w/ Steering Pad Switch) (Installation)

3. INSTALL STEERING PAD (w/o Steering Pad Switch) (Installation)

4. INSTALL LOWER NO. 3 STEERING WHEEL COVER (Installation)

5. INSTALL LOWER NO. 2 STEERING WHEEL COVER (Installation)

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTE: Some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).

7. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light (Diagnosis System).
