Removal








AIR CONDITIONING AMPLIFIER:

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE RH
(a) for Regular Cab:
Remove the front door scuff plate (Removal).
(b) for Double Cab:
Remove the front door scuff plate (Removal).
(c) for CrewMax:
Remove the front door scuff plate (Removal).
2. REMOVE COWL SIDE TRIM BOARD RH
(a) for Regular Cab:
Remove the cowl side trim board (Removal).
(b) for Double Cab:
Remove the cowl side trim board (Removal).
(c) for CrewMax:
Remove the cowl side trim board (Removal).
3. REMOVE INSTRUMENT SIDE PANEL RH
(a) for Column Shift Type:
Remove the instrument side panel (Removal).
(b) for Floor Shift Type:
Remove the instrument side panel (Removal).
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH
(a) for Column Shift Type:
Remove the instrument panel finish panel (Removal).
(b) for Floor Shift Type:
Remove the instrument panel finish panel (Removal).

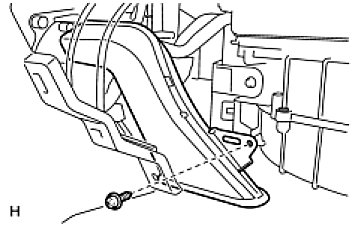

5. REMOVE NO. 2 AIR DUCT SUB-ASSEMBLY
(a) Remove the screw and duct.

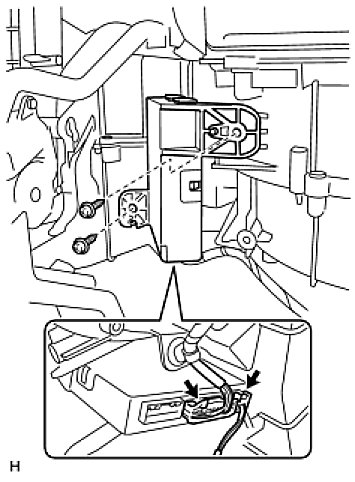

6. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
(a) Disconnect the 2 connectors.
(b) Remove the 2 screws and amplifier.
