Installation

DOOR LOCK: DOOR CONTROL RECEIVER (for CrewMax):

INSTALLATION

1. INSTALL DOOR CONTROL RECEIVER
(a) Install the receiver with the bolt.
(b) Connect the door control receiver connector.
2. INSTALL LOWER QUARTER TRIM PANEL ASSEMBLY RH Installation

3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
4. INSTALL REAR DOOR SCUFF PLATE RH

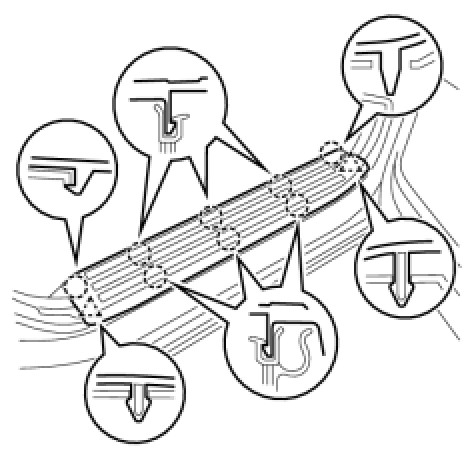

(a) Attach the 8 claws and 2 clips to install the scuff plate.
5. INSTALL BACK PANEL TRIM RH Installation
