Installation

DOOR LOCK: DOOR CONTROL RECEIVER (for Regular Cab):

INSTALLATION

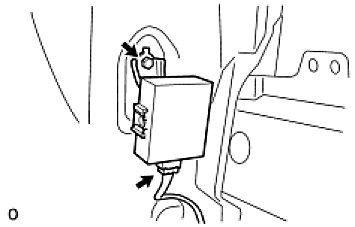

1. INSTALL DOOR CONTROL RECEIVER
(a) Install the receiver with the bolt.
(b) Connect the door control receiver connector.
2. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH (Installation)

3. INSTALL LOWER QUARTER TRIM PANEL ASSEMBLY RH (Installation)

4. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
5. INSTALL FRONT DOOR SCUFF PLATE RH
(a) Install the front door scuff plate (Installation).

HINT: The procedures listed below are for the LH side.

6. INSTALL LUGGAGE COMPARTMENT BOX RH (Installation)

7. INSTALL LUGGAGE COMPARTMENT BOX LH (Installation)

8. INSTALL UPPER BACK PANEL GARNISH (Installation)
