SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

SERVICE DATA

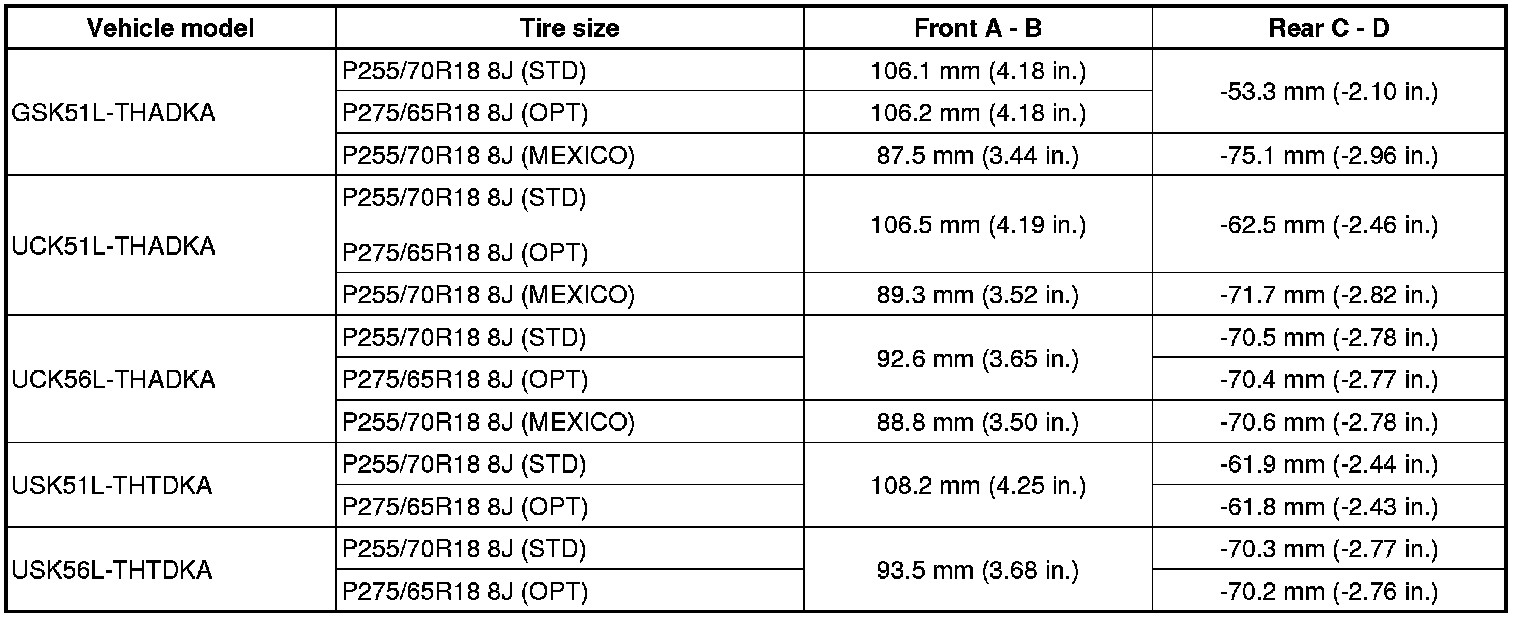

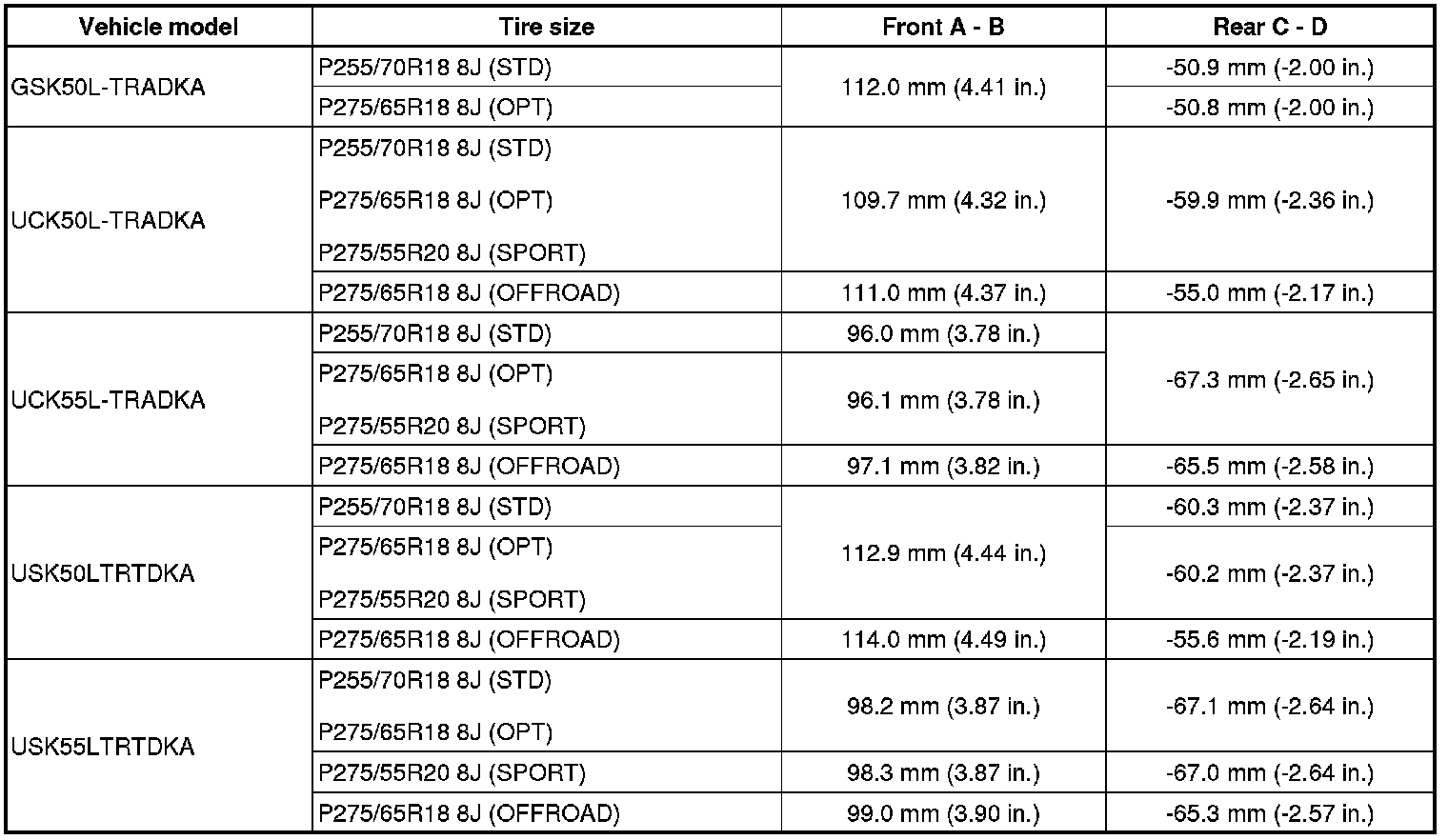

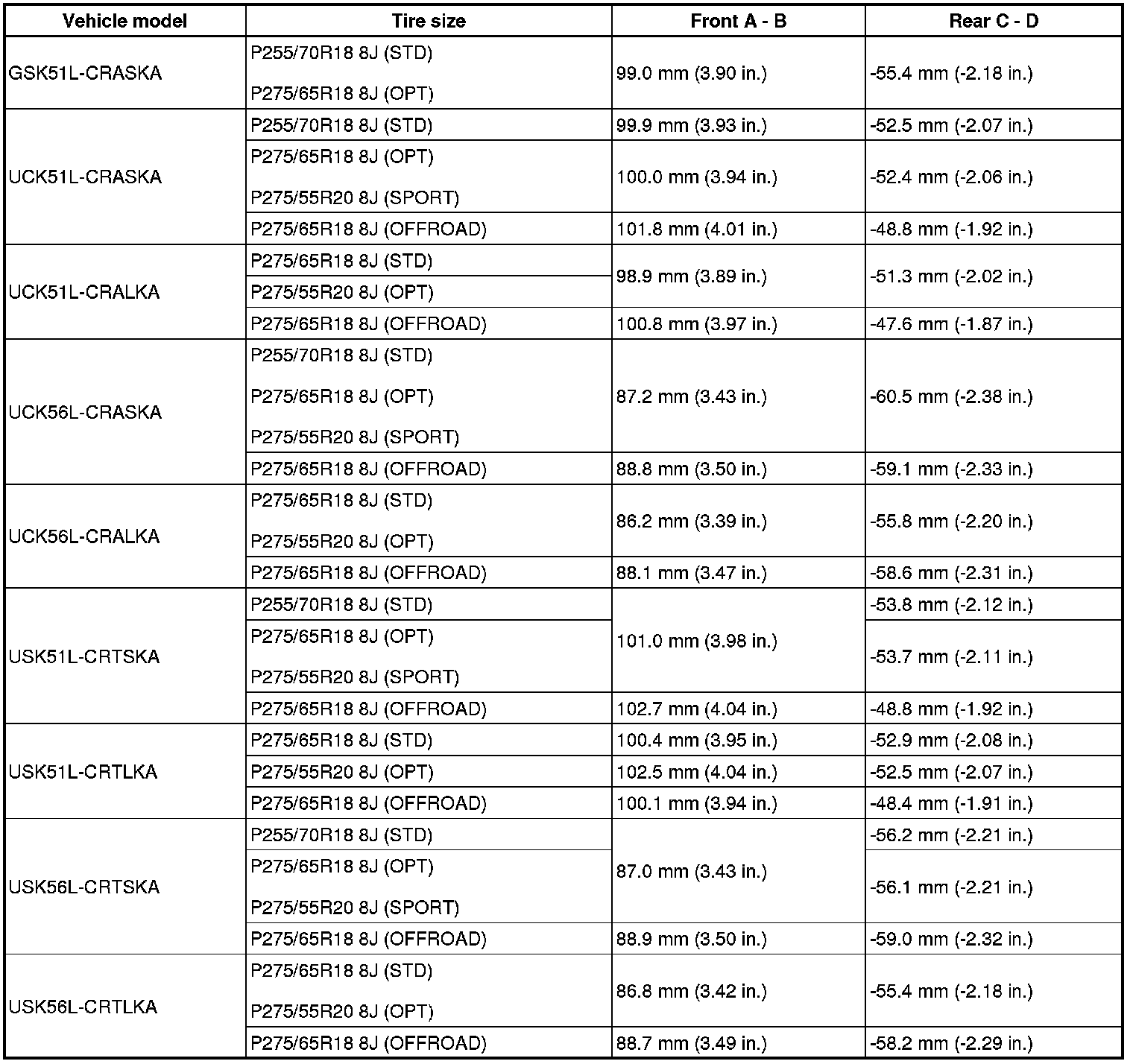

Standard vehicle height for Regular Cab of Standard Deck:

Standard vehicle height for Regular Cab of Long Deck:

Standard vehicle height for Double Cab of Standard Deck:

Standard vehicle height for Double Cab of Long Deck:

Standard vehicle height for CrewMax of standard deck:

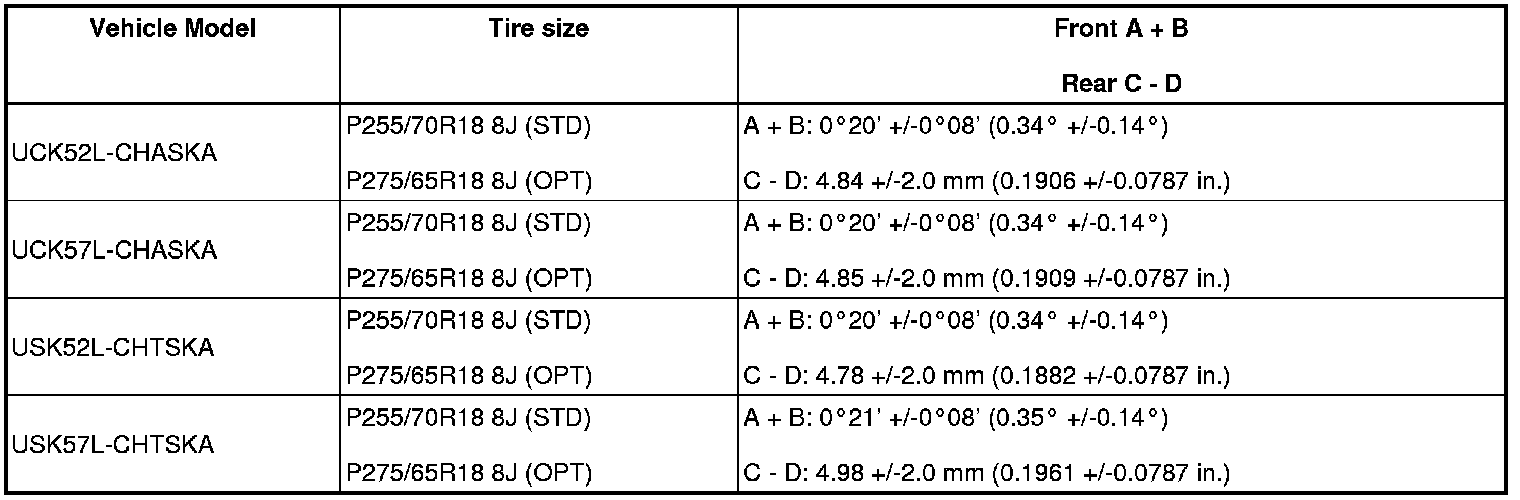

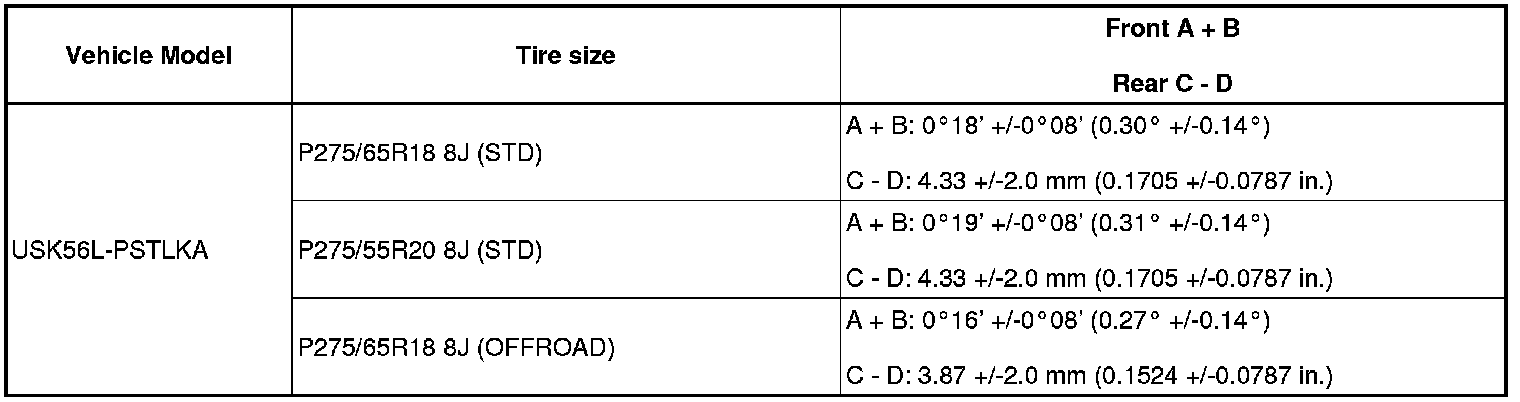

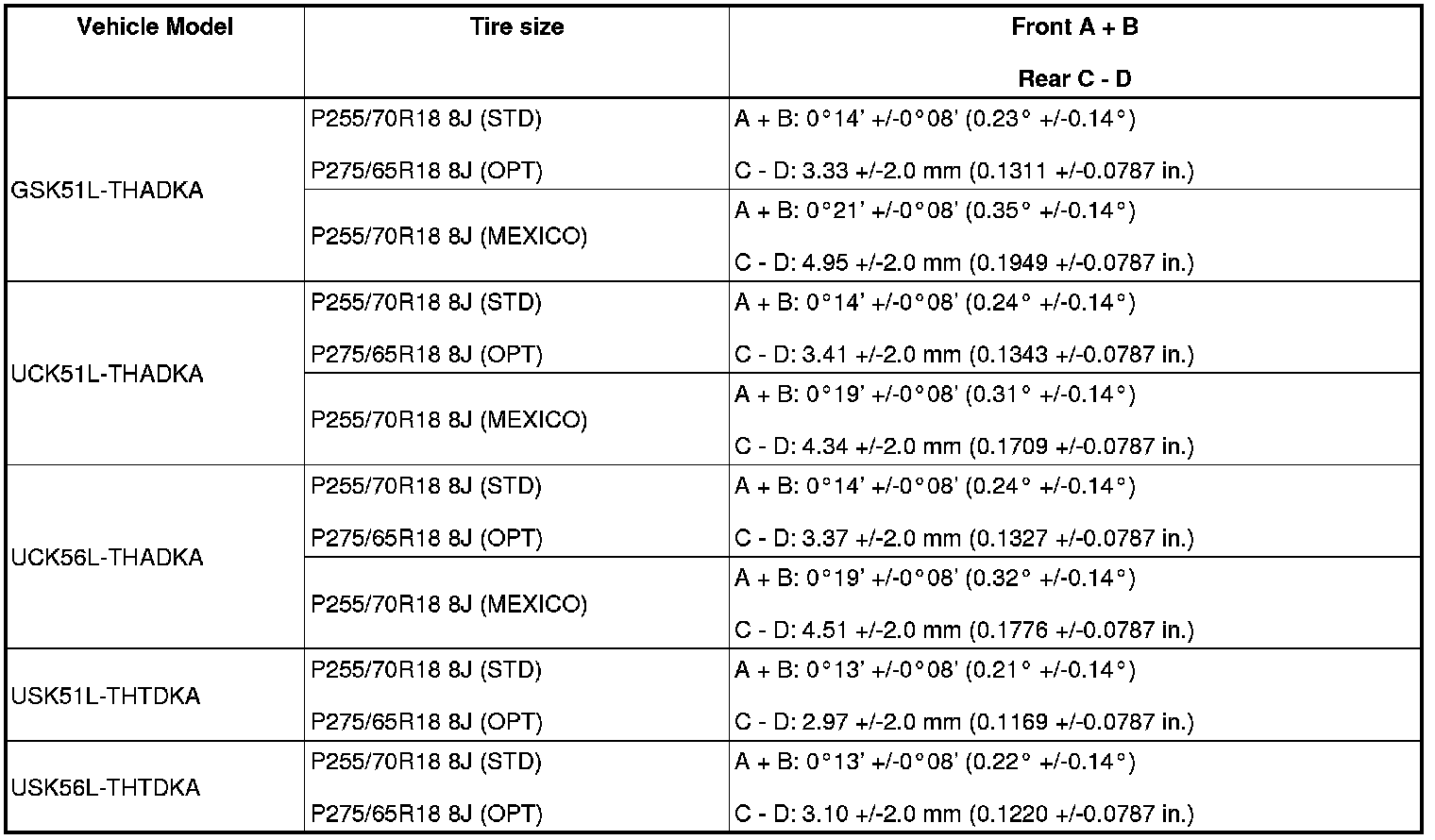

Standard toe-in for Regular Cab of Standard Deck:

Standard toe-in for Regular Cab of Long Deck:

Standard toe-in for Double Cab of Standard Deck:

Standard toe-in for Double Cab of Long Deck:

Standard toe-in for CrewMax of standard deck:

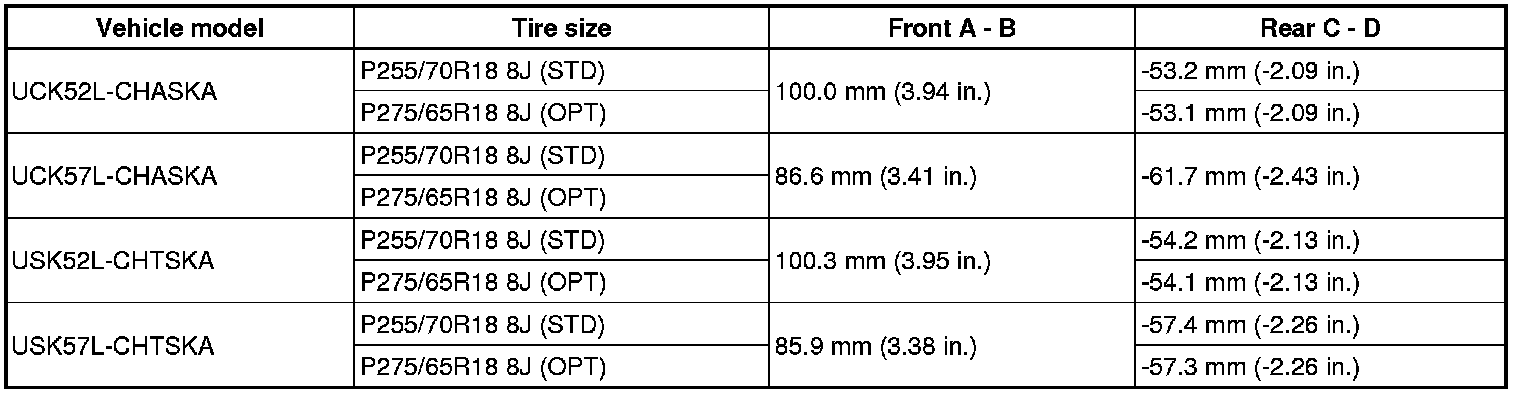

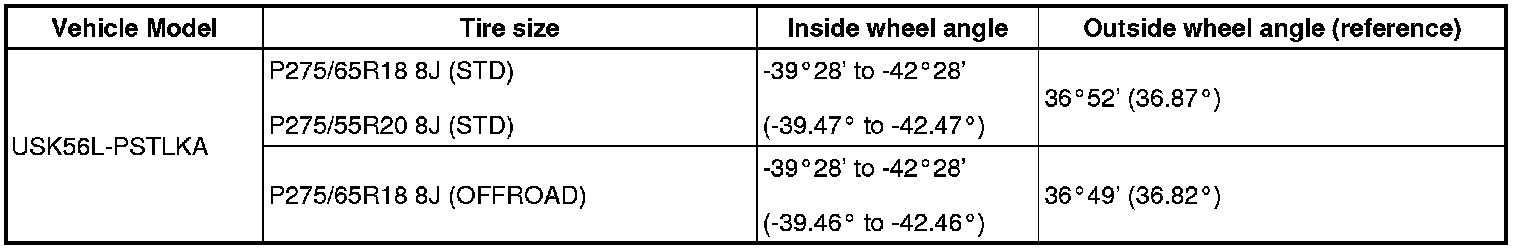

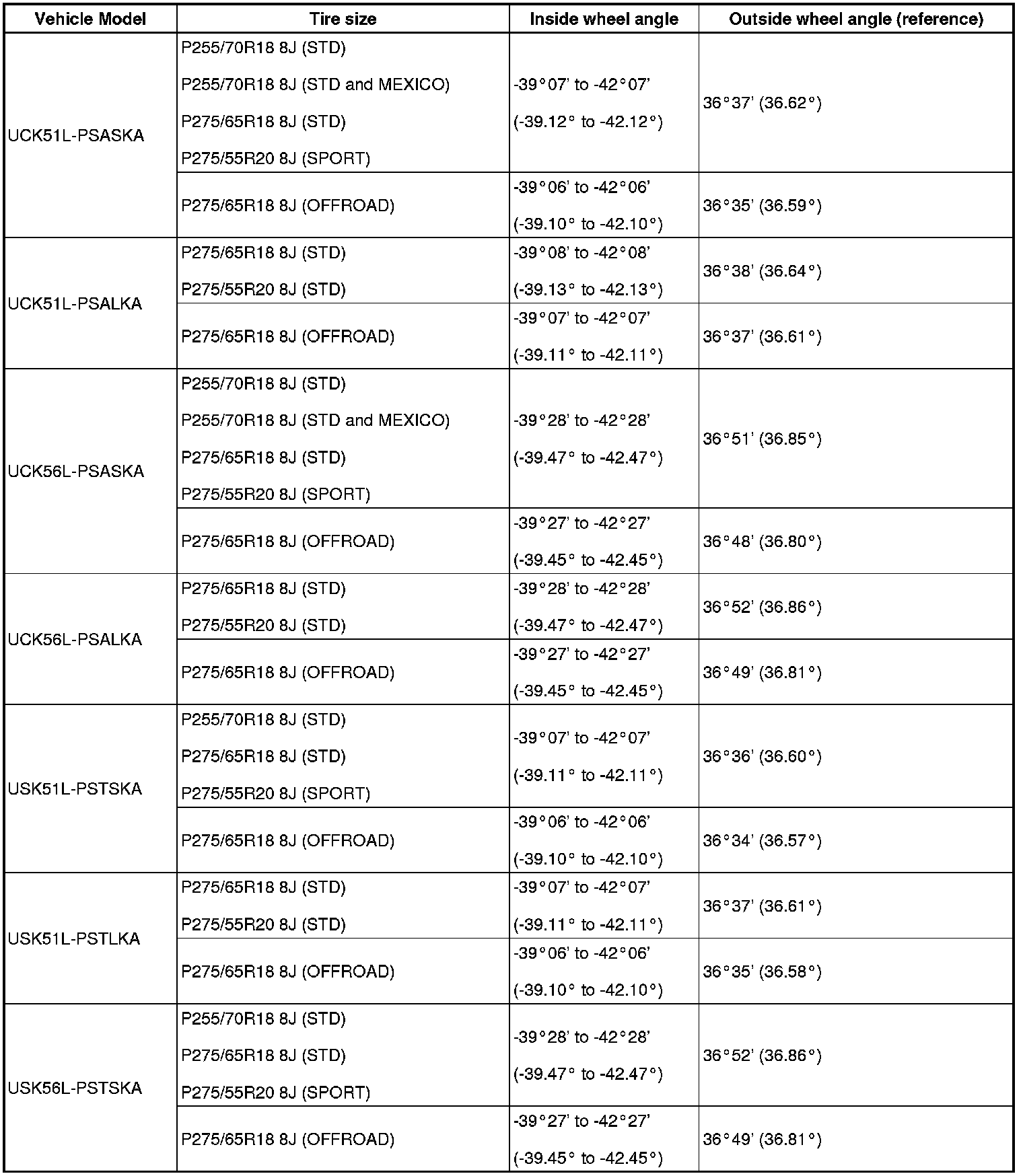

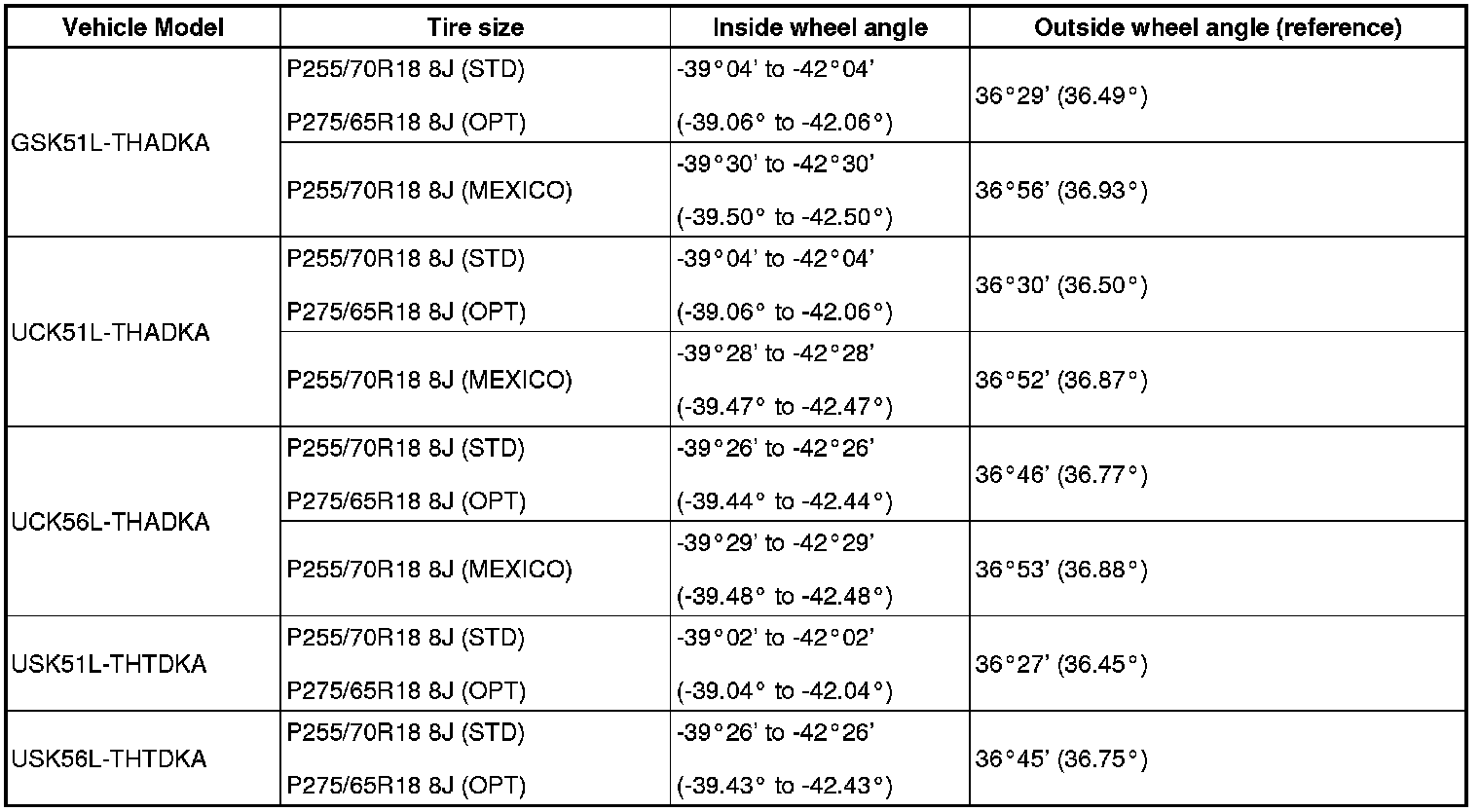

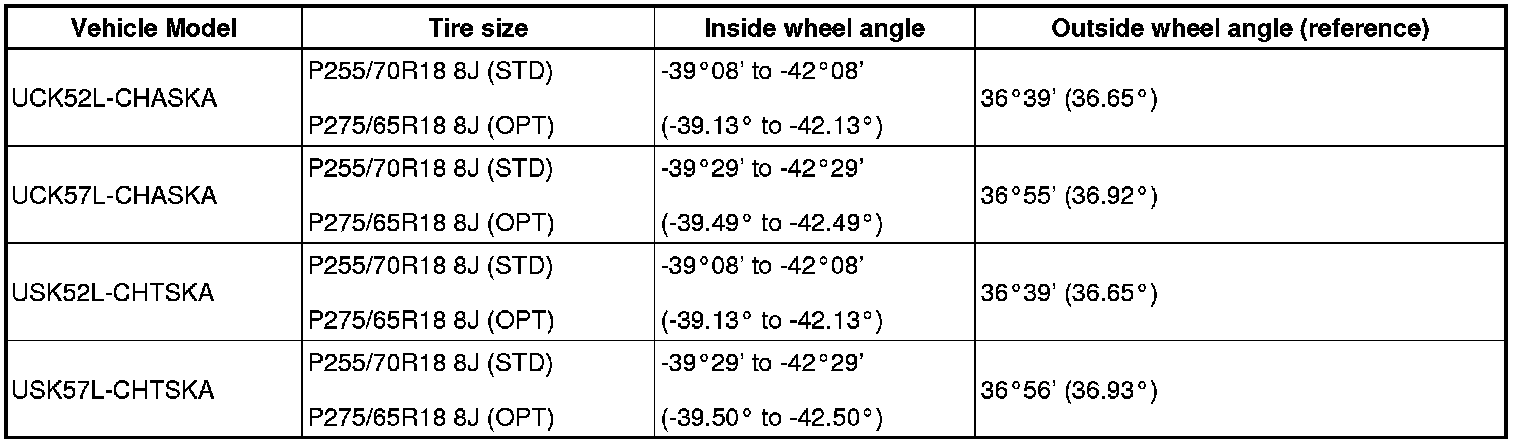

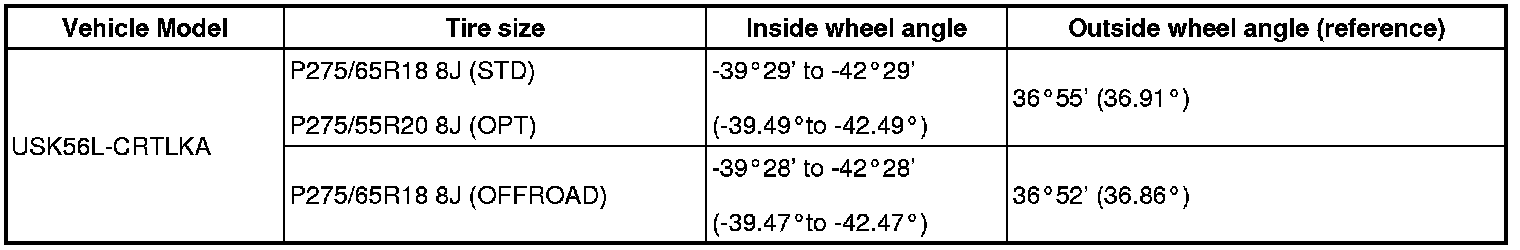

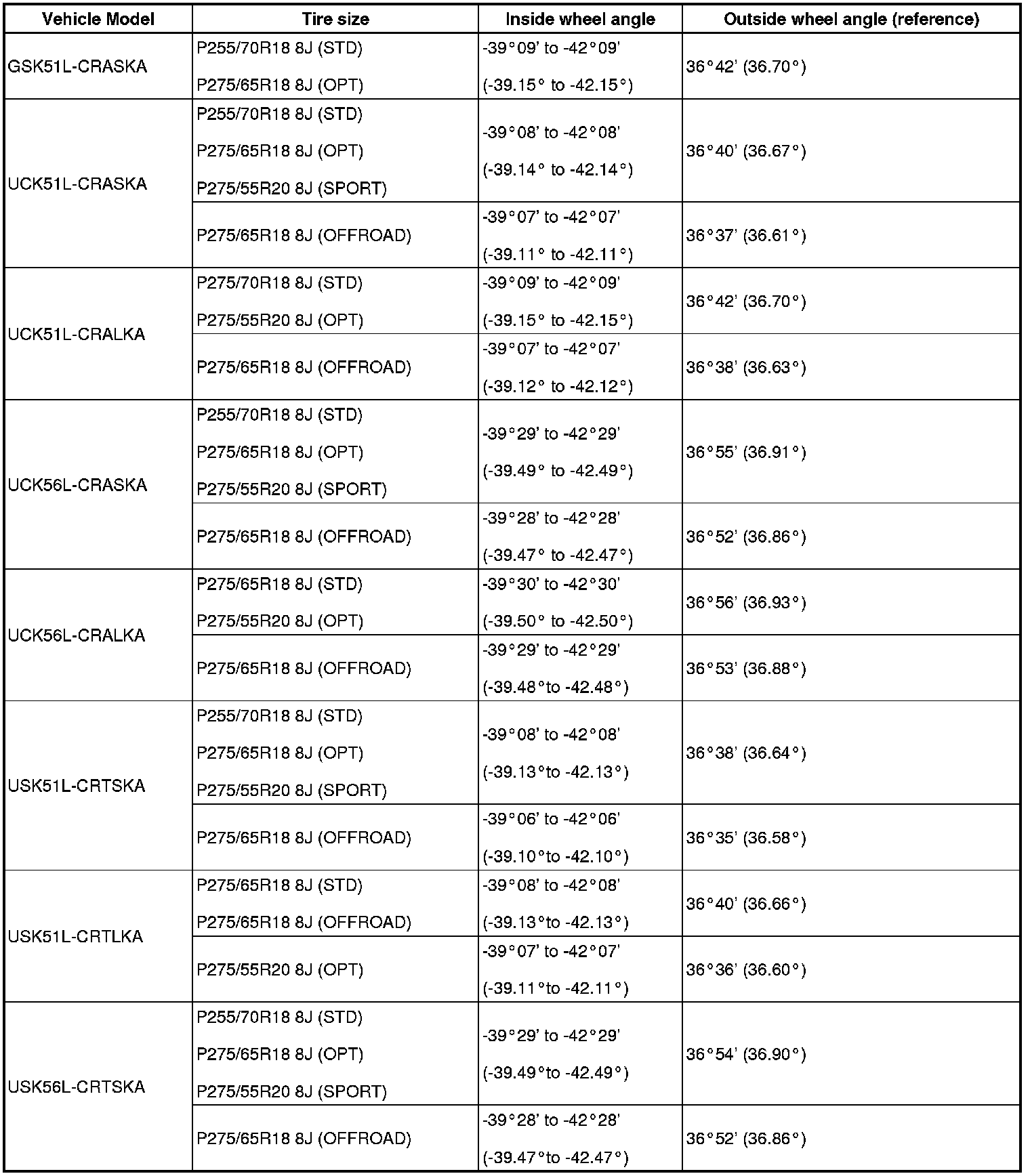

Standard wheel angle for Regular Cab of Standard Deck:

Standard wheel angle for Regular Cab of Long Deck:

Standard wheel angle for Double Cab of Standard Deck:

Standard wheel angle for Double Cab of Long Deck:

Standard wheel angle for CrewMax of standard deck:

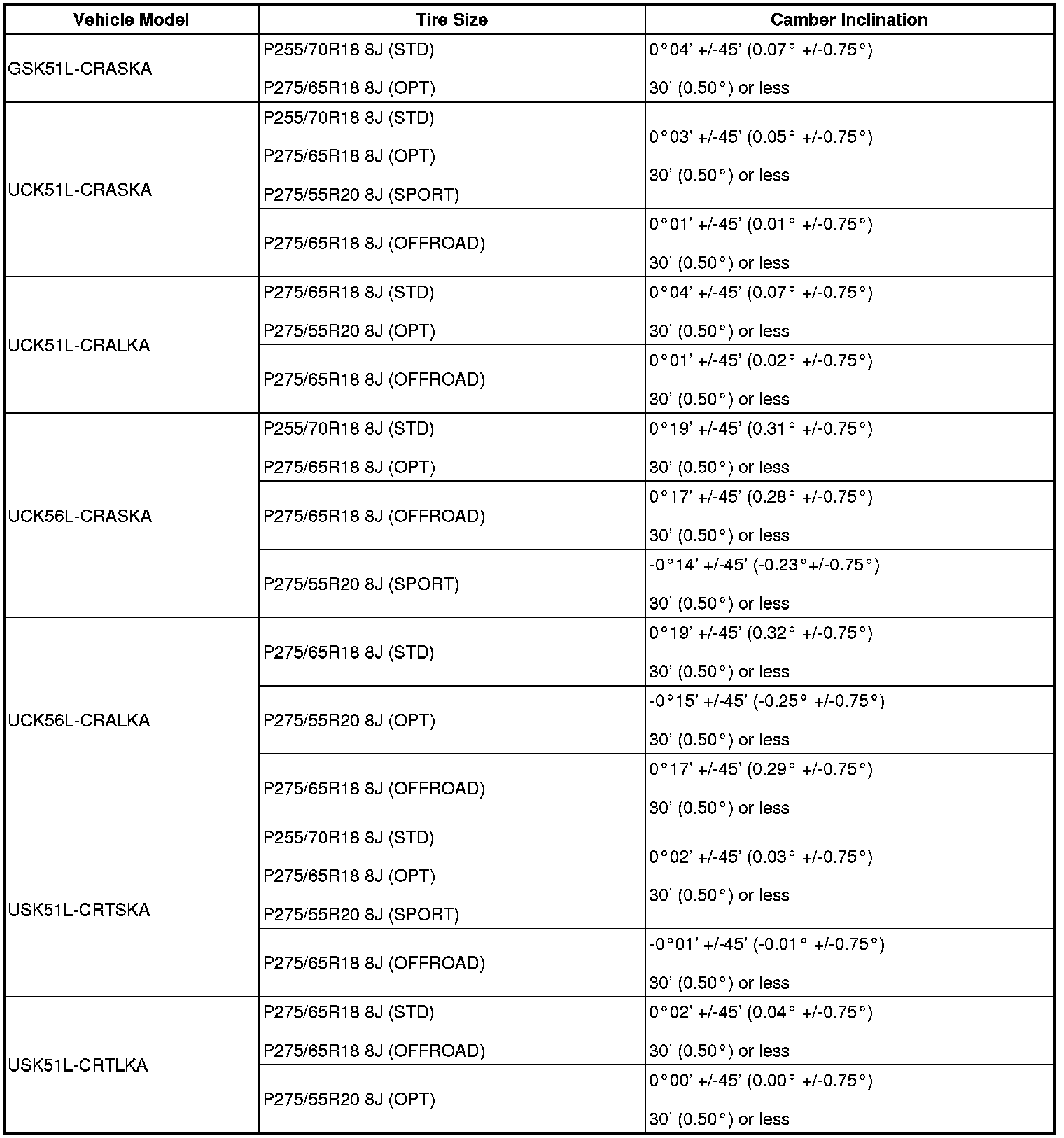

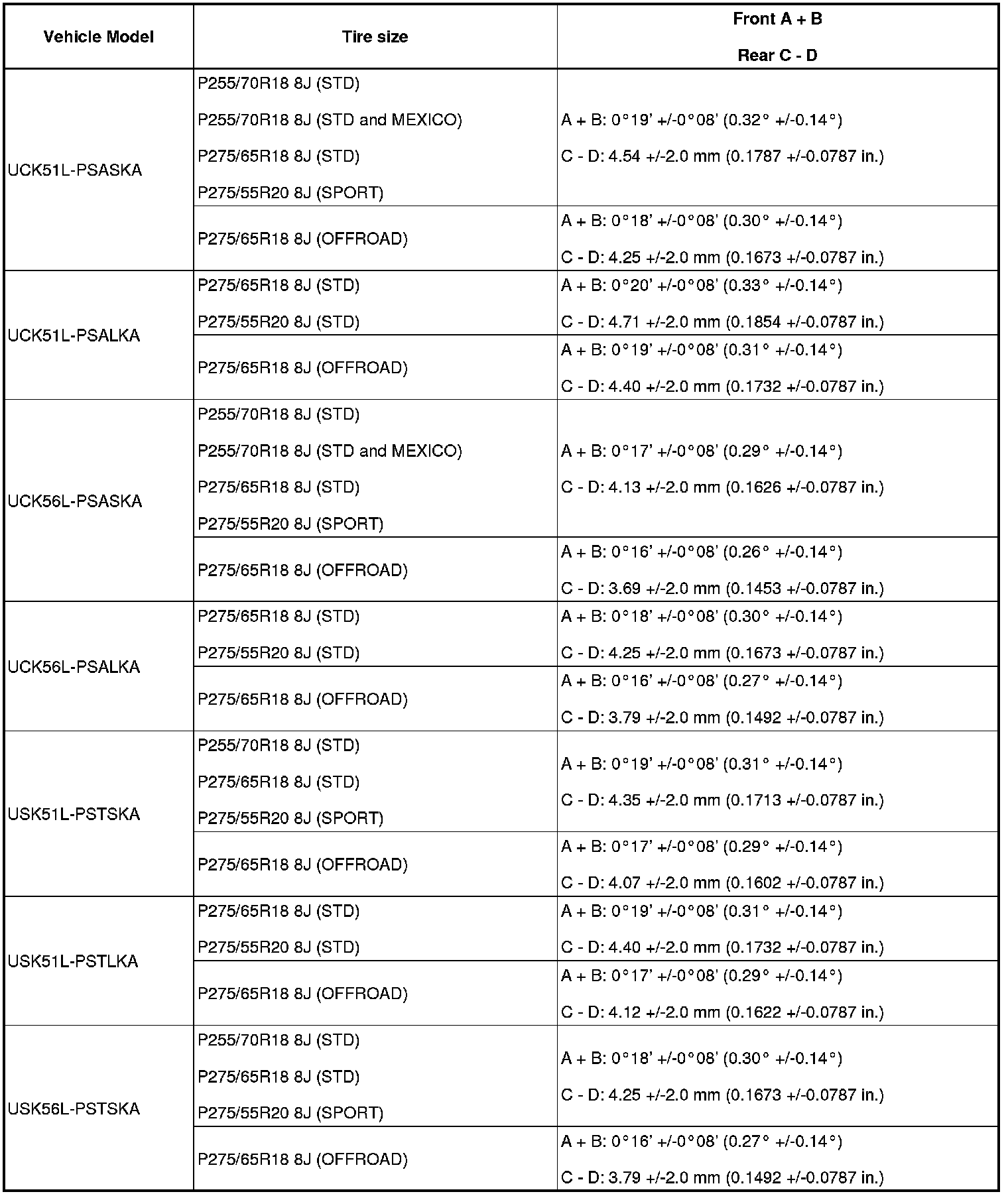

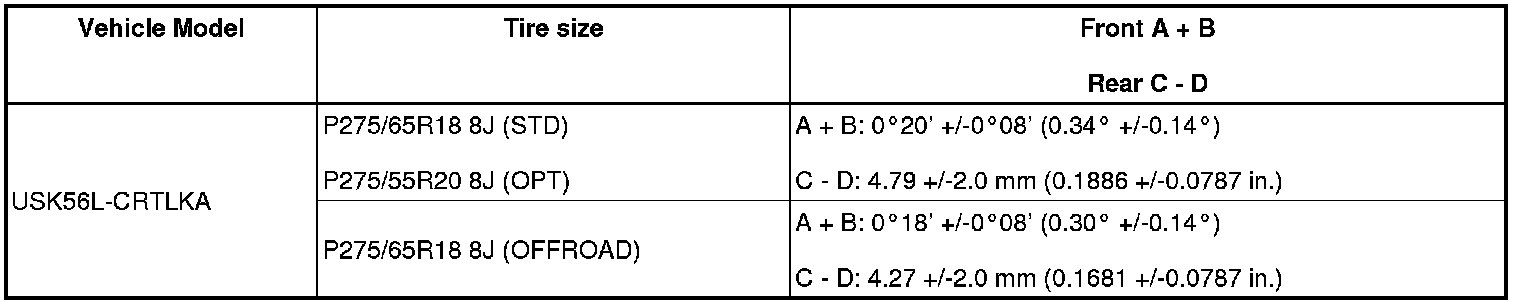

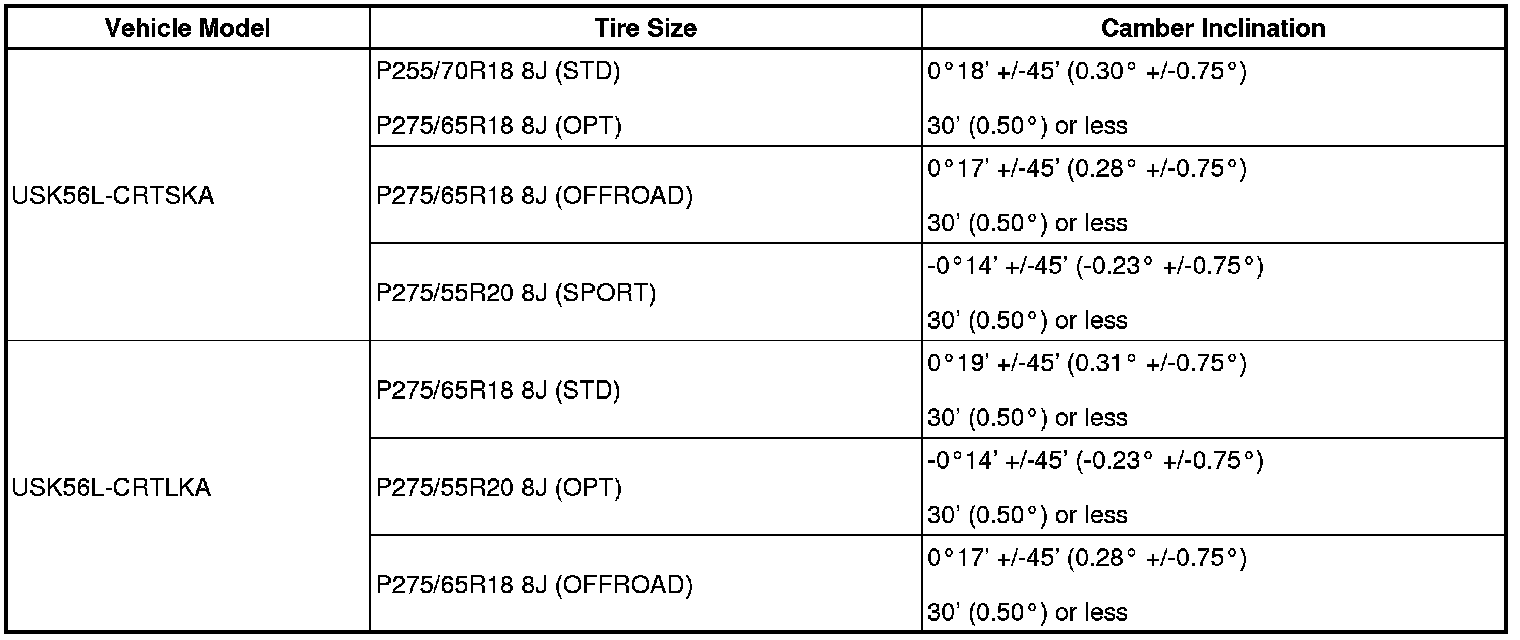

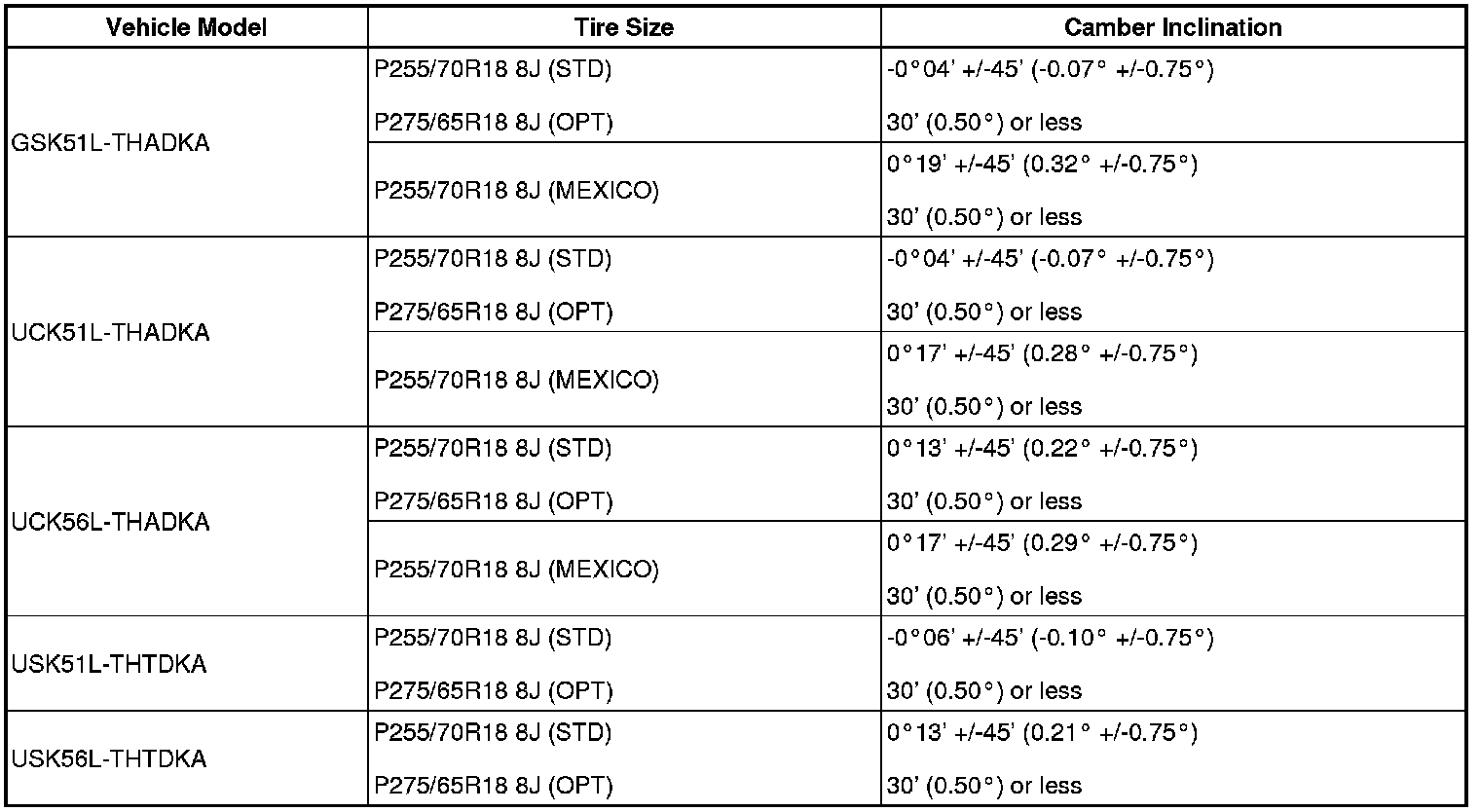

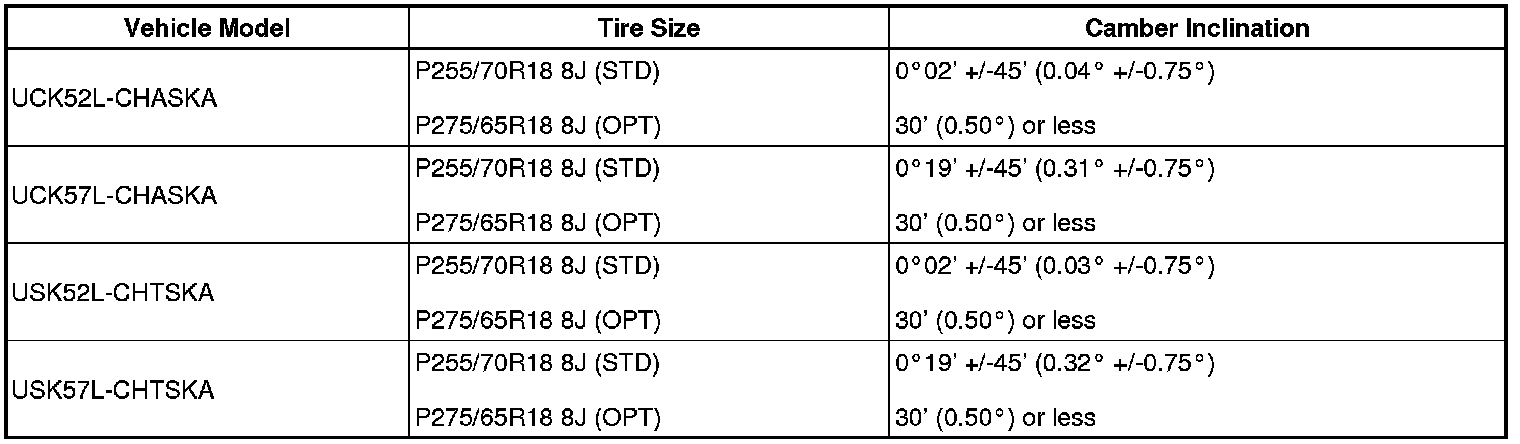

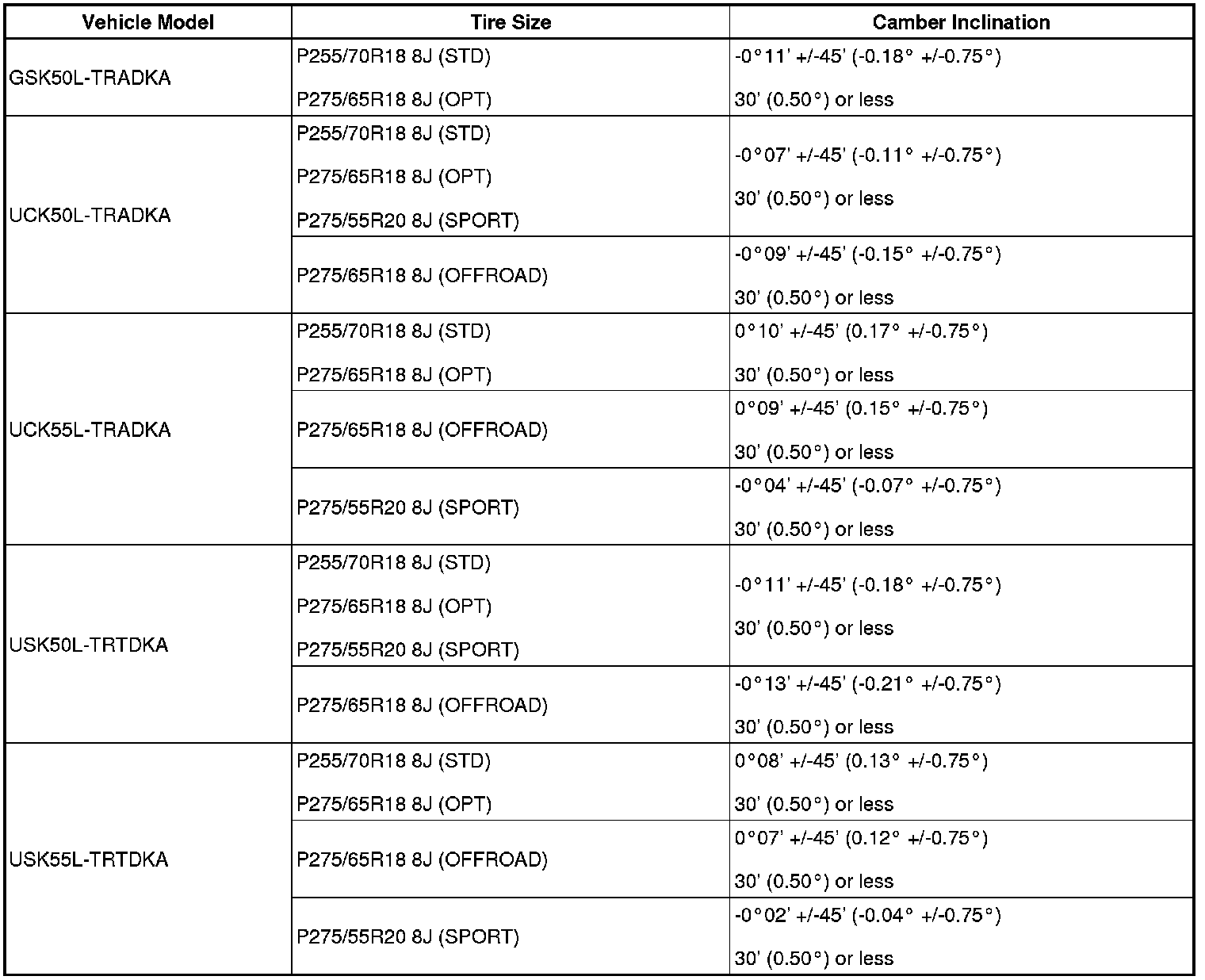

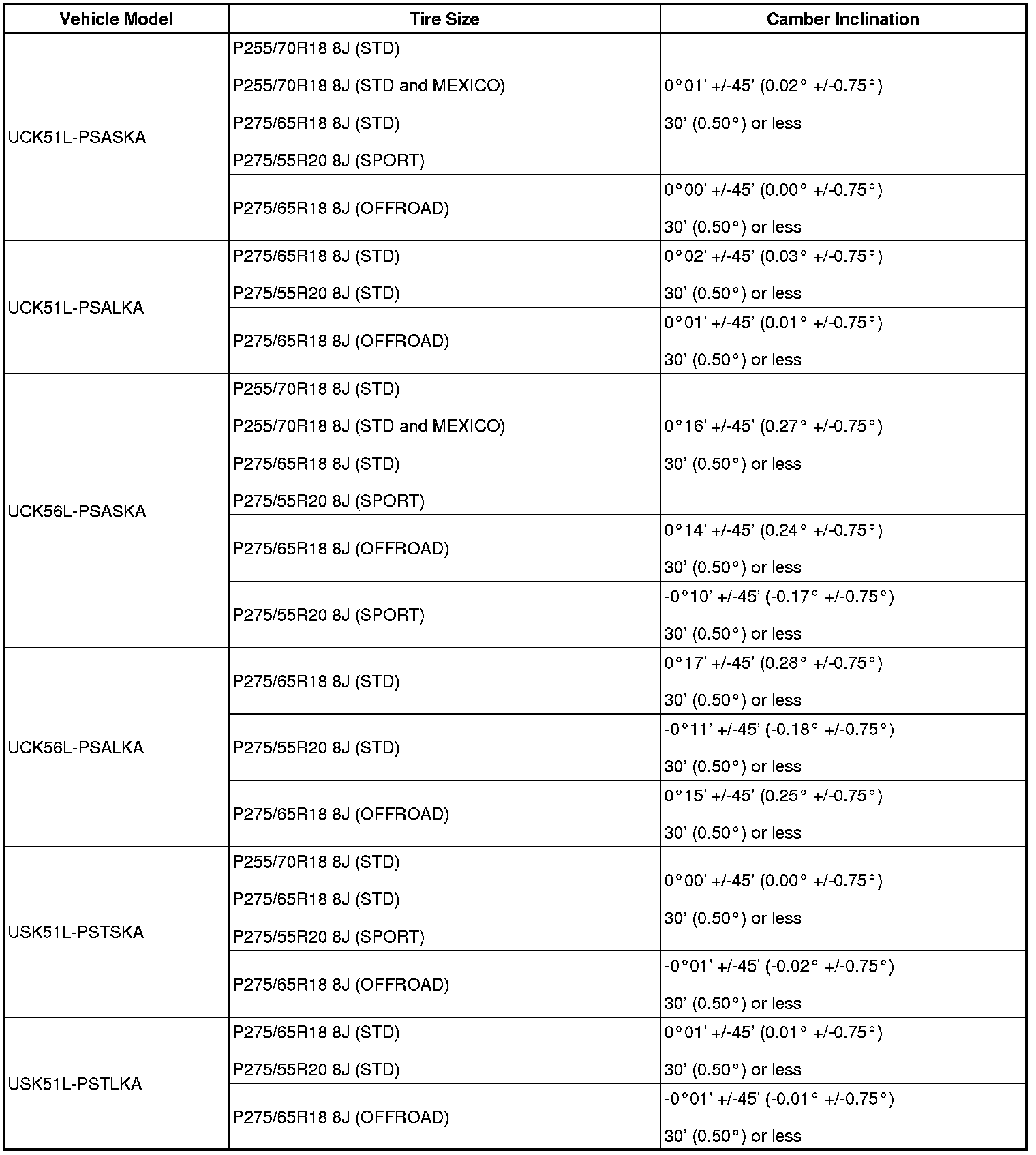

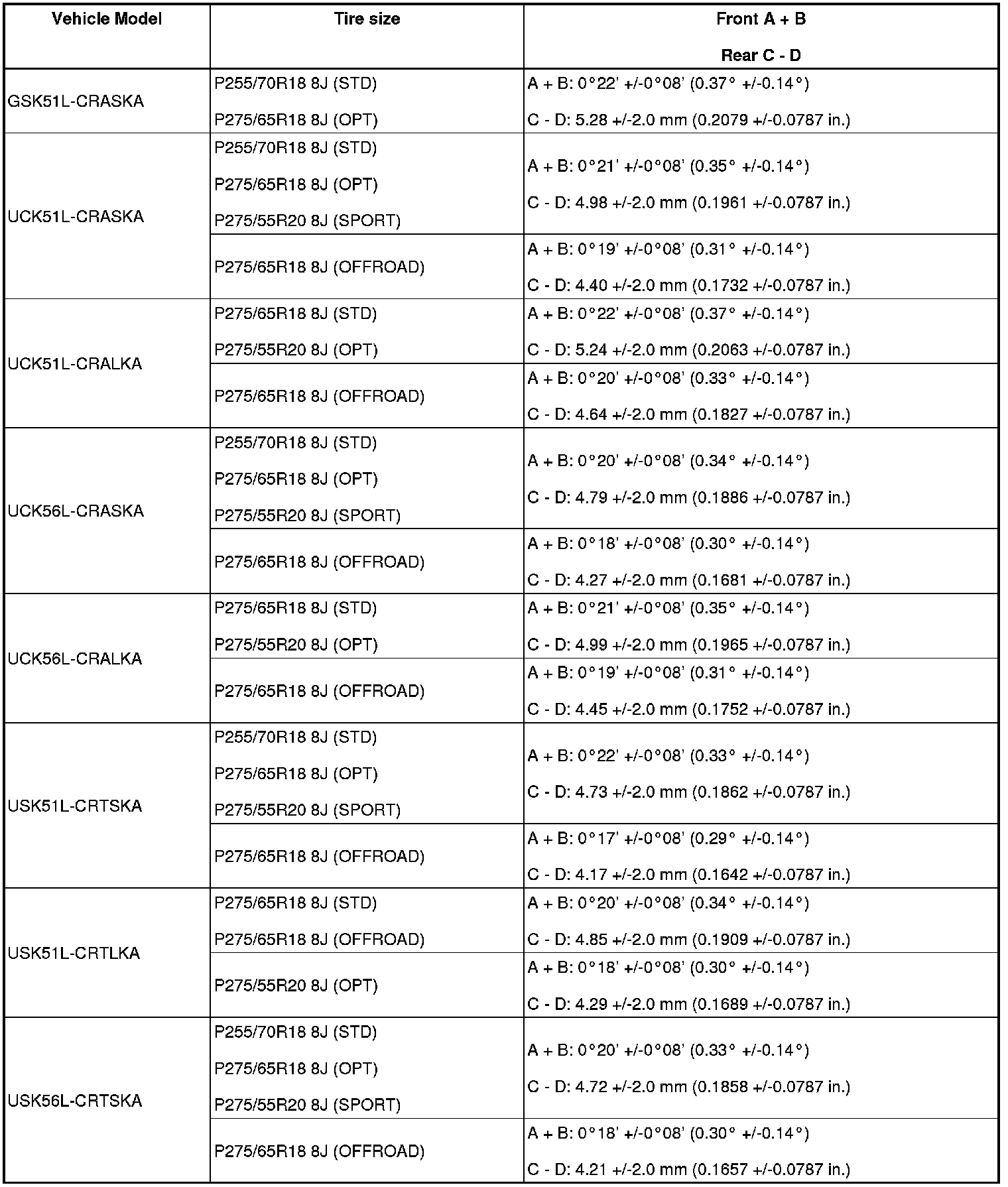

Standard camber inclination for Regular Cab of Standard Deck:

Standard camber inclination for Regular Cab of Long Deck:

Standard camber inclination for Double Cab of Standard Deck:

Standard camber inclination for Double Cab of Long Deck:

Standard camber inclination for CrewMax of standard deck:

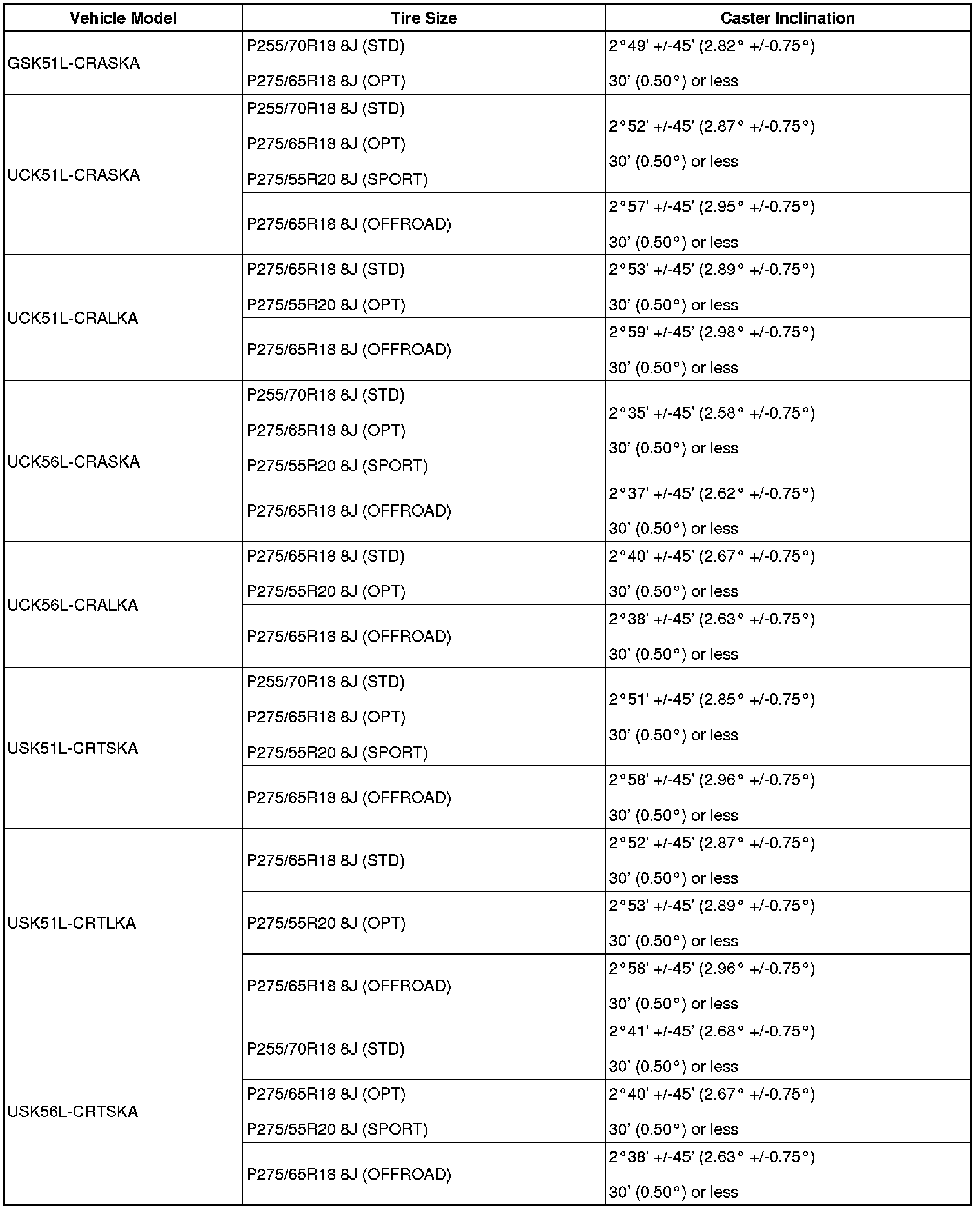

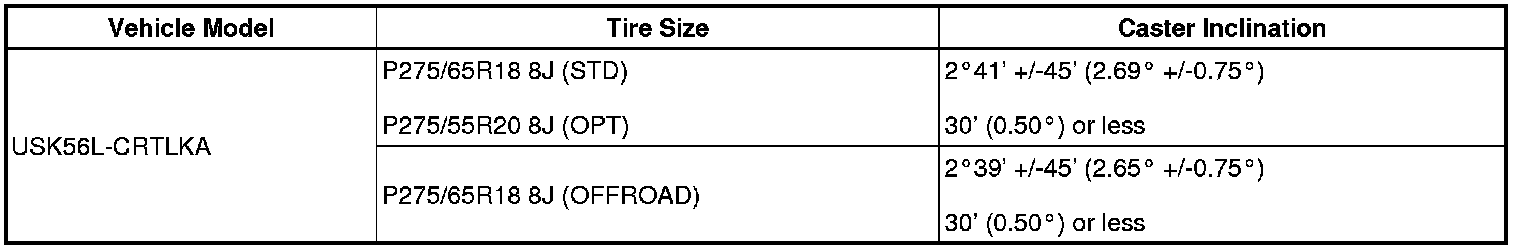

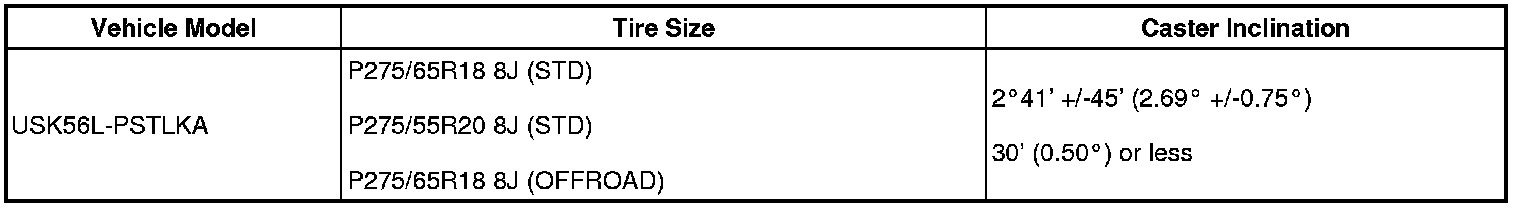

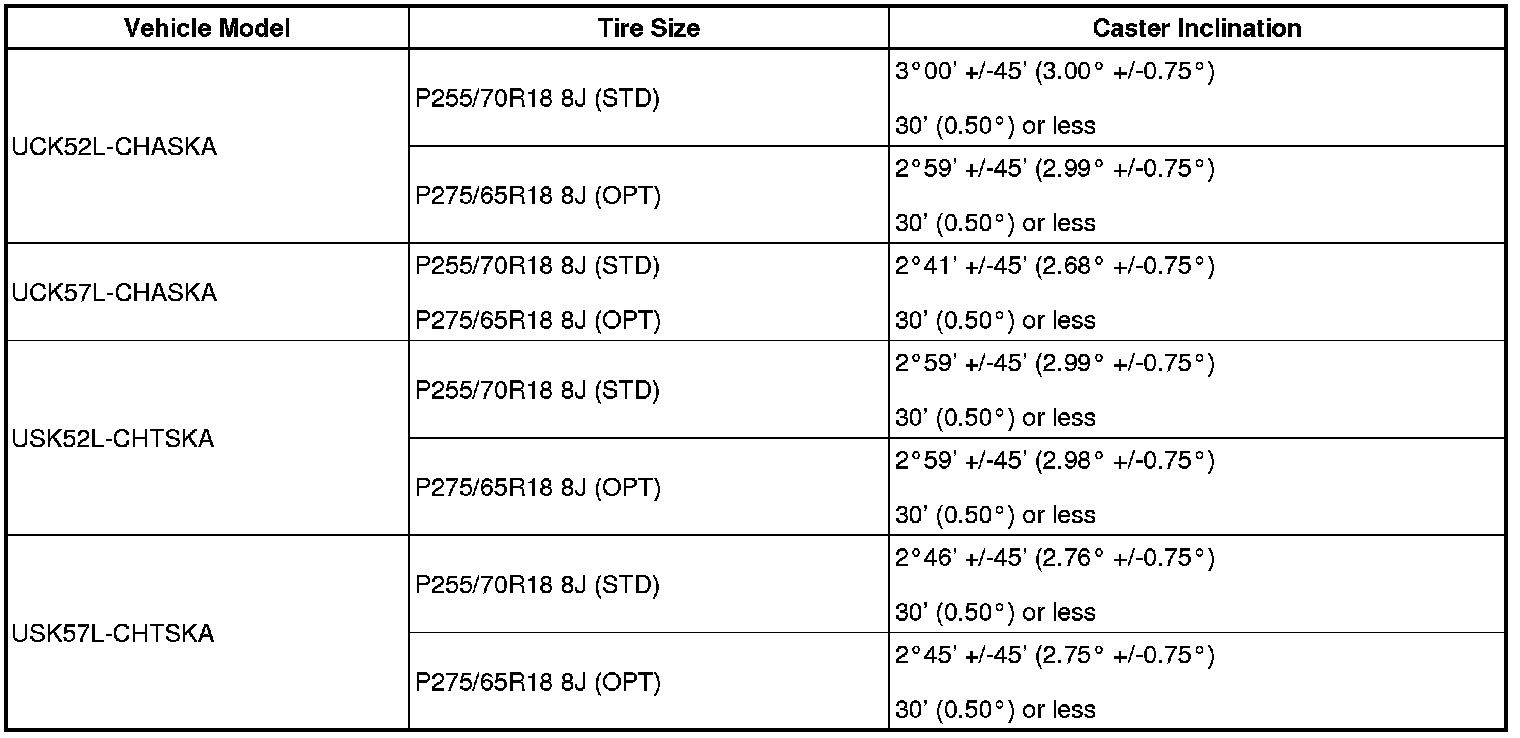

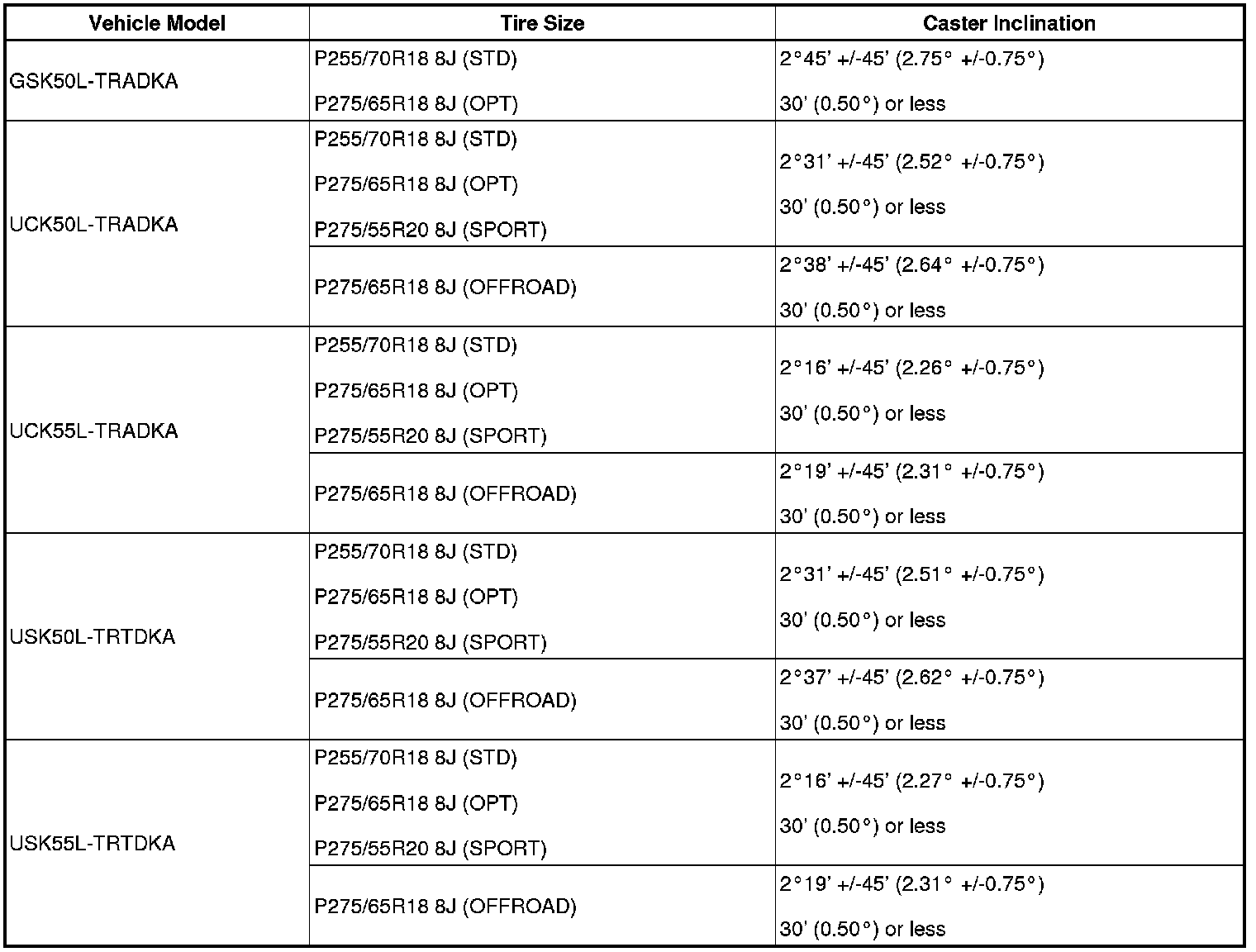

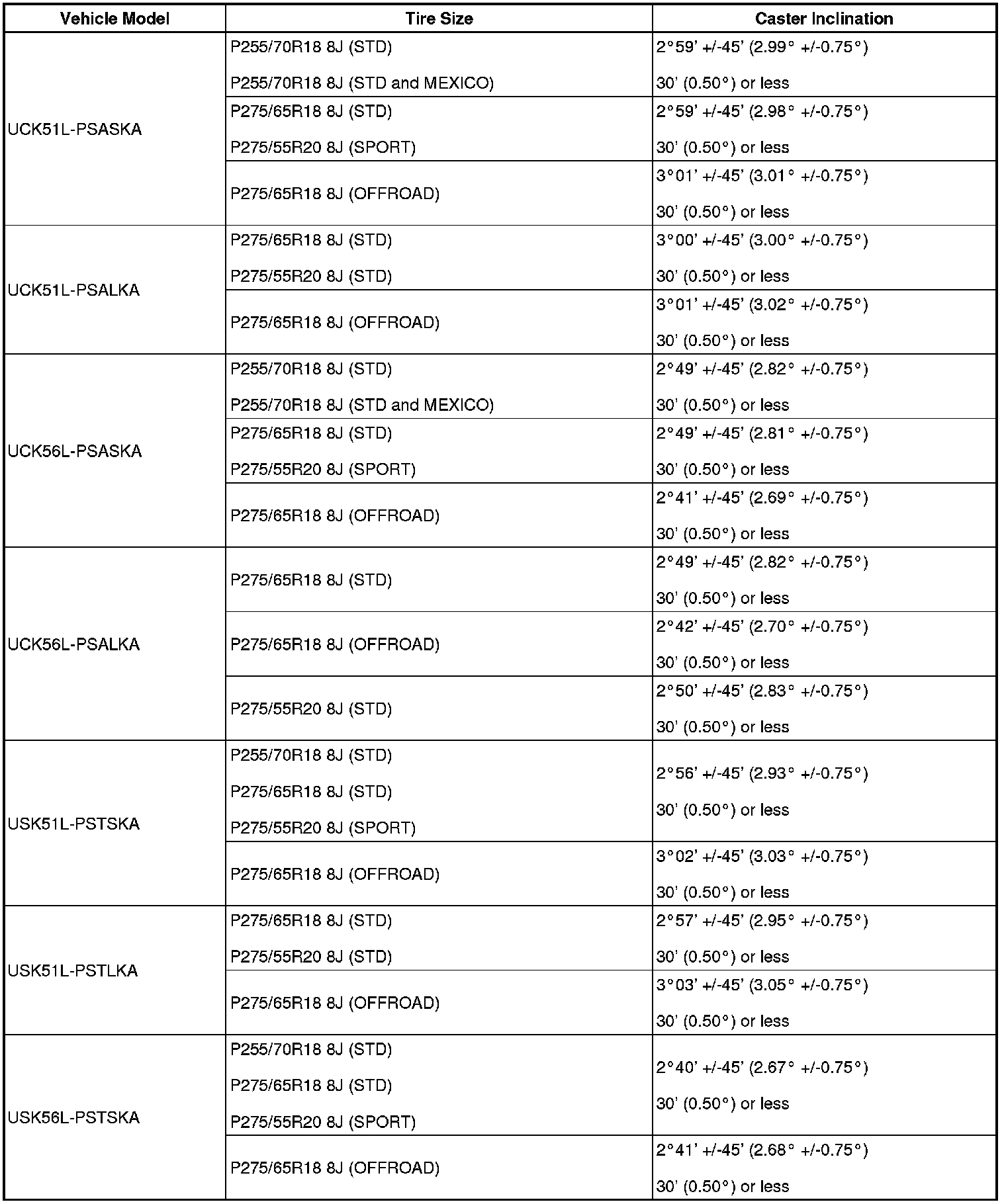

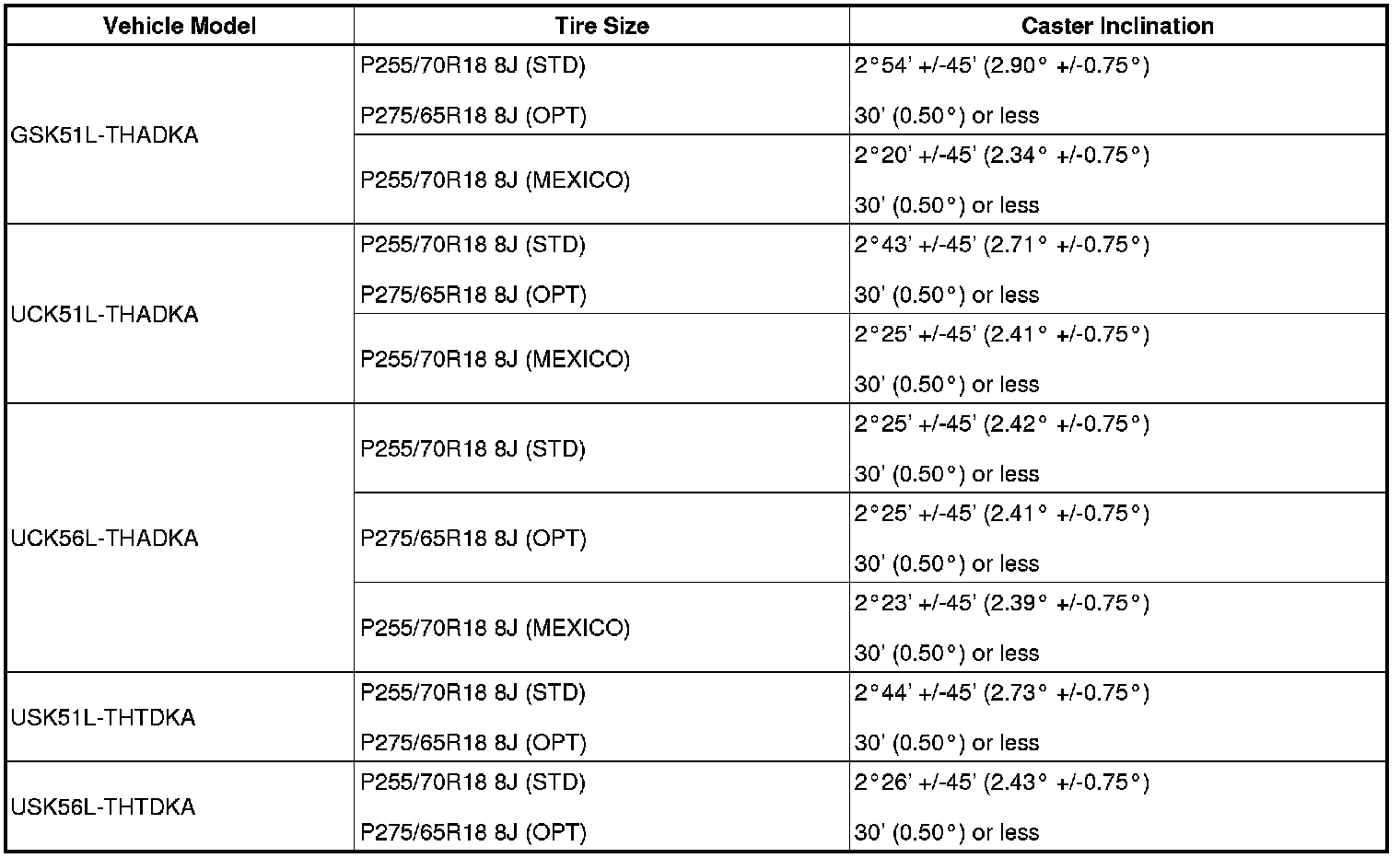

Standard caster inclination for Regular Cab of Standard Deck:

Standard caster inclination for Regular Cab of Long Deck:

Standard caster inclination for Double Cab of Standard Deck:

Standard caster inclination for Double Cab of Long Deck:

Standard caster inclination for CrewMax of standard deck:

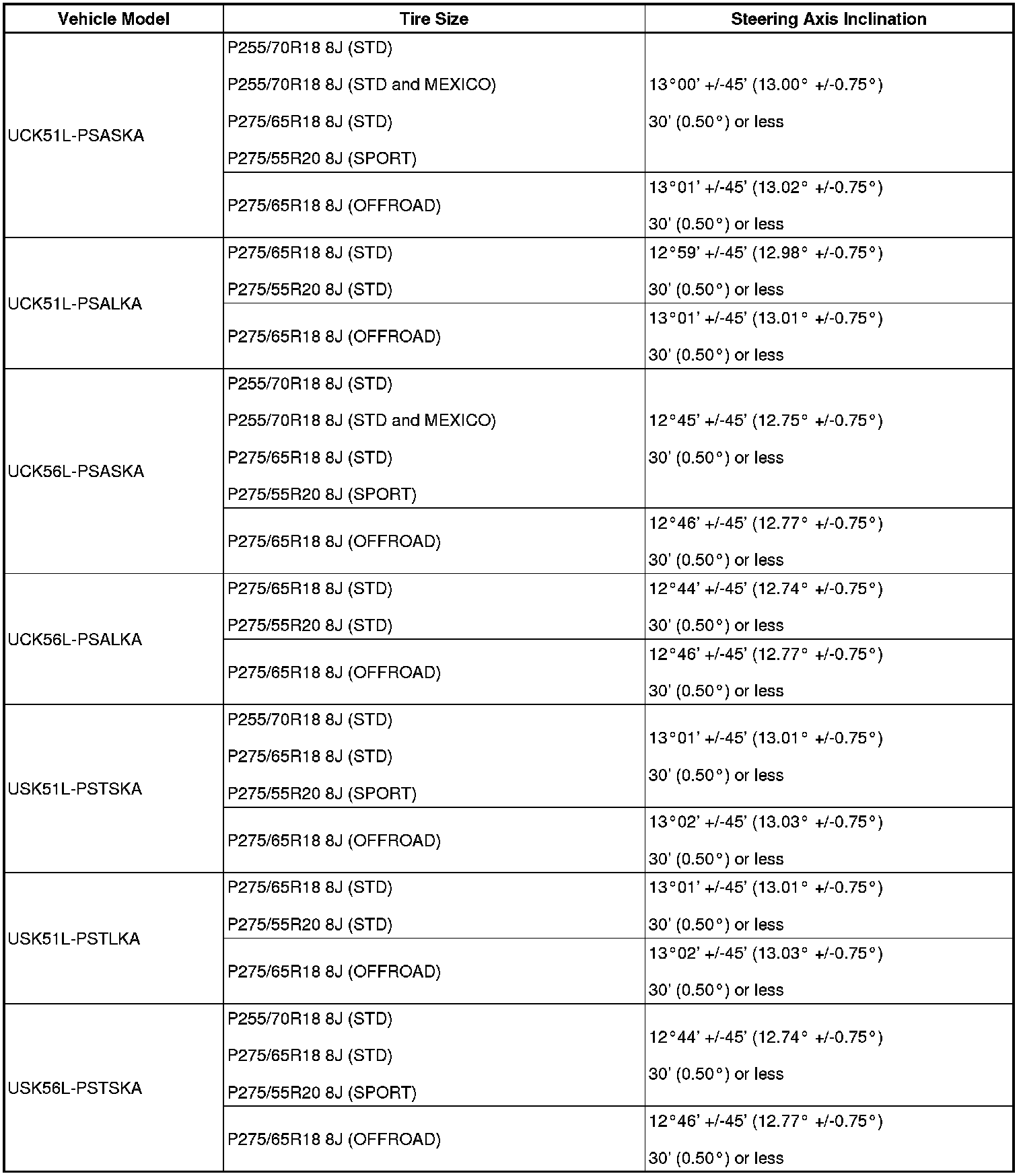

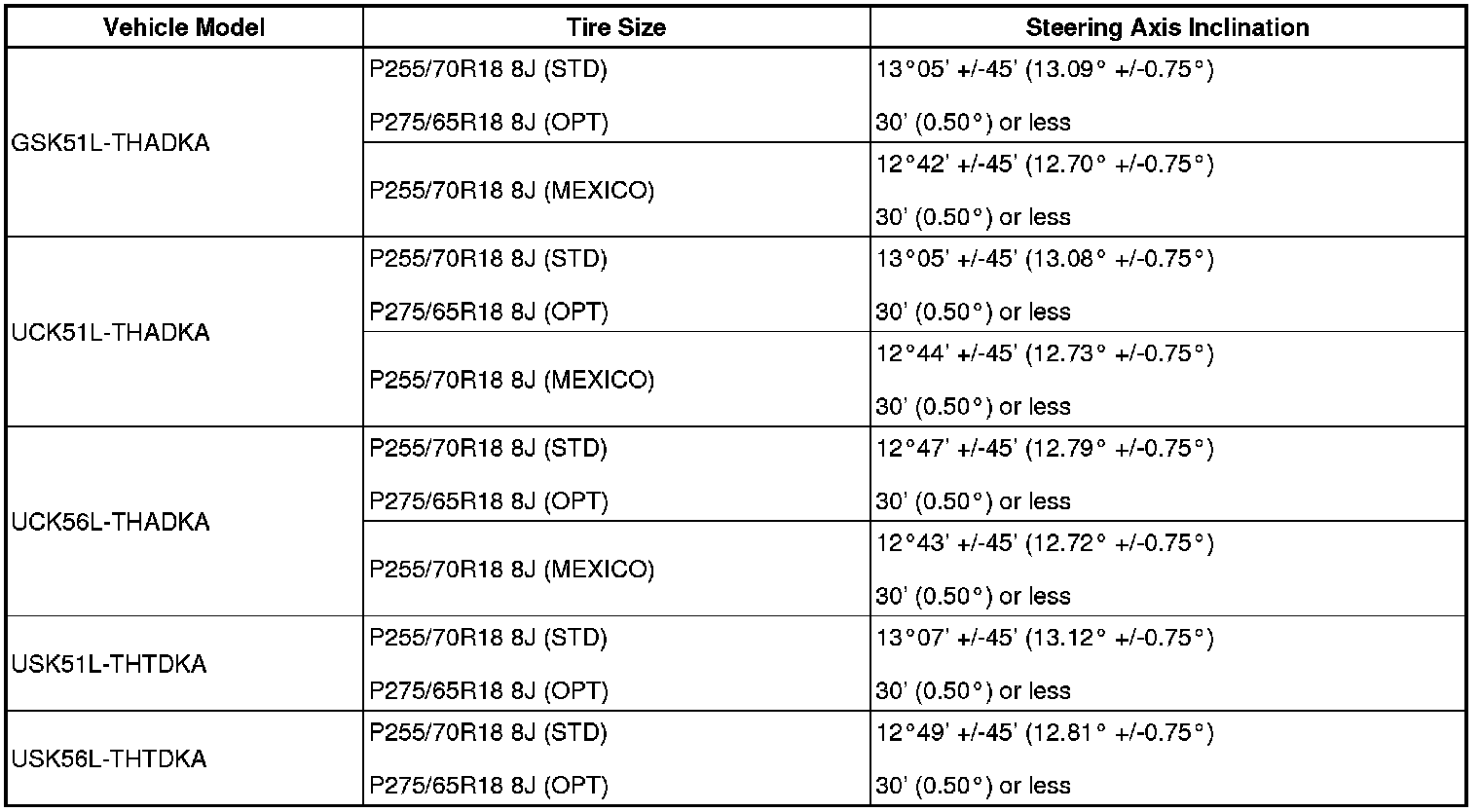

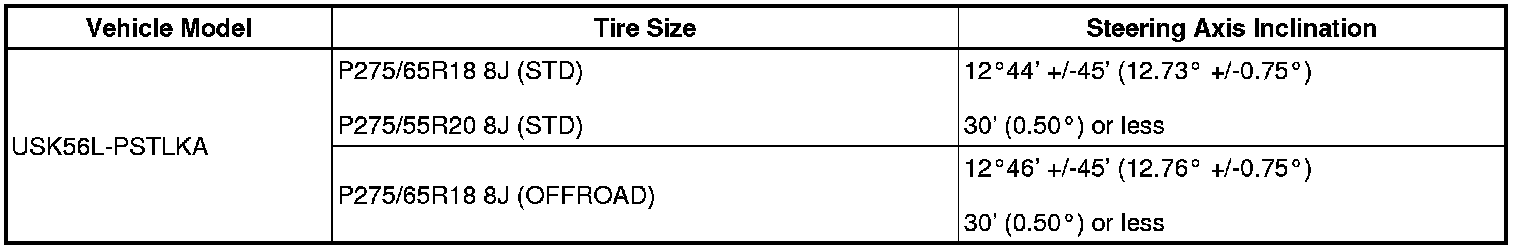

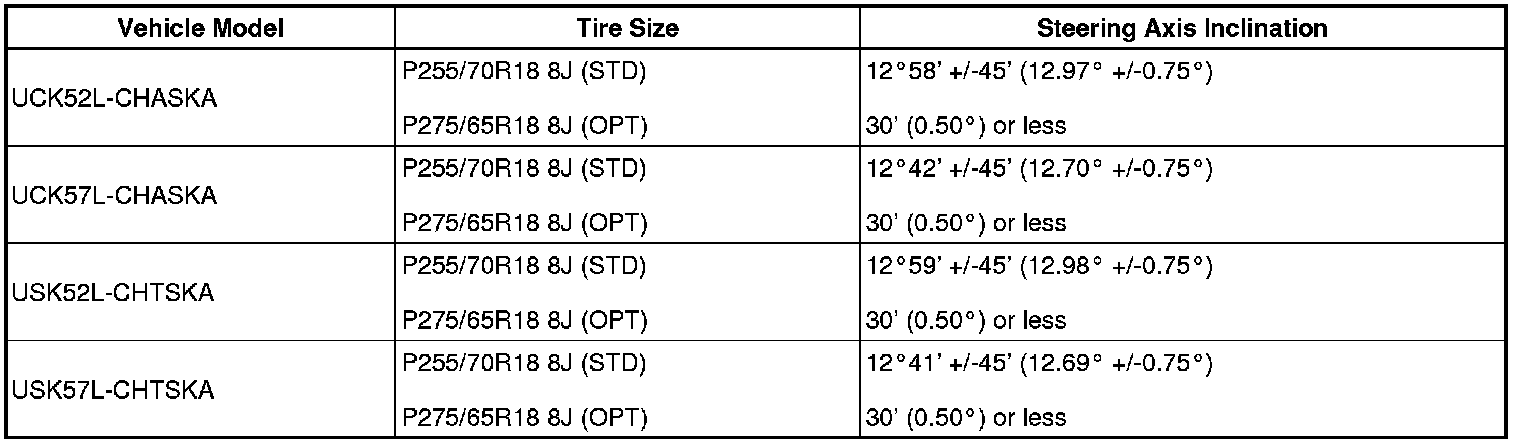

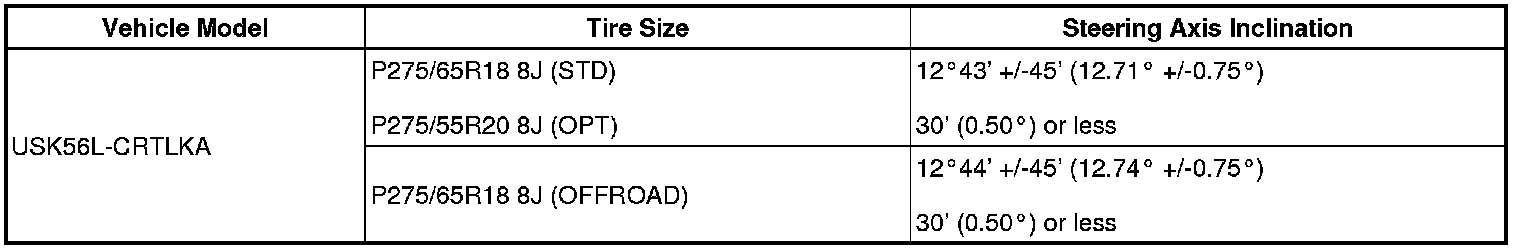

Standard steering axis inclination for Regular Cab of Standard Deck:

Standard steering axis inclination for Regular Cab of Long Deck:

Standard steering axis inclination for Double Cab of Standard Deck:

Standard steering axis inclination for Double Cab of Long Deck:

Standard steering axis inclination for CrewMax of standard deck:

Front suspension
