Installation

STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU (for Power Tilt and Power Telescopic Steering Column):

INSTALLATION





1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

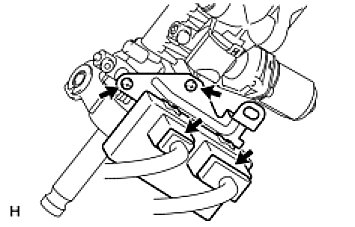

(a) Install the ECU with the 2 screws.
Torque: 1.5 Nm (15 kgf-cm, 13 in-lbf)
(b) Connect the 2 ECU connectors.
2. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY (Removal)

3. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD INSERT (Removal)

4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH (Removal)

5. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (Installation)





6. INSTALL LOWER STEERING COLUMN COVER

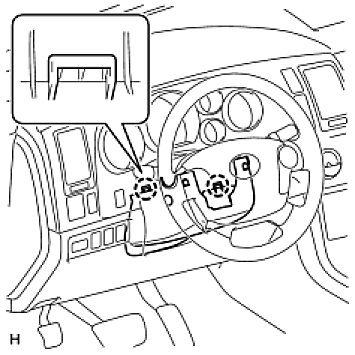

(a) Attach the 2 claws to install the steering column lower cover.
7. INSTALL UPPER STEERING COLUMN COVER

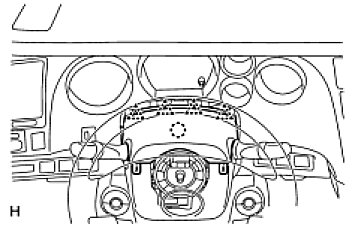

(a) Attach the claw to install the upper steering column cover.
(b) Attach the 4 clips to install the upper steering cover onto the instrument panel cluster finish panel.





(c) Install the 2 screws.
Torque: 2.0 Nm (20 kgf-cm, 18 in-lbf)

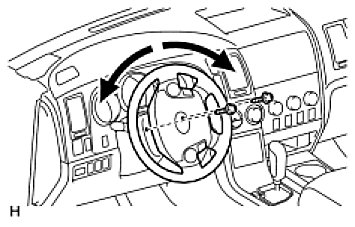

HINT: Turn the steering wheel to the right and left as necessary to install the 2 screws.

8. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light (Diagnosis System).
9. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
(a) Perform initialization (Repair Instruction - Initialization).

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.
