Removal

WINDSHIELD / WINDOWGLASS: BACK POWER WINDOW SWITCH:

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (Removal)

2. REMOVE COWL SIDE TRIM BOARD LH (Removal)

3. REMOVE INSTRUMENT SIDE PANEL LH (Removal)

4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH (Removal)

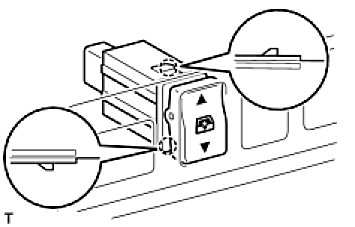

5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Back Window)
(a) Using a screwdriver, detach the 2 claws.

HINT: Tape the screwdriver tip before use.

(b) Remove the regulator switch.
