Installation

2UZ-FE IGNITION: IGNITION COIL AND SPARK PLUG:

INSTALLATION

1. INSTALL SPARK PLUG
(a) Using a 16 mm plug wrench, install the 8 spark plugs.
Torque: 18 Nm (178 kgf-cm, 13 ft-lbf)

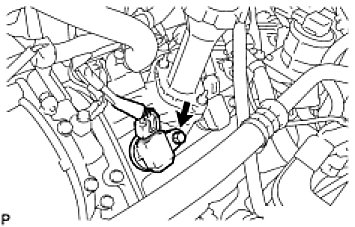

2. INSTALL IGNITION COIL ASSEMBLY





(a) Install the 8 ignition coils with the 8 bolts.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
(b) Connect the 8 ignition coil connectors.
3. INSTALL AIR SWITCHING VALVE ASSEMBLY (for Bank 1) (Installation)

4. INSTALL NO. 3 AIR TUBE (Installation)

5. INSTALL NO. 2 AIR HOSE (Installation)

6. INSTALL FRONT FENDER APRON SEAL REAR LH (Installation)

7. INSTALL AIR SWITCHING VALVE ASSEMBLY (for Bank 2) (Installation)

8. INSTALL NO. 2 AIR TUBE (Installation)

9. CONNECT NO. 2 AIR INJECTION SYSTEM HOSE (Installation)

10. CONNECT NO. 1 WATER BY-PASS PIPE (Installation)

11. INSTALL FRONT FENDER APRON SEAL REAR RH (Installation)

12. INSTALL AIR CLEANER HOSE ASSEMBLY (Installation)

13. INSTALL THROTTLE BODY COVER ASSEMBLY (Installation)
