Removal








2UZ-FE IGNITION: IGNITION COIL AND SPARK PLUG:

REMOVAL

1. REMOVE THROTTLE BODY COVER ASSEMBLY (Removal)

2. REMOVE AIR CLEANER HOSE ASSEMBLY (Removal)

3. REMOVE FRONT FENDER APRON SEAL REAR LH (Removal)

4. REMOVE NO. 2 AIR HOSE (Removal)

5. REMOVE NO. 3 AIR TUBE (Removal)

6. REMOVE AIR SWITCHING VALVE ASSEMBLY (for Bank 1) (Removal)

7. REMOVE FRONT FENDER APRON SEAL REAR RH (Removal)

8. DISCONNECT NO. 1 WATER BY-PASS PIPE (Removal)

9. DISCONNECT NO. 2 AIR INJECTION SYSTEM HOSE
10. REMOVE NO. 2 AIR TUBE (Removal)

11. REMOVE AIR SWITCHING VALVE ASSEMBLY (for Bank 2) (Removal)

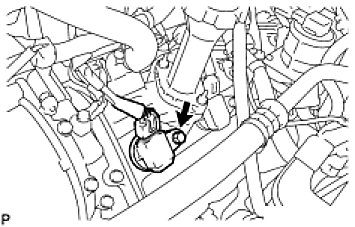

12. REMOVE IGNITION COIL ASSEMBLY





(a) Disconnect the 8 ignition coil connectors.
(b) Remove the 8 bolts and pull out the 8 ignition coils.
13. REMOVE SPARK PLUG
(a) Using a 16 mm plug wrench, remove the 8 spark plugs.
