Installation

3UR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR:

INSTALLATION

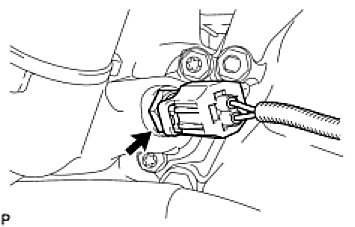

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
(a) Install a new gasket to the sensor.
(b) Install the sensor.
Torque: 20 Nm (200 kgf-cm, 14 ft-lbf)
(c) Connect the sensor connector.
2. ADD ENGINE COOLANT (Service and Repair)

3. INSPECT FOR COOLANT LEAK (Testing and Inspection)

4. INSTALL V-BANK COVER SUB-ASSEMBLY (Installation)

5. INSTALL NO. 1 ENGINE UNDER COVER (Replacement)
