Removal







1GR-FE CHARGING: GENERATOR: REMOVAL

REMOVAL

1. REMOVE V-BANK COVER Removal
2. REMOVE ENGINE NO. 1 UNDER COVER SUB-ASSEMBLY
(a) Remove the 4 bolts and engine under cover sub-assembly No. 1.
3. REMOVE FAN AND GENERATOR V BELT Removal
4. REMOVE BATTERY
5. REMOVE GENERATOR ASSEMBLY
(a) Disconnect the wire harness.

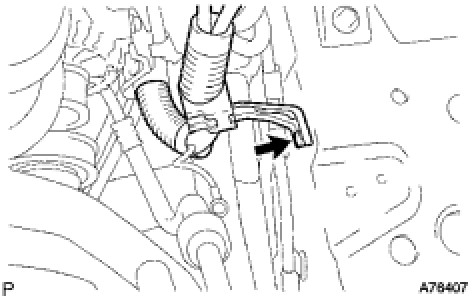

(1) Remove the bolt and wire harness stay.
(2) Disconnect the connector from the generator assembly.
(3) Remove the terminal cap and nut.
(4) Disconnect the wire harness from the terminal B.

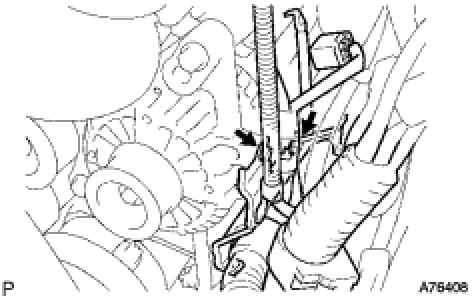

(b) Remove the 2 bolts and wire harness clamp bracket from the generator assembly.

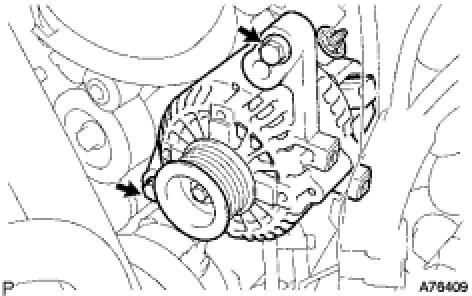

(c) Remove the 2 bolts and generator assembly.
