Water Pump Torque and Sequence

WATER PUMP ASSEMBLY

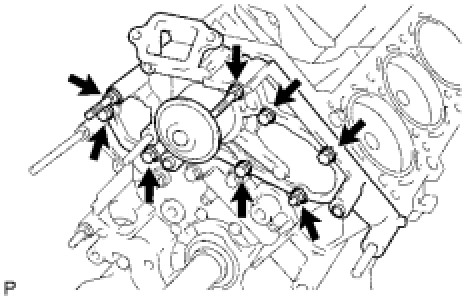

Install a new gasket and water pump with the 5 bolts, 2 stud bolts and nut. Uniformly tighten the bolts, stud bolts and nut in several steps.
Bolt - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Stud bolt and nut - Torque 18 Nm (184 kgf-cm, 13 ft-lbf)

Use bolts 35 mm (1.38 in.) in length
