Power Door Lock Control System

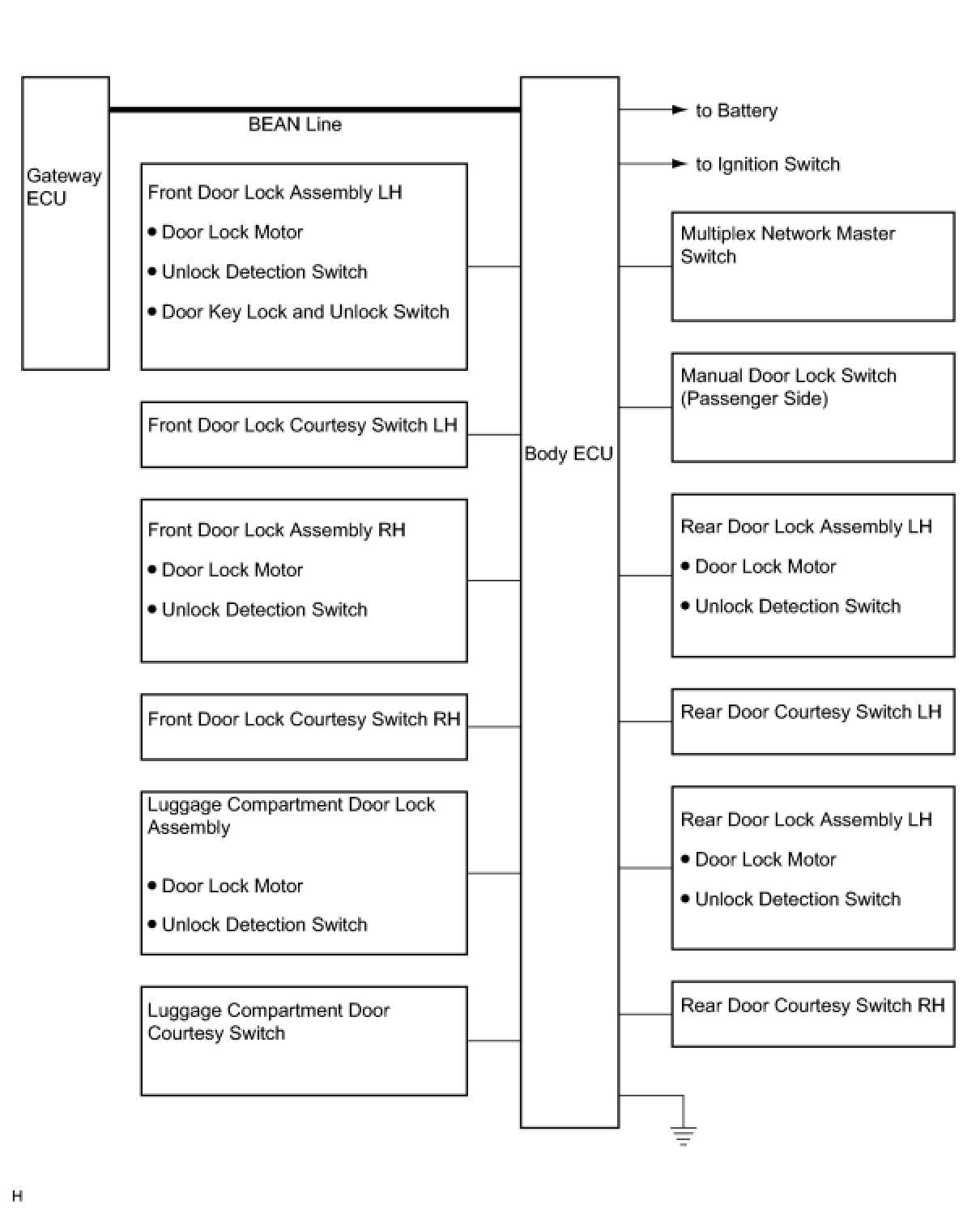

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM





DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. POWER DOOR LOCK SYSTEM DESCRIPTION
(a) The power door lock system locks/unlocks all doors with a one-touch operation.
- The door control switch of the master switch assembly on the driver's door and the driver's door key cylinder send lock/unlock request signals to each door lock motor assembly through the body ECU.
- The door control switch on the passenger door sends lock/unlock request signals to each door lock motor assembly through the body ECU.

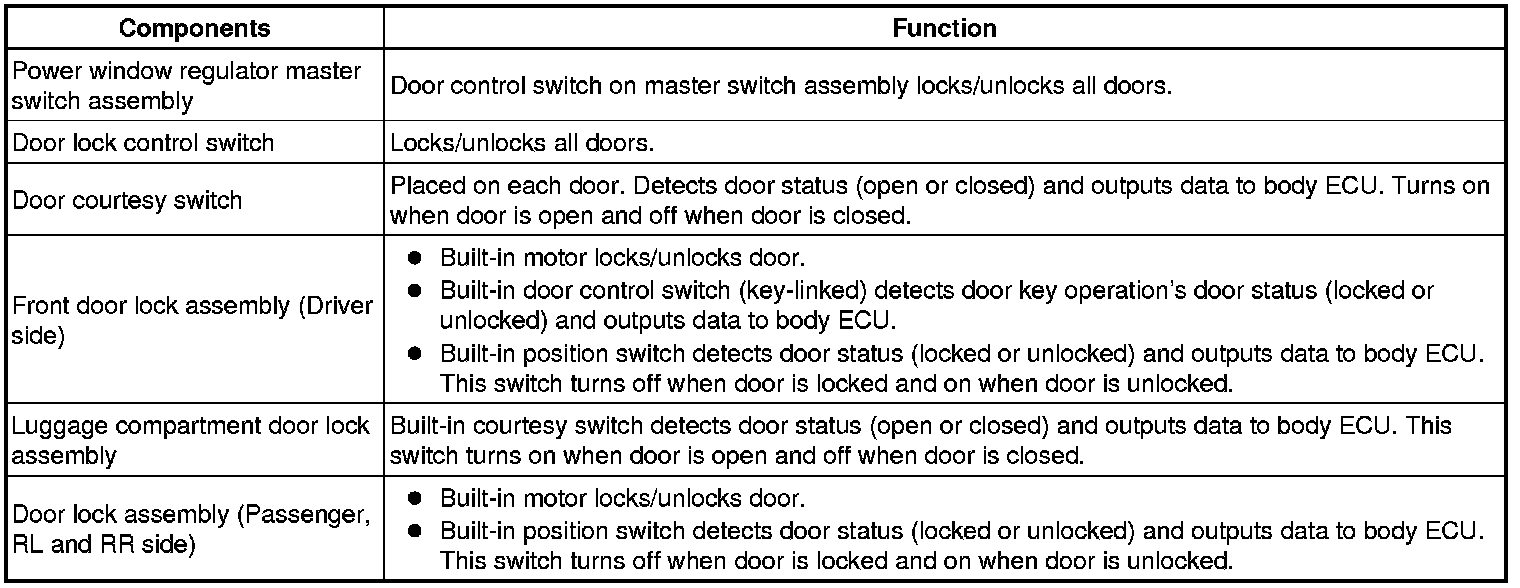

(b) Components

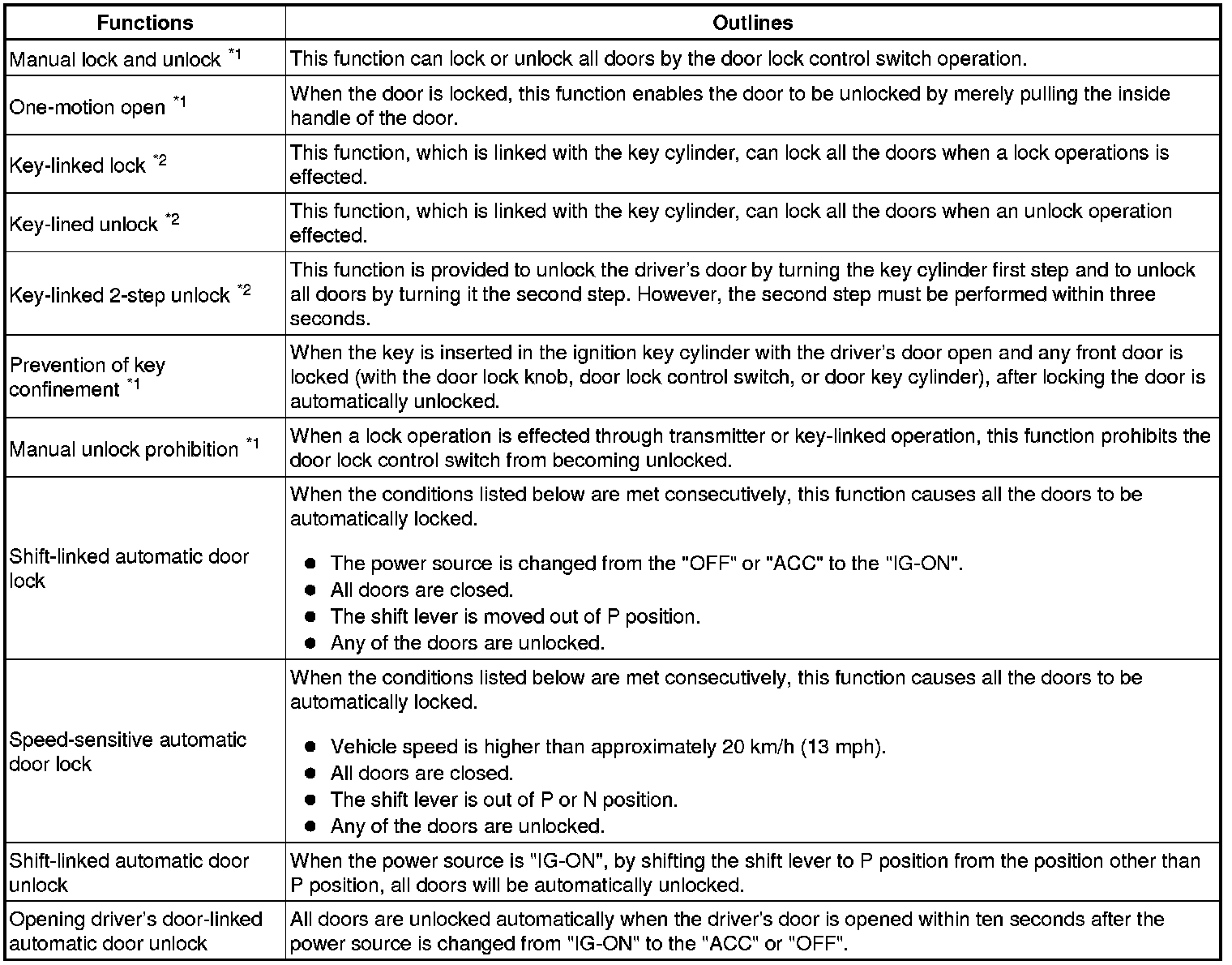

(c) Functions





*1: Only for driver and front passenger doors
*2: Only for driver door
