Reassembly

AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

REASSEMBLY

1. INSTALL COOLER EVAPORATOR SUB-ASSEMBLY NO.1





(a) sufficiently apply compressor oil (ND-OIL 8) to 2 new O-rings and the fitting surface. Install the 2 O-rings to the cooler evaporator No.1.
Compressor oil :
ND-OIL 8 or equivalent
2. INSTALL COOLER EXPANSION VALVE





(a) Using a hexagon wrench 4 mm, install the cooler expansion valve with the 2 hexagon bolts.
Torque: 3.5 Nm (35 kgf-cm, 30 in-lbf)
3. INSTALL EVAPORATOR TEMPERATURE SENSOR

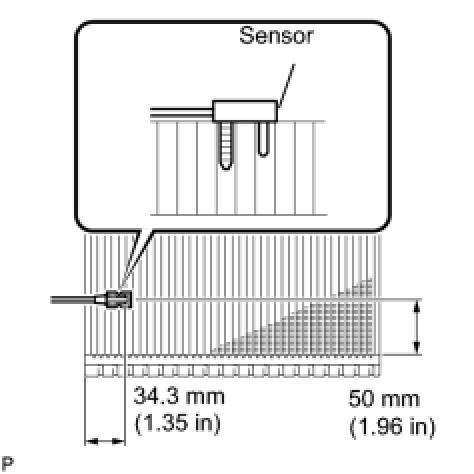

(a) If using a mew evaporator:
Install the sensor to the evaporator as shown in the illustration.

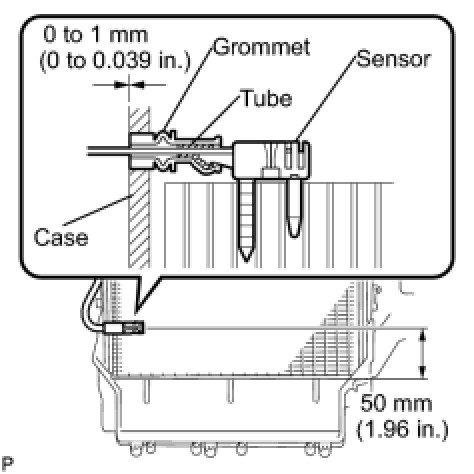

(b) If reusing the evaporator:
(1) Install the sensor to the evaporator as shown in the illustration.

HINT: Completely cover the tube with the grommet.
